TXW100048N2 is a 10.1-inch 16:10 aspect ratio full-color TFT LCD display with a resolution of 1280 * 800, IPS full view high-definition high brightness display, wide temperature range of -20+70 working temperature, and high brightness display of 350cd/m ². The operating voltage of TXW100048N2 high brightness PCAP TFT LCD screen is 10.8V (maximum value). The voltage range of VDD is 8.8V to 10.8V. TXW100048N2 adopts a single screen design with a brightness of 350cd/m ². If you want to use it as a vertical mode or increase brightness, please contact us for more technical support.
| ITEM | Sandard value | Unit |
| Model Number | TXW100048N2 | |
| size | 10.1 inch | Inch |
| LCD Type | Normally Black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 1280*3RGB(H)X800(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.0565*0.1695 | mm |
| Active area | 216.96(H) * 135.6(V) | mm |
| Mechanical OutlineSize(W*H*T) | 229.46*149.1*2.6 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | EK79202 | - |
| LCM interface | LVDS 8 BIT Interface | - |
| Lcm pin n count | 40 | |
| Backlight leds | 39 | pcs |
| Backlight current | 120 | mA |
| Backligh voltage | 8.8-10.8 | V |
| operating temperature | -20+70 | ℃ |
| storage temperature | -30+80 | ℃ |
| Lumens degrees | 350 | cd/㎡ |
Industrial Grade TFT Display 10.1 Inch LVDS 1280x800 Pixels 40 Pins Product Drawing

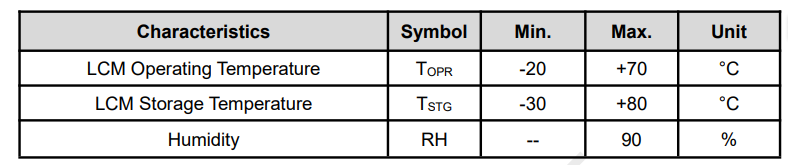

Absolute Maximum Rating
Note 1: If Ta below 50ºC, the maximal humidity is 90%RH, if Ta over
50ºC, absolute humidity should beless than 60%RH.
Note 2: The response time will be extremely slow when the operating
temperature is around -10℃, andthe back ground will become darker
at high temperature operating.
TFT Dc Characteristics
Note 1: Be sure to apply VDD and Vgl to the LCD first, and then
apply VgH.
Note 2: VDD setting should match the signals output voltage
ofcustomer's system board.
LCM Pin Description:
Industrial Grade TFT Display 10.1 inch LVDs 1280x800 Pixels 40 Pins Product lmage
Customizable touch screen
PCAP touch technology provides fast and sensitive response, as well as professional level reliability. The Tianxianwei projection capacitive touch screen is designed specifically for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LcDs), which is an integrated embedded solution that helps simplify supply chain and assembly.
