| Brand Name : | TXWEI |
| Model Number : | TXW700120B0-HDMI |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Delivery Time : | 16 |
| Payment Terms : | L/C TT D/P |
| Supply Ability : | 10000pcs |
About this item SFTO1190GX-7161AN
The 7-inch TFT LCD display features the following key specifications:
Screen Size: The diagonal measurement of 7 inches makes it suitable for various applications, including industrial displays, handheld devices, and portable equipment.
Resolution: With a resolution of 280*1424, the display is optimized
for wide-screen applications, providing good clarity and detail,
although it may not be as high as modern displays in terms of pixel
density. The unique resolution ratio can be beneficial for specific
UI layouts and graphics.
Brightness: A brightness level of 500 nits ensures that the display
is bright enough for use in various lighting conditions, including
outdoor environments. This level of brightness is advantageous for
readability and visibility.
HDMI Interface: The use of the HDMI interface is common in modern
displays as it allows for high-speed data transfer between the
display and the controller, which is beneficial for reducing
latency and improving overall performance.
This type of display could serve a wide variety of applications thanks to its balanced specifications of size, resolution, brightness, and interface. When selecting a display for a specific project, it's essential to consider how these parameters align with the intended application and user requirements.
| No. | Item | Specification | Unit |
| 1 | Panel Size | 7.0 ” | inch |
| 2 | Number of Pixels | 280*1424 | pixels |
| 3 | Active Area | 33.6(H) x 170.88(V) | mm |
| 4 | Pixel Pitch | 0.1432(H) X 0.1432(V)x RGB | mm |
| 5 | Outline Dimension | 38.2(W) ×181.47(H) ×3.45(T) | mm |
| 6 | Number of Colors | 16.7M | - |
| 7 | Display Mode | Transmission mode, normally black | - |
| 8 | Viewing Direction | Full viewing | - |
| 9 | Display Format | RGB vertical stripe | - |
| 10 | Surface Treatment | Glare | - |
| 11 | Interface | HDMI | - |
| 12 | Backlight | White LED | - |
| 13 | Operation Temperature | -30~80 | ℃ |
| 14 | Storage Temperature | -30~80 | ℃ |
| 15 | voltage | 5v | g |
Mechanical Drawing
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -20 | +70 | °C |
| LCM Storage Temperature | TSTG | -30 | +80 | °C |
| TP Operating Temperature & Humidity (20% ~ 90%RH) | TOPR | -20 | +70 | °C |
| TP SStorage Temperature & Humidity (20% ~ 90%RH) | TSTG | -30 | +80 | °C |
| Humidity | RH | -- | 90 | % |
Back-Light Unit Characeristics
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 14 | -- | 16 | V | -- |
| Forward current | IF | -- | 80 | -- | mA | -- |
| Luminance(With LCD+CTP) | Lv | -- | 450 | -- | cd/m2 | -- |
| LED life time | N/A | -- | 20,000 | -- | Hr | Note 1 |
Module Function Description
| Pin No. | Symbol | LCM Functional |
| 1 | GND | Ground. |
| 2 | NC | No Connection. |
| 3 | LEDA | Power Supply For LED Backlight Anode Input. |
| 4 | LEDA | Power Supply For LED Backlight Anode Input. |
| 5 | NC | No Connection. |
| 6 | LEDK | Power supply for backlight cathode input terminal. |
| 7 | LEDK | Power supply for backlight cathode input terminal. |
| 8 | NC | No Connection. |
| 9 | GND | Ground. |
| 10 | NC | No Connection. |
| 11 | NC | No Connection. |
| 12 | NC | No Connection. |
| 13 | NC | No Connection. |
| 14 | NC | No Connection. |
| 15 | NC | No Connection. |
| 16 | NC | No Connection. |
| 17 | GND | Ground. |
| 18 | NC | No Connection. |
| 19 | GND | Ground. |
| 20 | GND | Ground. |
| 21 | RESET | Reset Signal input pin. |
| 22 | VDD | Power Supply For LCD. |
| 23 | STBYB | Standby mode, Normally pulled high. |
| 24 | NC | No Connection. |
| 25 | GND | Ground. |
| 26 | D0P | Positive polarity of low voltage differential data 0 signal |
| 27 | D0N | Negative polarity of low voltage differential data 0 signal |
| 28 | GND | Ground. |
| 29 | D1P | Positive polarity of low voltage differential data 1 signal |
| 30 | D1N | Negative polarity of low voltage differential data 1 signal |
| 31 | GND | Ground. |
| 32 | CLKP | Positive polarity of low voltage differential clock signal |
| 33 | CLKN | Negative polarity of low voltage differential clock signal |
| 34 | GND | Ground. |
| 35 | D2P | Positive polarity of low voltage differential data 2 signal |
| 36 | D2N | Negative polarity of low voltage differential data 2 signal |
| 37 | GND | Ground. |
| 38 | D3P | Positive polarity of low voltage differential data 3 signal |
| 39 | D3N | Negative polarity of low voltage differential data 3 signal |
| 40 | GND | Ground. |

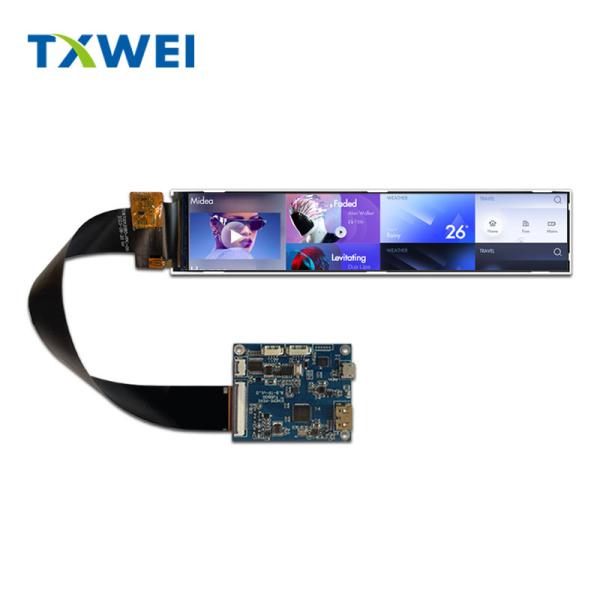

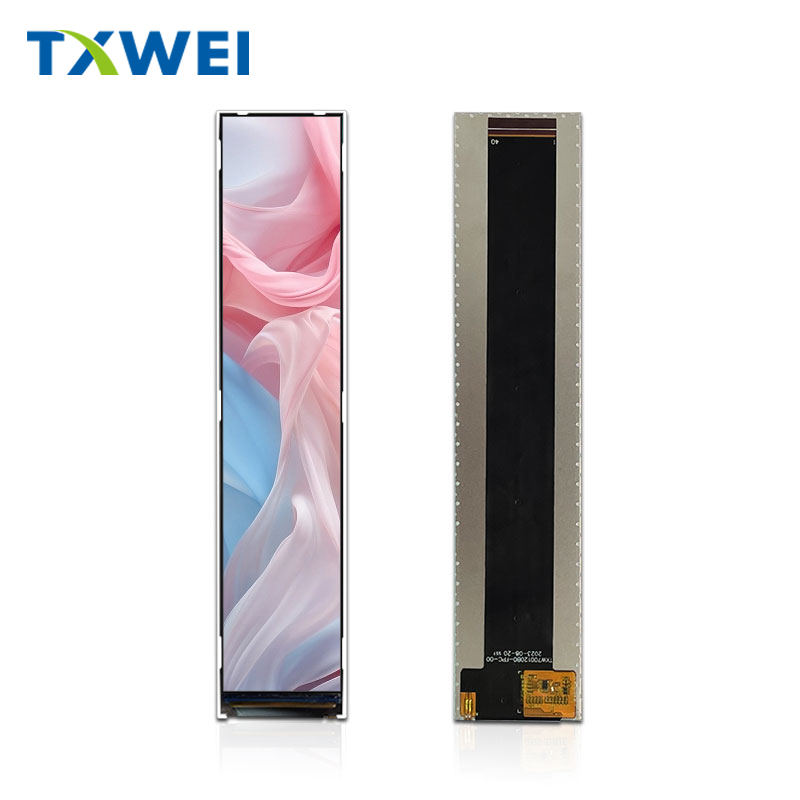

Product Image
