Shenzhen Tianxianwei Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | TXWEI |
| Model Number : | TXW702002B0-JM |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Delivery Time : | 16 |
| Payment Terms : | L/C TT D/P |
| Supply Ability : | 10000pcs |

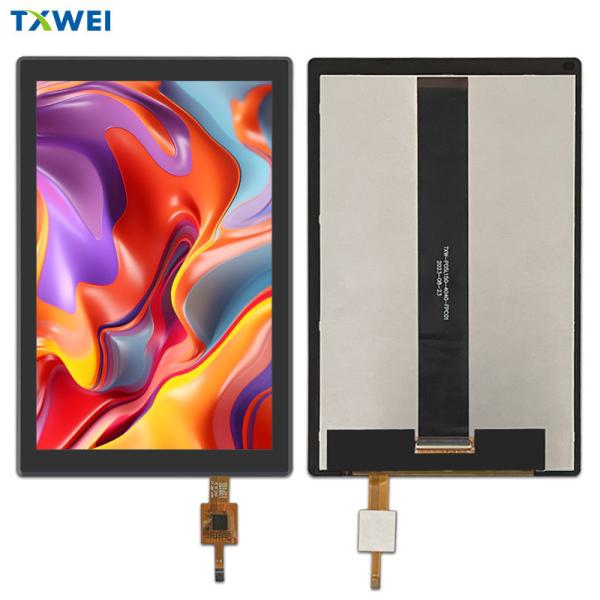

TXW702002B0-JM is a 7.02-inch 16:10 aspect ratio full-color TFT LCD display screen with a resolution of 1200 * 1920, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, and high brightness display of 1500-2000cd/m².
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, a shipment yield rate of 99.7%, and professional after-sales service guarantee.
This product is widely used in fields such as drone remote control panel display, photography equipment, military display equipment, industrial security, medical equipment, handheld PDAs, etc.
Welcome to the world of TFT LCD screens! Our TFT LCD Monitor Screen is an innovative and high-quality display module that offers crystal clear and vibrant images for your viewing pleasure. With advanced technology and top-notch features, it is the perfect choice for all your visual needs.
The IC/LCM Driver IC used in our TFT LCD Screen is the HX8279, which is known for its excellent performance and reliability. It offers a wide viewing angle and supports multiple display modes, making it suitable for various applications.
With a brightness range of 1500-2000cd/m², our TFT LCD Screen delivers bright and clear images even in well-lit environments. This makes it perfect for outdoor displays, kiosks, and other applications that require high brightness levels.
The TFT LCD Screen has a resolution of 1200*1920, providing a total of 2.3 million pixels. This ensures that you get sharp and detailed images, with no pixelation or blurring. Whether you're watching movies, playing games, or working on graphic design projects, our screen will bring all your visuals to life.
| ITEM | Sandard value | Unit |
| Model Number | TXW702002B0-JM | |
| size | 7.02 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 1200*3RGB(H)X1920(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.026.25(H) *0.07875(V) | mm |
| Active area | 94.5(H) * 151.2(V) | mm |
| Mechanical OutlineSize(W*H*T) | 111*172*5.38 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | HX8279 | - |
| LCM interface | MIPI Interface | - |
| Cover material | Asahi Glass Tempered Glass | |
| Touch screen structure | G+FF | |
| Touch Driver IC | GT911 | - |
| Touch Interface | IIC | |
| Laminating process | OCA full fit | |
| Lcm pin n count | 40 | |
| Backlight leds | 48 | pcs |
| Backlight current | 180-300 | mA |
| Backligh voltage | 21.6-25.6 | V |
| operating temperature | -20+70 | ℃ |
| storage temperature | -30+80 | ℃ |
| Lumens degrees | 1500-2000 | cd/㎡ |
Brand Name: TXWEI
Model Number: TXW702002B0-JM
Place of Origin: Guangdong, China
Certification: CE, ROHS, FCC
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Cardboard
Delivery Time: 16 days
Payment Terms: L/C, TT, D/P
Supply Ability: 10000 pieces per month
Operating Temperature: -20°C to +70°C
IC/LCM Driver IC: HX8279
Pixel Pitch (W*H): 0.1506mm * 0.1432mm
Lcm Pin N Count: 40
LCD Type: Normally Black
At TXWEI, we understand that different industries and applications have unique requirements for TFT LCD screens. That's why we offer a wide range of customization services for our TFT LCD screens to meet your specific needs.
Choose TXWEI as your customization partner for TFT LCD screens and get high-quality, tailored solutions for your specific application. Contact us today to discuss your customization needs!
|
|
