5-inch MIPI 480*854 TFT display screen 400-800nits industrial endoscope display panel

Ask Lasest Price
Brand Name :	TXWEI
Model Number :	TXW500141S0
Certification :	CE ROHS FCC
Price :	negotiate
Delivery Time :	16
Payment Terms :	L/C TT D/P
Supply Ability :	10000pcs

Add to Cart

Product Details
Company Profile

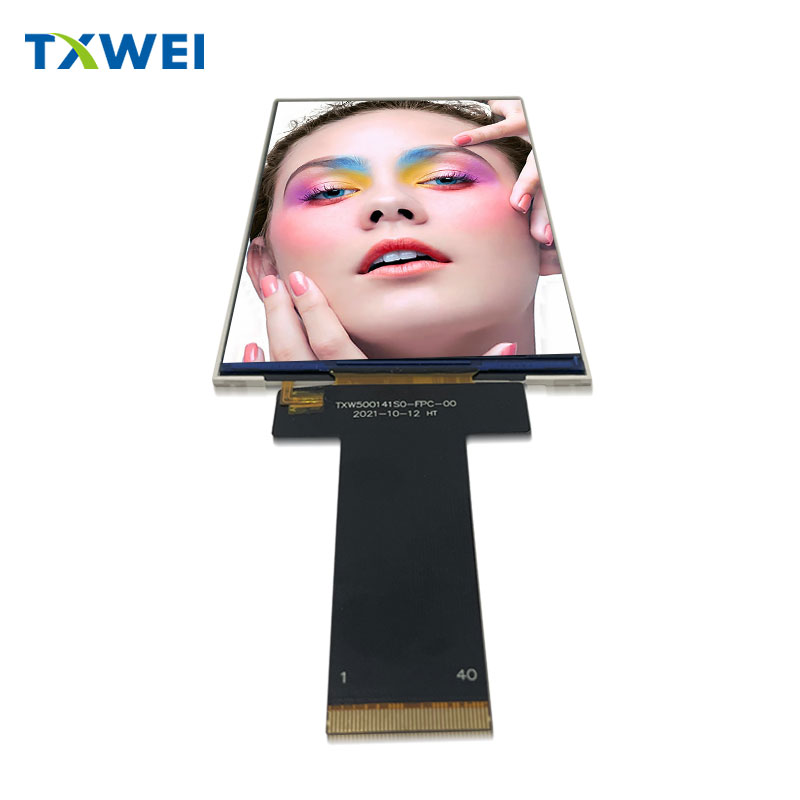

5-inch MIPI 480*854 TFT display screen 400-800nits industrial endoscope display panel

1.TXW500141S0 is a 5.0-inch 16:9 ratio full-color TFT LCD display with a resolution of up to 480 * 854. It has IPS full angle high-definition and high brightness display effects, with a wide temperature range of -20+70 working temperature and a high brightness display of 400-800cd/m².

2.This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co. Ltd.

It provides professional full process technical support services, first-class production quality control, and a

delivery yield rate of 99.7%, with professional after-sales service guarantee.

3.This product is widely used in industrial endoscopes, children's monitors, monitoring device displays, access

control and attendance devices, security devices, handheld devices, children's education, refrigerator display

panels, coffee machine and range hood display panels, etc.

Features:

Product Name: TFT LCD Screen
Backlight current: 12
Pixel Pitch (W*H): 0.108
Viewing direction: ALL O’CLOCK
LCD Type: Normally Black
Drive element: TFT Active Matrix
High-definition display
Thin and lightweight design
Wide viewing angle
Sharp and vibrant colors
Energy-efficient backlight
Easy to use and install
Compatible with various devices
Durable and long-lasting
Enhanced visual experience
Ideal for multimedia and gaming

Technical Parameters:

ITEM	Sandard value	Unit
Model Number	TXW500141S0
size	5.0	Inch
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	480*3RGB(H)X800(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.1284*0.1284	mm
Active area	61.63(H) *109.65(V)	mm
Mechanical OutlineSize(WHT)	66.4120.052.05	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	ILI9806E	-
LCM interface	MIPI BIT Interface	-
Lcm pin n count	40
Backlight leds	12	pcs
Backlight current	40	mA
Backligh voltage	18	V
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	400	cd/㎡

Consumer Electronics: Our TFT LCD panel is widely used in smartphones, tablets, laptops, and other handheld devices, providing a high-resolution display for a better viewing experience.
Automotive Industry: Our TFT touch display is perfect for infotainment systems, dashboard displays, and rear-seat entertainment systems, providing a clear and intuitive interface for drivers and passengers.
Industrial Applications: Our TFT LCD Module is also suitable for industrial applications such as control panels, measurement devices, and industrial computers, providing a reliable and durable display solution for harsh environments.
Medical Devices: Our TFT display is widely used in medical devices, such as patient monitoring systems, ultrasound machines, and medical imaging devices, providing accurate and high-resolution images for medical professionals.
With its wide range of applications, our TFT LCD Module is the perfect display solution for various industries and scenarios. Its advanced technology and high-quality performance make it a top choice for electronic devices.

Why Choose TXWEI TFT LCD Screen?

There are many reasons why TXWEI TFT LCD Screen is the preferred choice for many businesses and individuals:

High quality and reliable product
Competitive pricing and flexible negotiation options
Efficient and timely delivery
Excellent customer service and technical support
Compliant with international standards and certifications
Continuous research and development for innovative solutions
Customizable options to meet specific requirements

Experience the superior display performance and advanced technology of TXWEI TFT LCD Screen. Contact us now to discuss your needs and get a quote.
