TFT LCD Screen - Product Overview

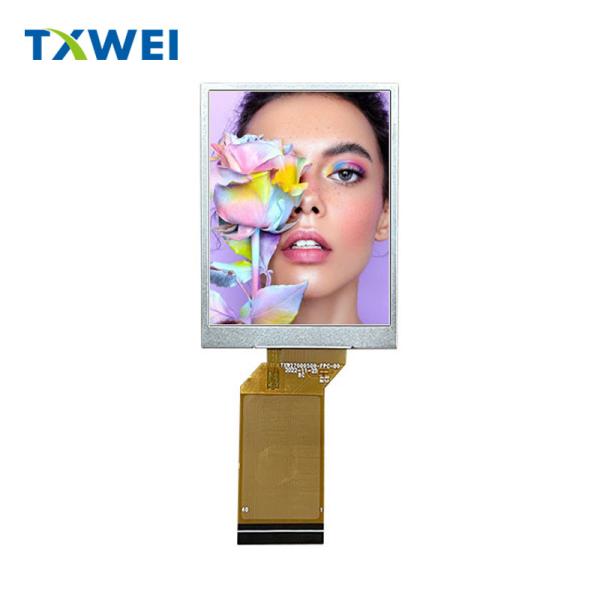

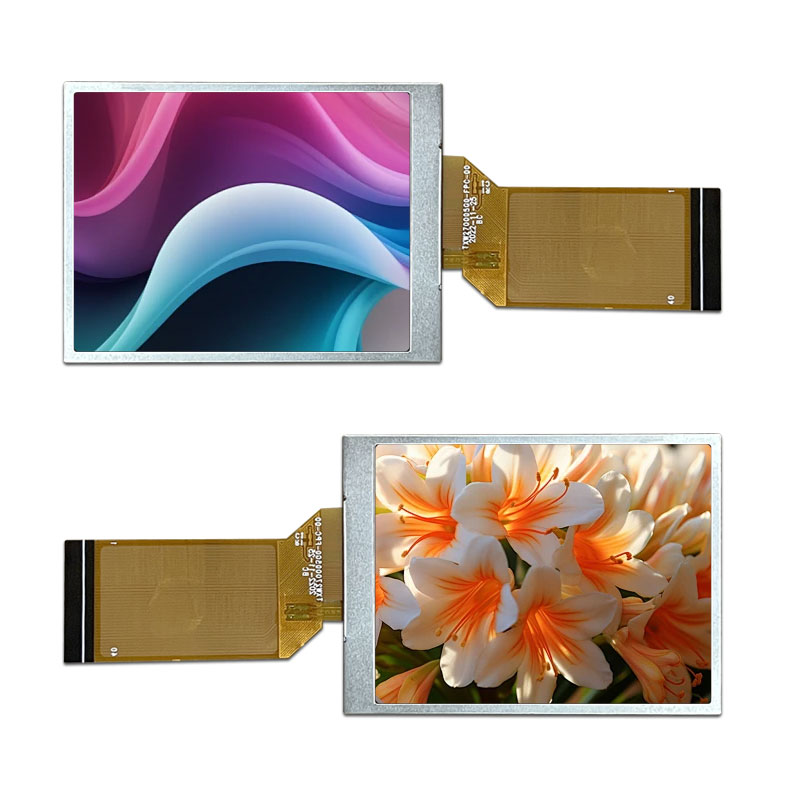

- TXW270005G0 is a 2.7-inch full-color 4:3 ratio TFT LCD display
screen with a resolution of 960 * 240, EWV ultra wide viewing angle
high-definition highlight display, wide temperature range of -20+70
working temperature, and brightness of 300cd/m ².
- This product is independently designed, developed, and produced by
Shenzhen Tianxianwei Technology Co., Ltd. It provides professional
full process technical support services, first-class production
quality control, and a delivery yield rate of 99.7%, with
professional after-sales service guarantee.
- This product is widely used in driving recorders, ship instruments,
medical instruments, photography equipment, and other products.
Features:
- Product Name: TFT LCD Screen
- IC/LCM Driver IC: ILI8961
- Brightness: 300cd/m²
- Viewing direction: ALL O’CLOCK
- Lcm pin n count: 40
- Number of pixels: 960*240
- Key Features:
- LCD TFT Display Panel
- TFT LCD Display Module
- TFT LCD Monitor Screen
Technical Parameters:
TFT LCD Screen Specifications
| Property | Value |
|---|
| TFT LCD Monitor Screen | TFT LCD Screen |
| Backlight current | 20 |
| Brightness | 300cd/m² |
| IC/LCM Driver IC | ILI8961 |
| Number of pixels | 960*240 |
| Operating temperature | -20+70 |
| Pixel arrangement | RGB Stripe |
| LCD Type | Normally Black |
| Lcm pin n count | 40 |
| Pixel Pitch (W*H) | 63.9*47*2.73 |
| Drive element | TFT Active Matrix |
Customization:
TFT LCD Screen Customization Service
Brand Name: TXWEI
Model Number: TXW270005G0
Place of Origin: Guangdong, China
Certification: CE, ROHS, FCC
Minimum Order Quantity: negotiate
Price: negotiate
Packaging Details: cardboard
Delivery Time: 16 days
Payment Terms: L/C, TT, D/P
Supply Ability: 10000pcs
Pixel arrangement: RGB Stripe
Brightness: 300cd/m²
Pixel Pitch (W*H): 63.9*47*2.73
Drive element: TFT Active Matrix
Operating temperature: -20+70
Certification: CE ROHS FCC
With the CE, ROHS, and FCC certifications, this TFT LCD Module is
guaranteed to be safe, reliable, and environmentally friendly.
These certifications also make it suitable for use in various
countries and regions.
Minimum Order Quantity: Negotiate
As a customer-oriented company, TXWEI offers flexible minimum order
quantities to cater to the needs of different clients. Whether you
need a small or large quantity, we can negotiate and find a
solution that works for you.
Price: Negotiate
The price of the TFT LCD Module is negotiable, depending on the
quantity and other factors. We strive to provide competitive
pricing without compromising on quality, making it a cost-effective
solution for your business.
Packaging Details: Cardboard
The TFT LCD Module is packaged in sturdy cardboard boxes to ensure
safe transportation and delivery. This packaging also helps to
protect the module from any damage during transit.
