| Brand Name : | TXWEI |
| Model Number : | TXW280048B0-FD |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Delivery Time : | 16 |
| Payment Terms : | L/C TT D/P |
| Supply Ability : | 10000pcs |
Application scenarios
-Industrial Control Panel: Used for displaying and controlling
industrial equipment
-Medical Equipment: Display important information on medical
equipment
-Consumer electronics products: such as smart home devices,
handheld game consoles, etc
-In car display: Used for the dashboard or infotainment system of
the vehicle
-Business information systems: such as POS machines, self-service
terminals, etc
Product advantages
-High brightness: 400nits brightness ensures clear display under
various lighting conditions
-High Contrast: IPS technology provides better contrast and color
performance
-Multi touch: The capacitive touch screen supports multi touch,
providing a smoother interactive experience
-Optical bonding: enhances display effect and touch accuracy.
In summary, the optical bonded capacitive touch 2.8-inch IPS TFT display combines high brightness, high contrast, and multi touch features, making it suitable for various application scenarios and providing excellent user interaction experience.
Features
| Item | Specification | Unit |
| Screen Size | 2.8 inch | Diagonal |
| Number of Pixel | 240RGB(H)x320(V) | Pixels |
| Display area | 43.20(H)x57.60(V) | mm |
| Pixel pitch | 0.180(H)x0.180(V) | mm |
| Outline Dimension | 52.9*79.3*3.7 | mm |
| Pixel arrangement | RGB Vertical Stripe | ― |
| Display mode | Normally Black | ― |
| Viewing Direction(eye) | ALL | ― |
| Display Color | 262K | ― |
| Luminance(cd/m2) | 400 | nit |
| Interface | MCU 16 BIT Interface | |
Backligh voltage | 2.8-3.3V | ― |
| Drive IC | ST7789V | |
| Operation Temperature | -20~70 | ℃ |
| Storage Temperature | -30~80 | ℃ |
| Touch screen | Capacitive touch screen | |
| Touchscreen Interface | I2C | |
Touch screen structure | G+G | |
Touch Driver IC | GT911 | |
| Assembly of TFT+CTP | Optical Bonding |

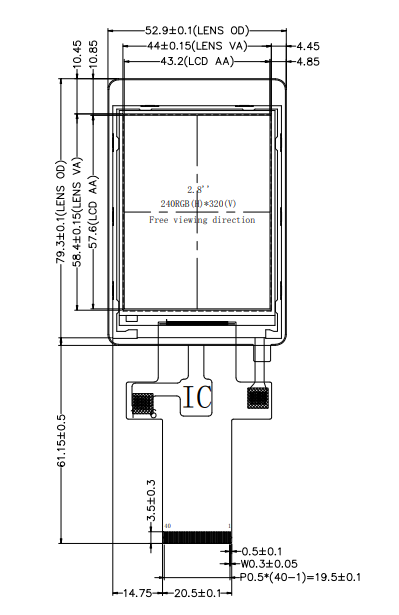

Outline Drawing
Absolute Maximum Rating
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 6 white LEDs.
The characteristics of the back-light areshown in the following
tables.
Note:(1) The “LED life time” is defined as the module brightness decrease to 50% of original brightness atIL=30mA/LED. The LED life time could be decreased if operating IL is larger than 45mA/LED.
LCM PIN Description:
Reliability Test Item
Product Image
Facilities and Certificates
|
|
