| Brand Name : | TXWEI |
| Model Number : | TXW276001B0 |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Delivery Time : | 16 |
| Payment Terms : | L/C TT D/P |
| Supply Ability : | 10000pcs |

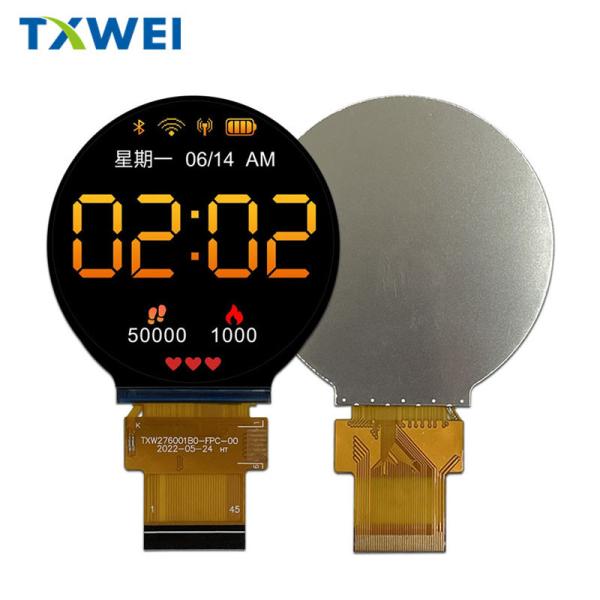

TXW276001B0 is a 2.76-inch circular full-color TFT LCD display screen that can be equipped with capacitive touch full fit, with a resolution of 480*480, IPS full angle high-definition highlight display effect, wide temperature -30+80 working temperature, supporting customized display brightness, FPC structure, touch and backlight structure, supporting RGB565/666/888 and MIPI interfaces
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.
This product is widely used in smart appliances, kitchen appliances, instrument displays, security access control, children's education, medical equipment, automotive intelligent interconnection and other products.
| ITEM | Sandard value | Unit |
| Model Number | TXW276001B0 | |
| size | 2.76 | Inch |
| LCD Type | Normally black | -- |
| Drive element | TFT active matrix | -- |
| Number of pixels | 480*3RGB(H)X480(V) | Dots |
| Pixel arrangement | RGB stripe | -- |
| Pixel Pitch (W*H) | 0.1461 | mm |
| Active area | Φ70.128 | mm |
| Mechanical OutlineSize(W*H*T) | 73.03*76.48*2.3 | mm |
| Viewing direction | ALL O’CLOCK | - |
| LCM Driver IC | ST7701S | - |
| LCM interface | RGB 18 BIT Interface | - |
| Lcm pin n count | 40 | |
| Backlight leds | 4 | pcs |
| Backlight current | 80 | mA |
| Backligh voltage | 6 | V |
| operating temperature | -30+80 | ℃ |
| storage temperature | -30+80 | ℃ |
| Lumens degrees | 600 | cd/㎡ |
The Round TFT Liquid Crystal Display (LCD) by TXWEI, model number TXW276001B0, is a cutting-edge product designed for various
applications. This circular TFT LCD is proudly made in Guangdong, China and has been certified with CE, ROHS, and FCC to ensure its quality and safety standards.
The TXWEI Round TFT LCD boasts the following features:
TXWEI takes pride in delivering high-quality products to its customers. This Round TFT LCD has been certified with CE, ROHS, and FCC, ensuring that it meets international standards.
The Round TFT LCD comes packaged in a sturdy cardboard box to ensure safe delivery. With a supply ability of 10,000 pieces and a delivery time of 16 days, TXWEI strives to fulfill its customers' orders efficiently.
Customers can negotiate the minimum order quantity and price with TXWEI. We accept various payment terms, including L/C, TT, and D/P, to make the ordering process convenient for our customers.
Choose the Round TFT LCD by TXWEI for your next project and experience its high-quality performance and innovative design.
|
|
