Shenzhen Tianxianwei Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | TXWEI |
| Model Number : | TXW360002B0-HB |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Delivery Time : | 16 |
| Payment Terms : | L/C TT D/P |
| Supply Ability : | 10000pcs |

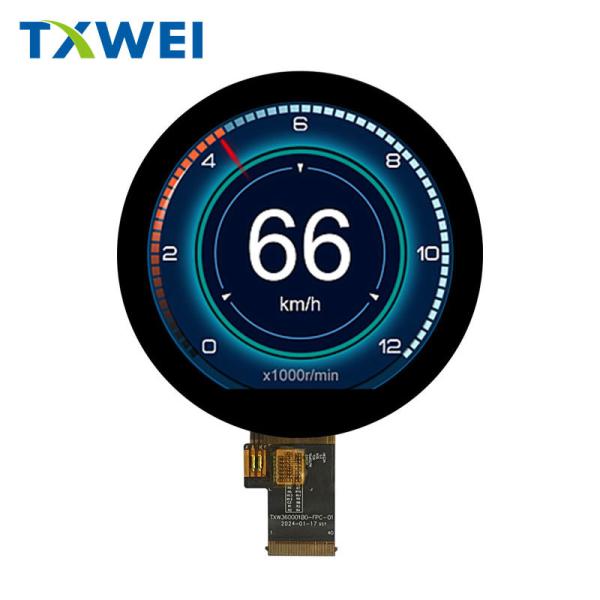

TXW36002B0-HB is a 3.6-inch circular full-color TFT LCD screen with tempered glass, with a resolution of 544*506, IPS full angle high-definition highlight display effect, wide temperature -30+85 working temperature, 1000cd/m² brightness, RGB24 bit interface, and can support customized brightness for customers.
This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and professional after-sales service guarantee.
This product is mainly used in two wheeled vehicle instruments, industrial instrument displays, medical instruments, automotive intelligent interconnection and other products.
| Property | Value |
|---|---|
| Product Name | Circular TFT LCD |
| Product Type | Round TFT Liquid Crystal Display |
| Drive Element | TFT Active Matrix |
| Size | 3.6 Inches |
| Active Area | 83.49mm x 89.76mm |
| Model Number | TXW360002B0-HB |
| Operating Temperature | -20°C to +70°C |
| Number of Pixels | 544 x 506 |
| Viewing Direction | ALL O'CLOCK |
| Pixel Arrangement | RGB Stripe |
| Mechanical Outline Size (W x H x T) | 107.23mm x 107.23mm x 9.73mm |
| Pixel Pitch (W x H) | 0.165mm x 0.165mm |
Model Number: TXW360002B0-HB
Place of Origin: Guangdong, China
Certification: CE, ROHS, FCC
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Cardboard
Delivery Time: 16 days
Payment Terms: L/C, TT, D/P
Supply Ability: 10,000pcs
Mechanical Outline Size (W*H*T): 107.23*107.23*9.73mm
IC/LCM Driver IC: ST72566
Number of pixels: 544*506
Lumens degrees: 1000cd/m²
LCM interface: RGB 24 BIT Interface
This product is a Circular TFT LCD with model number TXW360002B0-HB, manufactured by TXWEI in Guangdong, China.
It has been certified with CE, ROHS and FCC, ensuring its quality and safety standards.
The minimum order quantity and price can be negotiated according to the customer's requirements.
It is packaged in a sturdy cardboard box for protection during delivery.
The delivery time is 16 days, and payment terms can be L/C, TT or D/P.
The supply ability of this product is 10000 pieces.
The LCD panel has a resolution of 544*506 pixels and is of Normally Black type.
The IC/LCM driver IC used is ST72566, providing efficient display performance.
The pixel pitch of this Round Liquid Crystal Display is 0.165*0.165 mm.
It is designed to operate in temperatures ranging from -30 to +85 degrees Celsius.
|
|
