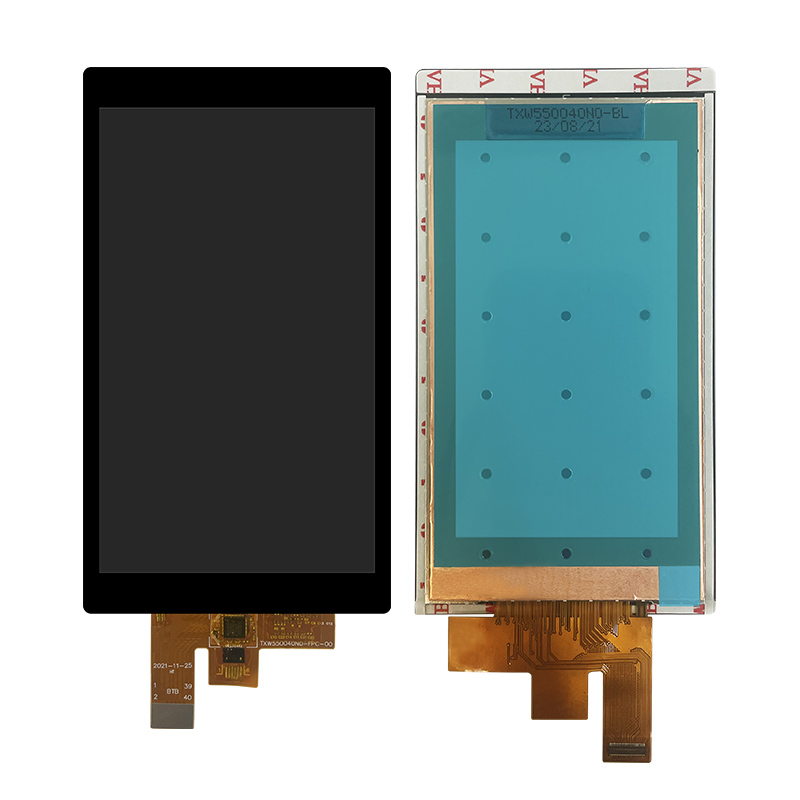

Multi Touch PCAP TFT 5.5 Inch Display MIPI Interface 1080*1920 Pixels Low Price Garrantee

5.5 INCH TOUCH PCAP TFT MIPI INTERFACE PRODUCT INTRODUCTION

TFT (Thin Film Transistor) is a liquid crystal display technology that has the characteristics of fast response speed and high color reproducibility. The product TXW550040N0-CTP adopts IPS technology, providing nearly 180 degree panoramic display capability, which can maintain color consistency and accuracy from any angle. On the capacitive touch screen, GT911 is a high-performance capacitive touch screen control chip that supports multi touch and provides users with a smooth interactive experience. Combining touch accuracy and response speed with the GT911 chip, the 5.5-inch TFT display IPS panoramic LCD screen can achieve high-precision touch operation and fast response. Tianxianwei is an expert in IPS products, providing customers with over 500 types of IPS products applied in various industries.

The TXW550040N0-CTP display screen has a high-definition resolution of 1080 * 1920, ensuring the clarity of images and the richness of details. The brightness reaches 1100cd/m ², providing good visibility even in strong light environments. Tianxianwei TXW550040N0-CTP can achieve various brightness levels according to customer needs.

The TXW550040N0-CTP display screen is widely used in outdoor handheld PDAs, photography equipment, instruments, unmanned aerial vehicle remote controllers, and other fields. Its high resolution and multi touch functionality provide users with a rich interactive experience and convenient operation methods.

Features

Item	Specification	Unit
Screen Size	5.5	inch
Number of Pixel	1080*3RGB(H)X1920(V)	Pixels
Display area	68.04(H) * 120.96(V)	mm
Pixel pitch	0.021(H) *0.063(V)	mm
Outline Dimension	75.8(W) ×139.9(H) ×3.49(T)	mm
Pixel arrangement	RGB Vertical Stripe	―
Display mode	Normally Black	―
Viewing Direction(eye)	ALL	―
Display Color	262K	―
Luminance(cd/m2)	1100	nits
Contrast Ratio	800:1	―
Interface	MIPI
Back-light	LED Side-light type	―
LCM IC	HX8399C
CTP IC	GT911
Operation Temperature	-20~60	℃
Storage Temperature	-30~70	℃

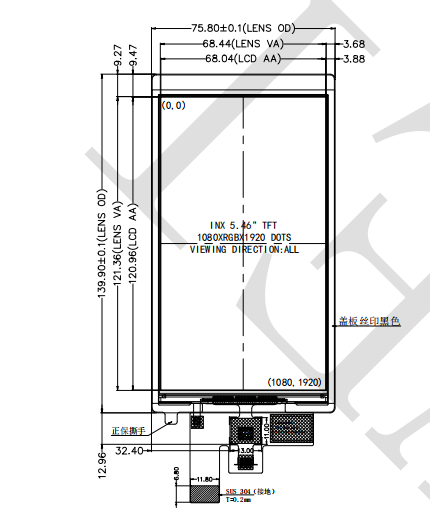

Outline Drawing

Module Function Description

Pin No	Symbol	Description
1	GND	Power Ground
2	GND	Power Ground
3	CTP_RST	Touch panel reset
4	RESET	Reset signal input terminal. Active at ‘L’.
5	CTP_INT	Touch panel interrupt output
6	TE	Tearing effect signal is used to synchronize MCU to frame memory
7	CTP_SDA	Touch panel I2C data
8	LCD_ID	Not connected
9	CTP_SCL	Touch panel I2C clock
10	GND	Power Ground
11	CTP_VCC	Touch panel Power supply 2.8~3.3V
12	D0N	High speed interface data differential signal input/output pins
13	GND	Power Ground
14	D0P	High speed interface data differential signal input/output pins
15	LEDA	Power supply for backlight anode input terminal.
16	GND	Power Ground
17	LEDA	Power supply for backlight anode input terminal.
18	D1N	High speed interface data differential signal input/output pins
19	GND	Power Ground
20	D1P	High speed interface data differential signal input/output pins
21	LEDK	Power supply for backlight cathode input terminal.
22	GND	Power Ground
23	LEDK	Power supply for backlight cathode input terminal.
24	CLKN	High speed interface clock differential signal input/output pins
25	LEDK	Power supply for backlight cathode input terminal.
26	CLKP	High speed interface clock differential signal input/output pins
27	GND	Power Ground
28	GND	Power Ground
29	PWM	This pin is connecting with the external LED driver.
30	D2N	High speed interface data differential signal input/output pins
31	IOVCC 1.8V	Power Supply For I/O.
32	D2P	High speed interface data differential signal input/output pins
33	GND	Power Ground
34	GND	Power Ground
35	VSP	External input voltage(4.8V~6V)
36	D3N	High speed interface data differential signal input/output pins
37	VSN	External input voltage(-4.8V~-6V)
38	D3P	High speed interface data differential signal input/output pins
39	GND	Power Ground
40	GND	Power Ground

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+60	°C
LCM Storage Temperature	T_STG	-30	+70	°C
TP Operating Temperature & Humidity(20% ~ 90%RH)	T_OPR	-20	+60	°C
TP SStorage Temperature & Humidity(20% ~ 90%RH)	T_STG	-30	+70	°C
Humidity	RH	-	90	%

TFT DC Characteristics

Characteristics	Symbol	Min.	Typ.	Max.	Unit	Note
Supply Voltage for I/O	VDDIO	1.65	1.8	3.3	V
External Input Voltage for(DC/DC)	VSP	4.8	--	6.0	V
External Input Voltage for(DC/DC)	VSN	-6.0	--	-4.8	V

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 15 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	28	--	32	V	-
Forward current	I_F	--	60	-	mA	-
Luminance(With LCD+CTP)	Lv	--	1200	--	cd/m²	-
LED life time	N/A	----	30,000	--	Hr	Note 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED.

Reliability Test Item

No.	Test Item	Test Condition	Notes
1	High Temp. Storage	+70°C / 96H	1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 96H
3	High Tempe. Operating	+60°C / 96H
4	Low Tempe. Operating	-20°C / 96H
5	High Temperature /Humidity storage	50°C x 90%RH /96H
6	Thermal and cold shock	Static state, -20℃(30min) ~60℃ (30min),10 cycles
