| Brand Name : | TXWEI |
| Model Number : | TXW500094S6 |
| Certification : | CE FCC IS014001 IATF16949 |
| Price : | negotiate |
| Supply Ability : | 10000pcs |
| Delivery Time : | 16 days |

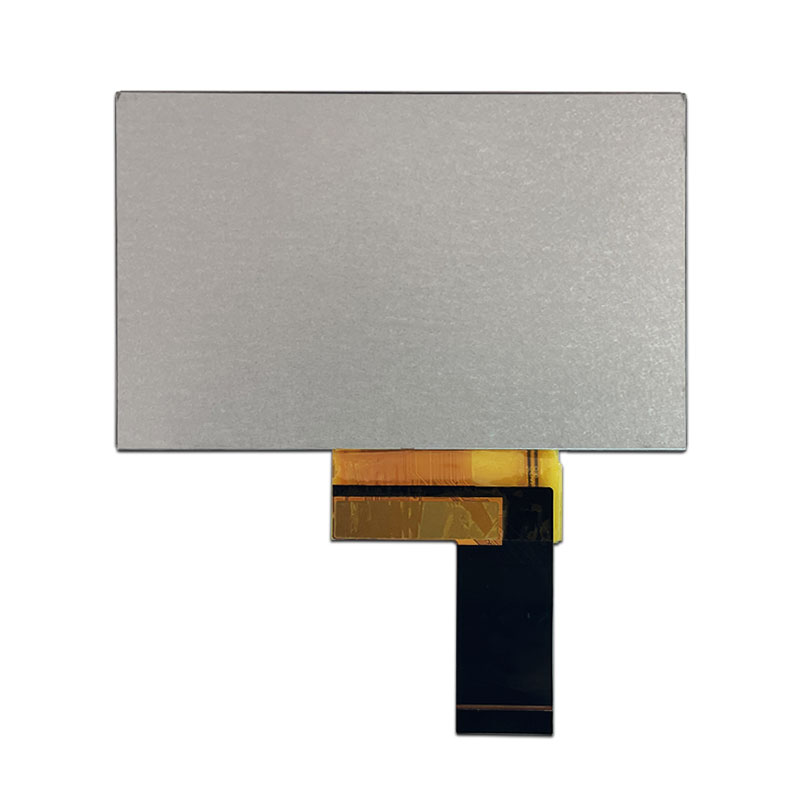

Features
Size: 5 inches
Resolution: 800*480 pixels
Display mode: IPS
Driver IC: ST7262
Brightness: 1500cd/m ²
Interface types: RGB
Working temperature: -30 ℃ to 85 ℃
Storage temperature: -30 ℃ to 85 ℃
Backlight type: LED backlight, brightness and quantity vary by
model
Outline Drawing
Module Function Description
| Pin No. | Symbol | Description |
| 1 | LEDK | POWER SUPPLY- FOR BACKLIGHT cathode |
| 2 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
| 3 | GND | GND |
| 4 | VDD | POWER SUPPLY |
| 5~12 | R0~R7 | 8 bit data bus display red data. |
| 13~20 | G0~G7 | 8 bit data bus display green data |
| 21~28 | B0~B7 | 8 bit data bus display blue data |
| 29 | GND | GND |
| 30 | DCLK | Pixel clock signal in RGB I/F |
| 31 | DISP | DISP=0:Standby mode (Default),DISP=1:Normal display mode |
| 32 | HSYNC | Horizontal sync. Signal in RGB I/F |
| 33 | VSYNC | Vertical sync. Signal in RGB I/F |
| 34 | DE | Data enable signal in RGB I/F mode 1 |
| 35 | NC | NC |
| 36 | GND | GND |
| 37 | XR(NC) | NC |
| 38 | YD(NC) | NC |
| 39 | XL(NC) | NC |
| 40 | YU(NC) | NC |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 18 white LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 16.5 | -- | 17.4 | V | -- |
| Forward current | IF | -- | 120 | -- | mA | -- |
| Luminance(With LCD) | Lv | -- | 1500 | -- | cd/m2 | -- |
| LED life time | N/A | -- | 20,000 | -- | Hr | Note 1 |
Note:
Optical Specification
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +85°C / 240H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow. |
| 2 | Low Temp. Storage | -30°C / 240H | |
| 3 | High Tempe. Operating | +85°C / 240H | |
| 4 | Low Tempe. Operating | -30°C / 240H | |
| 5 | High Temperature /Humidity storage | 60+5°C x 90%RH / 240H | |
| 6 | Thermal and cold shock | Static state, -30℃(30min) ~85℃ (30min),50 cycles |
|
|
