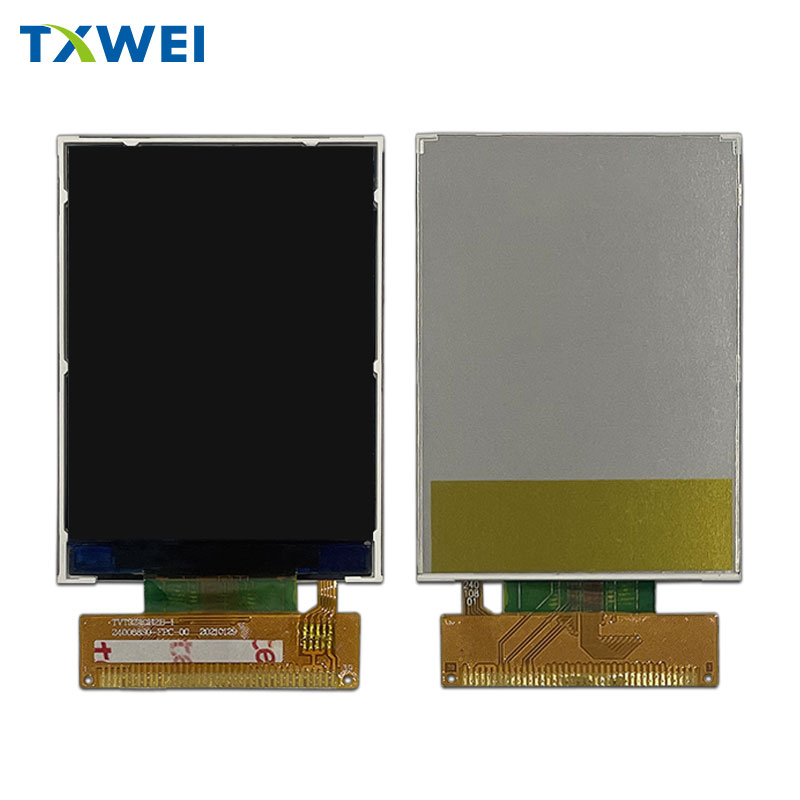

Product Name: TXW240088S0 2.4-inch TFT LCD Module

Product Overview:

TXW240088S0 is a 2.4-inch TFT LCD module designed and produced by Shenzhen Tianxianwei Technology Co., Ltd. This module is suitable for various electronic devices and application scenarios due to its high resolution, rich color rendering, and excellent display performance.

Product features:

Display specifications: 240xRGBx320 pixels, providing clear image and text display.

Driver IC: ST7789V2-G4-A from Sitronix is used to ensure stable performance and compatibility.

Color selection: Supports 65K/262K colors, software adjustable to meet different color requirements.

Backlight type: White LED backlight, providing uniform brightness and color.

Interface type: 16 bit MCU interface, convenient for connection and data transmission with microcontrollers.

Environmental adaptability: The working temperature range is -20 ° C to+70 ° C, and the storage temperature range is -30 ° C to+80 ° C, suitable for various environmental conditions.

Environmental requirements: Compliant with RoHS standards, lead-free materials and processing, protecting the environment.

Technical specifications:

Display type: full-color TFT LCD

Pixel arrangement: RGB stripe arrangement

Pixel spacing: 0.153 (H) x 0.153 (V) millimeters

Activity area: 36.72 (H) x 48.96 (V) millimeters

Perspective: All O'CLOCK

Module size: 42.72 (W) x 58.50 (H) x 2.15 (T) millimeters

Backlight system: 4 white LEDs, forward voltage 2.8V to 3.2V, forward current 80mA

Brightness: 550cd/m ² (typical value)

Uniformity: 80% (minimum value)

Operating temperature:- 20 ° C to+70 ° C

Storage temperature:- 30 ° C to+80 ° C

Humidity: 90% RH

Versatile applications: Whether it's photography equipment, remote controls, smart switches, digital cameras, music effects, driving recorders, etc., TXW200078B0 can perfectly adapt and showcase its outstanding performance.

Module Function Description

The module contains multiple pins for implementing different functions, including but not limited to:

GND: Power Ground

CS: Chip selection signal input pin

RS: Display data/command selection pin

WR: MCU parallel interface write enable

RD: Read data on the rising edge

DB0-DB15: MCU parallel interface data bus

RESET: Reset signal input terminal, low level valid

IOVCC: I/O power supply

VCC: Power supply, 2.5V to 3.3V

LEDK1-LEDK4: Power supply for backlight cathode input terminal

LEDA: Backlight anode input power supply

Electrical characteristics: Provides a stable supply voltage range, with I/O supply voltage ranging from 1.65V to 3.3V and DC/DC supply voltage ranging from 2.5V to 3.3V, ensuring stable operation of the module under different power supply conditions.

Reliability and lifespan: LEDs have a long lifespan of up to 30000 hours, which means longer maintenance cycles and lower replacement costs.

Technical support and services: Shenzhen Tianxianwei Technology Co., Ltd. provides professional technical support and customer service to ensure that customers can receive timely assistance during use.

Customized services: Based on customer needs, customized solutions may be provided, including dimensions, interfaces, and other features, to meet specific application requirements.

Shenzhen Tianxianwei Technology Co., Ltd. is committed to providing high-quality display solutions. The TXW240088S0 2.4-inch TFT LCD module, with its excellent performance and reliability, is the ideal choice for your electronic product display needs. For further product information or technical support, please contact our sales representative.
