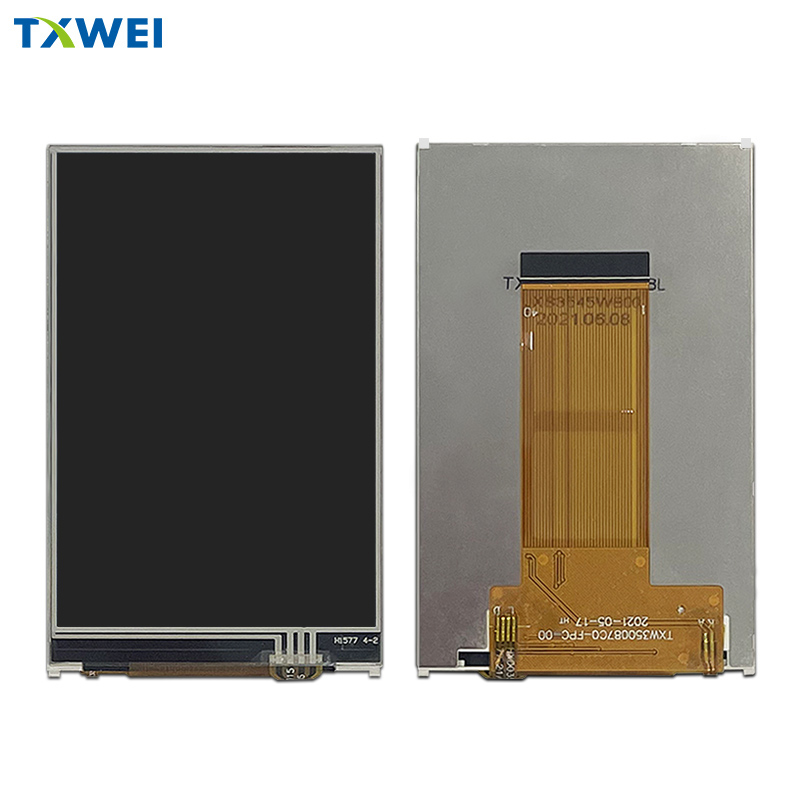

    3.5inch ILI9488 IC TFT LCD Display Panel Module with Resistive Touch and Active Area 48.96*73.44mm

    Ask Lasest Price
    Brand Name : TXWEI
    Model Number : TXW350087C0-RTP
    Certification : CE ROHS FCC
    Price : negotiate
    Payment Terms : L/C TT D/P
    Supply Ability : 10000pcs
    Delivery Time : 16
    • Product Details
    • Company Profile

    3.5inch ILI9488 IC TFT LCD Display Panel Module with Resistive Touch and Active Area 48.96*73.44mm

    TXW350087C0-RTP LCD Screen Product Introduction

    • Model: TXW350087C0-RTP
    • Size: 3.5 inches
    • Resolution: 320 * 480 pixels
    • Display Properties
    • Display perspective: EWV (specific perspective range not specified, but EWV usually represents a wider perspective)
    • Display interface: RGB 40 PIN interface, easy to connect with various display controllers
    • Display chip: using ILI9488 display chip, providing high-quality image processing capability
    • Brightness: 350 nits, ensuring clear display under various lighting conditions
    • Display area: 48.96 * 73.44mm, providing sufficient display space to meet different application needs

    physical property

    Dimensions: 53.7684.183.4mm, compact design for easy integration into various electronic devices

    Working temperature:- 20 ° C to 70 ° C, ensuring normal operation over a wide temperature range

    Storage temperature:- 30 ° C to 80 ° C, suitable for various storage environments

    Touch technology: RTP (resistive touch screen), providing an intuitive operating experience


    application area

    1. Driving recorder: High definition display and wide viewing angle make it an ideal choice for driving recorders
    2. Industrial serial port screen: sturdy and durable, suitable for various industrial control scenarios
    3. 3D printer display: Real time display of printing status to enhance user experience
    4. Car display: High brightness and wide viewing angle make it suitable for car environments
    5. Testing instrument: provides a clear display interface for easy data reading and analysis
    6. Medical display: providing accurate and clear image display in the medical field

    Additional explanation

    This product complies with RoHS standards, restricts the use of hazardous substances, and meets environmental requirements.

    After rigorous reliability testing, including high temperature storage, low temperature storage, high temperature operation, low temperature operation, high temperature and high humidity storage, as well as cold and hot shock testing, we ensure stability and reliability in various environments.


    The TXW350087C0-RTP LCD screen has become an ideal choice for various electronic devices due to its high-definition display, wide viewing angle, compact design, and wide range of applications.


    LCD display manufacturer and solution provider

    1. TFT: 0.96 "to 32" (TN and IPS). Brightness can be designed according to customer requirements. Polarizers include TV EWN,Ofilm.
    2. Support various FPC designs. The display modes include TN HTN,STN,FSTN,DFSTN,VA. The structure includes an LCD panel COB,COG. The connection methods include zebra crossing, stitch FPC, Rubber. The brightness can be designed according to customer requirements.
    3. CTP: We have standard models and can also customize according to different sizes, shapes, colors, logos, etc. Has G+G, G+F, and G+F+F structures. 0CA and OCR optical bonding. AR and AFAG coatings can be added to cover the lens.
    4. Drivers can use FT, GT, Atmel, ILITEK, ST, etc. HMI supports sizes of 2.4 inches, 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 10.1 inches, control graphics, real-time transmission protocols, CTP, and audio
