Shenzhen Tianxianwei Technology Co., Ltd.: TXW500150B0-SH 5.0-inch TFT LCD Display Product Details
In today's digital age, as a key window for information exchange, the performance and quality of the display screen directly affect the user experience. Shenzhen Tianxianwei Technology Co., Ltd. has launched a milestone product - TXW500150B0-SH 5.0-inch TFT LCD display screen - with its profound technical accumulation and innovative capabilities in the field of LCD display. This display screen provides an ideal display solution for multiple industries with its excellent display performance, powerful features, and wide applicability.

1, Product Overview
TXW500150B0-SH is a 5.0-inch TFT LCD display screen with high resolution of 720 × 1280 pixels and 16.7M color display capability, capable of presenting delicate and realistic image effects. It adopts IPS (In Plane Switching) technology, ensuring a wide viewing angle and excellent color performance. The product supports MIPI interface, which has become the preferred choice for modern display devices due to its high-speed data transmission capability and low power consumption characteristics.

2, Product Features

(1)High resolution and clear display

Resolution: 720 × 1280 pixels, which means a large number of pixels can be accommodated on a 5.0-inch screen, presenting clear and delicate images. Both complex graphical interfaces and high-definition videos can be presented in a high fidelity manner.
Pixel arrangement: Adopting the RGB vertical stripe arrangement method, this arrangement can effectively reduce color crosstalk, improve the color purity and clarity of the image, and make the display effect sharper.
Effective display area: 62.10mm (width) × 110.40mm (height), this size can meet the display needs of most devices and provide users with a wider visual space.

(2) High brightness and wide viewing angle

Brightness: A brightness level of 380cd/m ² ensures visibility in strong light environments. For example, in direct sunlight outdoors, users can still see the content on the screen clearly, which is crucial for applications such as car navigation and outdoor advertising machines.
Perspective: Supports ALL O'CLOCK display, which has a wide viewing angle in both horizontal and vertical directions. This means that users can enjoy a good visual experience from any angle when viewing the screen, greatly enhancing the practicality of the product.

(3) Advanced interface and driver technology
Interface type: 4-lane MIPI interface. MIPI interface, with its high-speed serial data transmission and low pin count, can effectively reduce wiring complexity and cost. Meanwhile, its high-speed data transmission capability ensures stable and smooth transmission of image signals, avoiding issues such as image lag and delay.
Driver IC: Using ST7703I driver chip, this is a high-performance TFT LCD driver IC with rich functions and excellent performance. It can support multiple display modes, such as normal display, sleep mode, etc., to meet the needs of different application scenarios. In addition, it also has good stability and reliability, which can ensure the normal operation of the display screen in various complex environments.

(4) Touch screen function (optional)
Touch structure: G+F+F structure, which is a common touch screen structure with good touch response speed and accuracy. G represents glass substrate, F represents thin film, and this structure can effectively improve the durability and optical performance of touch screens.
Touch IC: GT1151QM, This touch IC supports I2C interface, which is widely used for data transmission between touch screens and main control chips due to its simple and reliable communication method. GT1151QM has good anti-interference ability and stability, ensuring accurate transmission of touch signals.
Transmittance: ≥ 82%, high transmittance can ensure that the touch screen provides clear visual effects without affecting the brightness of the display screen. When users operate the touch screen, they can feel a smooth experience similar to directly operating the display screen.
Surface hardness: 6H, this hardness level can effectively resist scratches and wear in daily use, extending the service life of the touch screen.

(5) Environmental adaptability and reliability
Working temperature:- The wide operating temperature range of 20 ° C to 70 ° C enables the product to adapt to various extreme environments, whether it is cold northern winters or hot southern summers, and can operate stably.
Storage temperature:- 30 ° C to 80 ° C ensures that the performance and quality of the product are not affected during long-term storage.
Humidity adaptability: The working humidity ranges from 20% to 90% RH, and the storage humidity is ≤ 90% RH, which can meet the climate conditions of different regions and prevent electronic component damage and short circuits caused by high humidity.
Environmental standards: Compliant with RoHS standards, which aim to restrict the use of specific hazardous substances such as lead, mercury, cadmium, etc. in electronic and electrical equipment. This not only reflects the company's sense of responsibility for environmental protection, but also provides users with safer and healthier products.

(6) Compact design and flexible integration

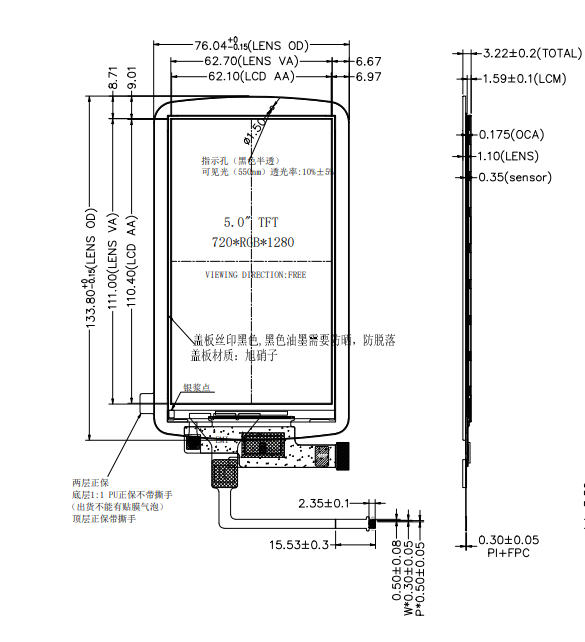

Dimensions: The LCM size is 65.40mm (width) x 119.30mm (height) x 1.59mm (thickness), and the LCM+CTP size is 76.04mm (width) x 133.80mm (height) x 3.22mm (thickness). This compact design allows it to be easily embedded into various devices, saving space while maintaining the overall aesthetics of the device.
Low power design: The working voltage is 2.8-3.3V, and the low-power characteristics make the product particularly suitable for devices that require high battery life, such as tablets, smartphones, etc., which can effectively extend the device's usage time.

3, Application scenarios

(1) Consumer Electronics
Smartphones and tablets: High resolution and low-power design make them ideal choices for smartphones and tablets. Users can enjoy high-definition visual experience while extending the battery life of the device. The touch screen function provides users with convenient operation methods, making human-computer interaction more natural and smooth.
Digital cameras and camcorders: When taking and replaying photos and videos, the TXW500150B0-SH can present clear and delicate images, helping users better capture and appreciate exciting moments.

(2) Car display
In car navigation and central control system: The high brightness and wide viewing angle design ensure visibility under strong light, allowing drivers to easily view navigation information and vehicle status, improving driving safety. At the same time, its stable performance and anti-interference ability can adapt to various complex conditions in the vehicle environment.
Multimedia entertainment system: supports high-definition video playback and smooth user interface, providing passengers with rich entertainment experience, making long-distance travel no longer boring.

(3) Industrial control
Monitoring display screen: In industrial production processes, monitoring display screens need to run stably for a long time and display accurate data. TXW500150B0-SH, with its high resolution, high brightness, and reliability, can clearly display real-time data and system status, helping operators to detect and solve problems in a timely manner, ensuring the normal operation of the equipment.
Instrumentation: Its low power consumption and compact design make it suitable for use in various instruments and meters, such as oscilloscopes, multimeters, etc. These instruments require precise data display and stable performance, and TXW500150B0-SH can meet these requirements, providing reliable display support for scientific research and industrial production.

(4) Medical equipment
Diagnostic equipment: such as portable ultrasound diagnostic devices, high-resolution and clear image displays can help medical staff observe and analyze ultrasound images more accurately, improving diagnostic accuracy. Meanwhile, its stable performance and anti-interference ability ensure reliable operation in medical environments.
Monitor: Used to display vital sign data of patients, such as heart rate, blood pressure, blood oxygen saturation, etc. The high brightness and wide viewing angle design of TXW500150B0-SH enables medical staff to clearly see patient data from different angles and lighting conditions, and make timely diagnosis and treatment decisions.

(5) Smart Home
Intelligent control panel: In smart home systems, the intelligent control panel is the core component for users to interact with various devices. TXW500150B0-SH provides an intuitive user interface, allowing users to easily control home lighting, air conditioning, curtains, and other devices through a touch screen, achieving intelligent living.
Monitoring devices, such as smart cameras and doorbells, have high-resolution and high brightness displays that can clearly present monitoring images, helping users detect abnormal situations in a timely manner and improve home safety.

4, Summary

The TXW500150B0-SH 5.0-inch TFT LCD display screen, as a star product of Shenzhen Tianxianwei Technology Co., Ltd., has become a leader in the display field due to its outstanding performance in display performance, interface technology, environmental adaptability, and reliability. It not only meets the needs of multiple industries such as consumer electronics, in car displays, industrial control, medical equipment, and smart homes, but also brings unprecedented visual experience and operational convenience to users.
Choosing TXW500150B0-SH means choosing a high-quality and high-performance display product. It will add core competitiveness to your device and drive the development and progress of the industry. Whether you are a device manufacturer, system integrator, or end user, TXW500150B0-SH will be your trusted partner, working together to create a better future for display technology.
