Shenzhen Tianxianwei Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | TXWEI |
| Model Number : | TXW114003S0 |
| Certification : | ISO9001 IS014001 IATF16949 |
| Price : | negotiations |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 100000pcs |
| Delivery Time : | 5-8day |
TFT 1.14 Inch 135*240 ST7789V SPI 4 BIT Interface 12 Pin LCD Screen 3.2V
1.14" inch QVGA TFT SPI LCD Description
Product Quick Details:
1. LCD Size: 1.14” inch TFT
2. Resolution: 135*240 dots
3. Viewing Angle: 12 O'Clock
4. Outline Dimension: 17.6*31*1.61 mm
5. Driver IC: ST7789V
6. Interface Type: SPI
7. Touch Panel: Without Touch Panel (Customizable)
8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
Product: | 1.14" inchTFT LCD | Resolution: | 135*240 Dots |
| Touch Screen: | Without Touch Screen ( Customizable ) | Viewing Direction: | 12 O'clock |
| Interface: | SPI 4 BIT | Pin Number: | 12Pins |
| Connection: | Plugging | Surface Luminance: | 600 cd/m² |
| Operating Temp: | -20℃ To +70℃ | Compliance: | REACH & RoHS Compliant |
Application
This 1.14” TFT LCD module is widely used in smart wearables, smart hair removal devices, smart hair clippers,
medical equipment, smart small appliances, electronic cigarettes
and other products, etc.
Product Advantages
1.Excellent display performance of background color, luminance,
viewing angle, and intensity etc. surface luminance can be reach
600 nits.
2.High quality level for industrial and medical applications.
3.Flexible to have with or without resistive touch screen. We can
support to design customized CTP(capacitive touch panel) for
customers as well. FPC is customizable too.
4.Price competitive solution with good quality among the same kinds
in the LCD industry.
5.Easy to install and easy to maintain.
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed
samples of different item numbers are acceptable.
Q2. What about the lead time?
A: For off-shelf products, in-stock samples immediately. 1-1.5 wks
for sample remaking. 4-6 wks for mass production. For design-in
products, 2-3 days for counter drawing proposal; 2 wks for sample
making at drawing approval; 5-6 wks for trial-run/mass production
at sample approval.
Q3. Do you have any MOQ limit for sample and production order?
A: Low MOQ. 3-5pcs for sample checking is available. Mass
production MOQ is normally 1K/lot. We support qty lower than MP MOQ
for trail-run/PP-run order.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive.
Airline and sea shipping also optional.
Q5. How to proceed an order for LCD module?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the LCD product?
A: Yes. Please inform us formally in design stage, and we will make
samples with your logo for your sample test and approval. At sample
approval, the mass production will follow the approved samples.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lcds with
new order for small quantity. For defective batch products, we will
repair them and resend them to you or we can discuss the solution
including re-call according to real situation.

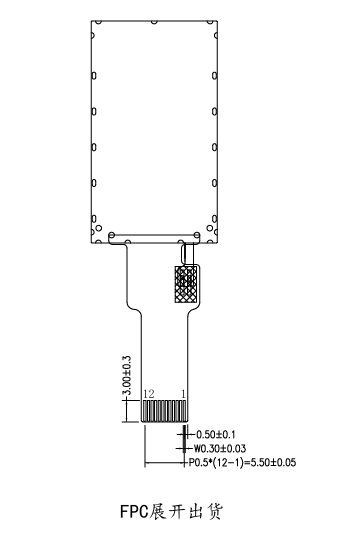

Product Drawing
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 1 white LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 2.8 | -- | 3.2 | V | -- |
| Forward current | IF | -- | 20 | -- | mA | -- |
| Luminance(With LCD) | Lv | -- | 500 | -- | cd/m2 | -- |
| LED life time | N/A | -- | 30,000 | -- | Hr | Note 1 |
LCM Pin Descriptions
| Pin No. | Symbol | LCM Functional |
| 1 | NC | No Connection. |
| 2 | SDA | input/output signal pin |
| 3 | SCK | Synchronous clock signal pin |
| 4 | RS | Display data/command selection pin |
| 5 | RESET | Reset signal input terminal. Active at ‘L’. |
| 6 | CS | Chip select signal input pin |
| 7 | GND | Gound |
| 8 | NC | No Connection. |
| 9 | VCC | Power Supply For LCD. |
| 10 | LEDK | Power supply for backlight cathode input terminal. |
| 11 | LEDA | Power supply for backlight anode input terminal. |
| 12 | GND | Gound |

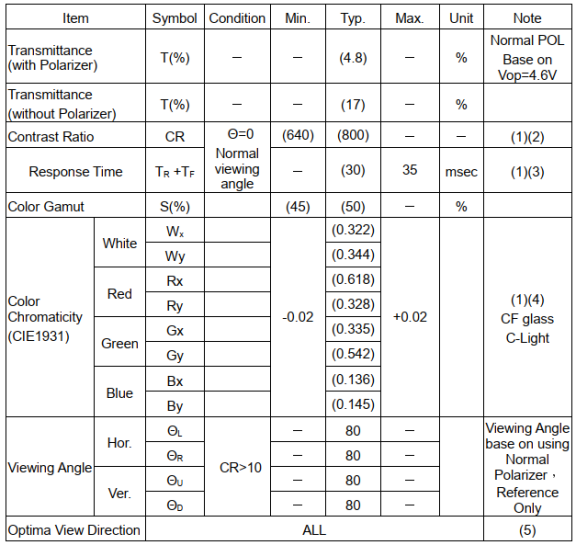

Optical Specification (HSD LC & Normal POL, Reference Only)

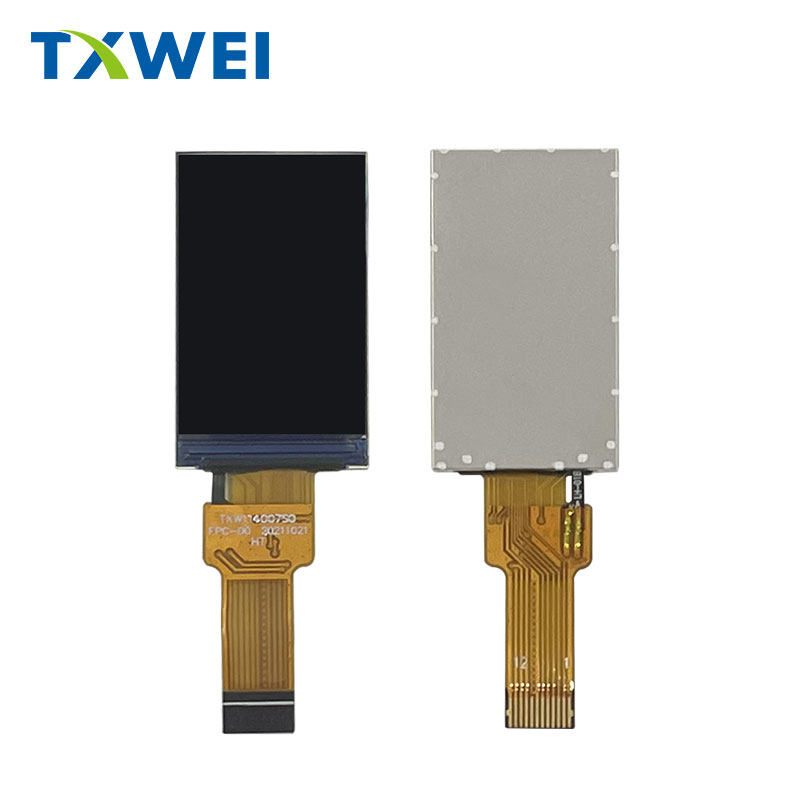

Product Image
