    IPS 19 inch TFT LCD screen with LVDS interface 1920 * 360 TFT LCD display module


    19" inch TFT LCD 1920x320 With LVDS interface and TFT LCD Display Screen


    TXW190001A0 is a 19 inch full TFT-LCD display with 1920*360 resolution (1920 horizontal by 360 vertical pixels array). This model supports LVDS interface; the supply voltage (VCC) of driving LCD panel is from is 5V.
    TXW190001A0 is a TN type TFT with 12:00 viewing angle, and with brightness 700-1500 cd/m2 (typical value). It can be operating at temperatures from 0℃ to +50℃; its storage temperatures range from -20℃ to +60℃.

    Product Quick Details:

    1. LCD Size: 19” TFT

    2. Resolution: 1920x320

    3. Viewing Angle: 12 O’clock

    4. Outline Dimension: 500*119.6*21mm

    5. Active area: 476.65*89.37

    6. Interface Type: LVDS

    7. Touch Panel: Without Touch Panel(Customizable)

    8. Temperature: Top 0°C to +50°C; Tst -20°C to +60°C

    Product:19" Inch TFTTouch Screen:Without TP(Customizable)
    Resolution:1920x320Viewing Direction:12 O'clock
    Interface:LVDSPin Number:30 Pins
    Connection:Plugging (customizable)Surface Luminance:700-1500 Cd/m2
    Operating Temp:-0℃ To +50℃Compliance:REACH & RoHS Compliant


    Customer Service

    1.Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.

    2. Your inquiry related to our products or price will be replied in 24hrs.

    3. Keep informing our customer production process and help arrange quality checking in the factory if necessary.

    4. One-year warranty for our LCD display after delivery. All the defects can be returned and replaced within warranty period.

    5. Buyer can dispatch technician to our factory for free training before delivery.

    6. We’re focusing on creating values for customers. For essential technical or commercial support, we will arrange con-call meeting, online technical service, or at-site local help, etc to meet customer different needs.


    FAQ:


    Q1. Can I have a sample order?

    A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.


    Q2. What about the lead time?

    A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.


    Q3. Do you have any MOQ limit for sample and production order?

    A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.


    Q4. How do you ship the goods and how long does it take to arrive?

    A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.


    Q5. How to proceed an order for LCD module?

    A: Firstly let us know your requirements or application.

    Secondly We quote according to your requirements or our suggestions.

    Thirdly customer confirms the samples and places deposit for formal order.

    Fourthly We arrange the production.


    Q6. Is it OK to print my logo on the LCD product?

    A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.


    Q7: Do you offer guarantee for the products?

    A: Yes, we offer 1 year warranty to our products.


    Q8: How to deal with the faulty?

    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.


    19" inch TFT LCD Display Drawing



    MECHANICAL SPECIFICATIONS


    ItemMinTyp.MaxUnitNote

    Module Size

    Horizontal(H)Typ-0.8500Typ+0.8mm( 1)
    Vertical (V)Typ-0.8119.6Typ+0.8mm
    Thickness (T)Typ-0.821Typ+0.8mm
    Bezel AreaHorizontalTyp-0.5-Typ+0.5mm
    VerticalTyp-0.5-Typ+0.5mm
    Active AreaHorizontal-476.65-mm
    Vertical-89.37-mm
    Weight---g

    PIN ASSIGNMENT


    PinSymbolDescriptionPinSymbolDescription
    1RX0[O]NOdd LVDS Signal-16RX1[E]PEven LVDS Signal+
    2RX0[O]POdd LVDS Signal+17GNDGround
    3RX1[O]NOdd LVDS Signal-18RX2[E]NEven LVDS Signal-
    4RX1[O]POdd LVDS Signal+19RX2[E]PEven LVDS Signal+
    5RX2[O]NOdd LVDS Signal-20RXC[E]NLVDS Clock-
    6RX2[O]POdd LVDS Signal+21RXC[E]PLVDS Clock+
    7GNDGround22RX3[E]NEven LVDS Signal-
    8RXC[O]NLVDS Clock-23RX3[E]PEven LVDS Signal+
    9RXC[O]PLVDS Clock+24GNDGround
    10RX3[O]NOdd LVDS Signal-25NCNo Connection
    11RX3[O]POdd LVDS Signal+26NCNo Connection
    12RX0[E]NEven LVDS Signal-27NCNo Connection
    13RX0[E]PEven LVDS Signal+285VDC power supply
    14GNDGround295VDC power supply
    15RX1[E]NEven LVDS Signal-305VDC power supply

    LCD ELETRONICS SPECIFICATION


    ItemSymbolValueUnitNote
    Min.Typ.Max.
    Power Supply VoltageVcc4.55.05.5V-
    Ripple VoltageVRP--300mV-
    Rush CurrentIRUSH-23A(2)

    Power Supply Current

    White----mA(3)a
    Black----mA(3)
    Vertical Stripe----mA(3)c
    Power ConsumptionPLCD-34Watt(4)(6)
    LVDS differential input voltageVid200600mA
    LVDS common input voltageVic1.01.21.5V
    Logic High Input VoltageVIH0.1V
    Logic Low Input VoltageVIL-0.1V

    BACKLIGHT UNIT


    ParameterSymbolValueUnitNote
    Min.Typ.Max.
    LED Light Bar Input Voltage Per Input Pin

    VPIN


    -


    55.4


    60


    V

    ( 1)

    Duty= 100%

    LED Light Bar Current Per Input PinIPIN

    -


    -

    360mA( 1),(2),(4) Duty= 100%
    LED Life TimeLLED50000Hrs(3)

    Power Consumption


    PBL


    -


    21.6


    W

    ( 1)

    Duty= 100%,


    OPTICAL SPECIFICATIONS


    ItemSymbolConditionMin.Typ.Max.UintNote

    Color

    Chromaticity

    (CIE)

    RedRx

    Normal θx=0° , θY =0°


    Viewing Angle


    Typ – 0.03

    0.655

    Typ + 0.03


    -


    ( 1),(5)

    Ry0.328
    GreenGx0.303
    Gy0.607
    BlueBx0.140
    By0.088
    WhiteWx0.311
    Wy0.326

    Center Luminance of White

    (Center of Screen)

    LC13001500

    -

    cd/m2(4),(5)
    Contrast RatioCR9001200--(2),(5)

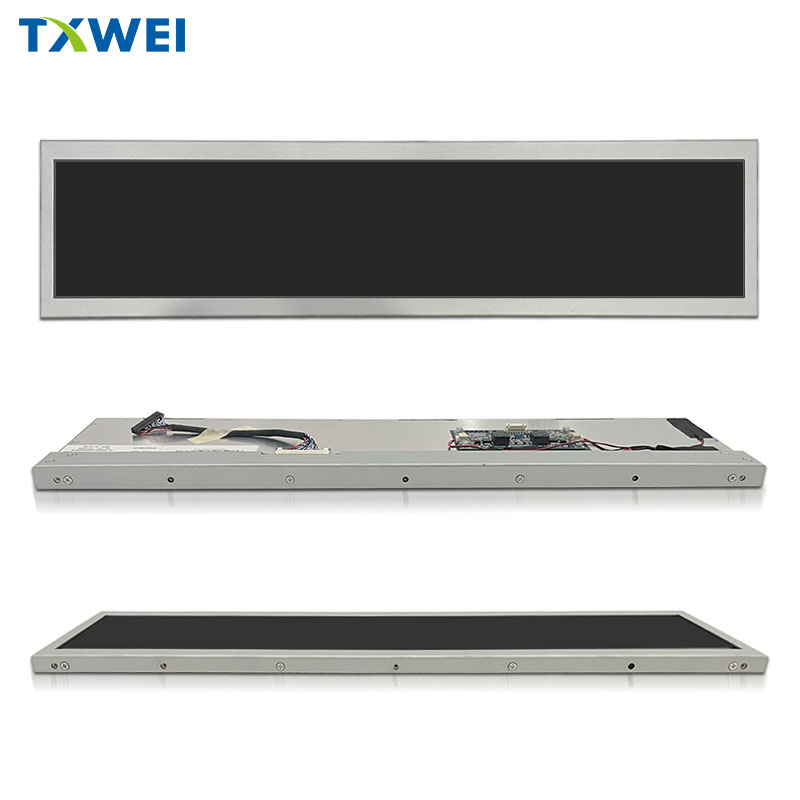

    19" INCH TOUCH LCD MODULE REAL PRODUCT IMAGE
