TXW450036B0-LA: 4.45-inch high-definition touch screen, capable of demonstrating multi scene applications
Product Customization Services for the Industrial Touch Panel:
Brand Name: TXWEI
Model Number: TXW450036B0-LA
Place Of Origin: Shenzhen
Certification: CE ROHS FCC
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Cardboard
Delivery Time: 16
Payment Terms: L/C TT D/P
Supply Ability: 10000pcs
Lcm pin n count: 60pin
Pixel Pitch (W*H): 0.0513*0.0513
Number of pixels: 1920*3RGB(H)X1080(V)
Backligh voltage: 16.8-19.2V
LCM interface: LVDS 8 Bit Interface
Keywords: Industrial Touch Panel, Industrial Touch Screen Panel, Interactive Touch Panel
Multi scenario adaptation, widely applicable

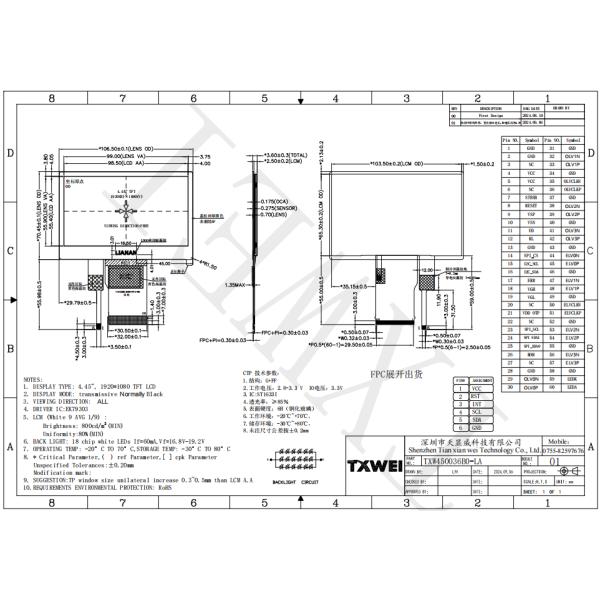

Module Function Description
| Pin No. | Symbol | LCM Functional | Notes |
| 1 | GND | Power Ground |
|
| 2 | GND | Power Ground |
|
| 3 | NC | No Connection. |
|
| 4 | VCC 3.3V | Power Supply For LCD. |
|
| 5 | VCC 3.3V | Power Supply For LCD. |
|
| 6 | NC | No Connection. |
|
| 7 | STBYB | Standby mode, Normally pulled high. |
|
| 8 | RESET 3.3V | Reset Signal input pin. |
|
| 9 | VSP 5.8V | External input voltage |
|
| 10 | VSN -5.8V | External input voltage |
|
| 11 | U/D | Gate Up or Down scan control.Normally pull low. |
|
| 12 | R/L | Source Right or Left sequence control.Normally pull high. |
|
| 13 | GND | Power Ground |
|
| 14 | SPI-CS | Chip selection signal(SPI). |
|
| 15 | I2C-SCL | Serial clock signal(I2C). |
|
| 16 | I2C-SDA | Serial data input/output pin(I2C). |
|
| 17 | ERR | Output pin for error detection. |
|
| 18 | VGH | No Connection. |
|
| 19 | VGL | No Connection. |
|
| 20 | NC | No Connection. |
|
| 21 | VDD-OTP | Power supply for OTP circuit
|
|
| 22 | NC | No Connection. |
|
| 23 | SP-SCL | Serial clock signal(SPI). |
|
| 24 | SP-SDAI | Serial data input/output pin(SPI). |
|
| 25 | SP-SDAO | Serial data output pin(SPI). |
|
| 26 | ROM | MTP reload per 30 frames: |
|
| 27 | NC | No Connection. |
|
| 28 | GND | Power Ground |
|
| 29 | OLV0N | Negative LVDS differential data0 inputs(ODD) |
|
| 30 | OLV0P | Positive LVDS differential data0 inputs(ODD) |
|
| 31 | GND | Power Ground |
|
| 32 | OLV1N | Negative LVDS differential data1 inputs(ODD) |
|
| 33 | OLV1P | Positive LVDS differential data1 inputs(ODD) |
|
| 34 | GND | Power Ground |
|
| 35 | OLVCLKN | Negative LVDS differential clock inputs(ODD) |
|
| 36 | OLVCLKP | Positive LVDS differential clock inputs(ODD) |
|
| 37 | GND | Power Ground |
|
| 38 | OLV2N | Negative LVDS differential data2 inputs(ODD) |
|
| 39 | OLV2P | Positive LVDS differential data2 inputs(ODD) |
|
| 40 | GND | Power Ground |
|
| 41 | OLV3N | Negative LVDS differential data3 inputs(ODD) |
|
| 42 | OLV3P | Positive LVDS differential data3 inputs(ODD) |
|
| 43 | GND | Power Ground |
|
| 44 | ELV0N | Negative LVDS differential data0 inputs(EVEN) |
|
| 45 | ELV0P | Positive LVDS differential data0 inputs(EVEN) |
|
| 46 | GND | Power Ground |
|
| 47 | ELV1N | Negative LVDS differential data1 inputs(EVEN) |
|
| 48 | ELV1P | Positive LVDS differential data1 inputs(EVEN) |
|
| 49 | GND | Power Ground |
|
| 50 | ELVCLKN | Negative LVDS differential clock inputs(EVEN) |
|
| 51 | ELVCLKP | Positive LVDS differential clock inputs(EVEN) |
|
| 52 | GND | Power Ground |
|
| 53 | ELV2N | Negative LVDS differential data2 inputs(EVEN) |
|
| 54 | ELV2P | Positive LVDS differential data2 inputs(EVEN) |
|
| 55 | GND | Power Ground |
|
| 56 | ELV3N | Negative LVDS differential data3 inputs(EVEN) |
|
| 57 | ELV3P | Positive LVDS differential data3 inputs(EVEN) |
|
| 58 | GND | Power Ground |
|
| 59 | LEDK | Power supply for backlight cathode input terminal. |
|
| 60 | LEDA | Power Supply For LED Backlight Anode Input. | |
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +80°C / 96H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
|
| 2 | Low Temp. Storage | -30°C / 96H | |
| 3 | High Tempe. Operating | +70°C / 96H | |
| 4 | Low Tempe. Operating | -20°C / 96H | |
| 5 | High Temperature /Humidity storage | 60°C x 90%RH /96H | |
| 6 | Thermal and cold shock | Static state, -20℃(30min) ~70℃ (30min),10 cycles |
Tianxianwei Technology provides full technical support and comprehensive after-sales support for TXW450036B0-LA with a professional R&D team, first-class production control, and a 99.7% shipment yield rate. Choosing TXW450036B0-LA means choosing reliable quality and professional service, ushering in a new era of high-definition touch control for smart devices.
|
|
