5.5 Inch TFT Display Manufacturer , Portrait Type 5.5 Inch PCAP TFT Display

Ask Lasest Price
Brand Name :	TXWEI
Model Number :	TXW550039N0-CTP
Certification :	ISO9001 IS014001 IATF16949
Price :	negotiate
Supply Ability :	10000pcs
Delivery Time :	16 days

Add to Cart

Product Details
Company Profile

5.5 Inch TFT Display Manufacturer , Portrait Type 5.5 Inch PCAP TFT Display

TFT LCD Touch 5.5" Inch HD 720x1280 Portrait IPS Full Viewing Angle TFT With MIPI Interface With CTP LCD Module

5.5 Inch TFT Display Manufacturer, Portrait Type 5.5 Inch PCAP TFT Display Introduction

Features

This 5.5 inch TFT LCD display TXW550039N0-CTP 3 is a diagonal size of 5.5 inches and a resolution of 720x1280 pixels.
This 5.5-inch LCD display module is equipped with an ST7703 integrated circuit, which includes controller and driver IC functions, and supports MIPI interfaces.
This 5.5 inch PCAP TFT display has the power supply voltage (Vdd) from 21V.
This 5.5 inch LCD screen is IPS type display with a full view angle 85/85/85/85 max.
this 5.5 inch portrait TFT TXW550039N0-CTP is displayed in portrait mode with a brightness of 350 nits, and can be customized
This 5.5-inch TFT display is equipped with a PCAP (projection capacitive) touch panel, featuring ST7703 IC, I2C interface, and 5-point touch technology, providing a responsive and user-friendly experience.
This 5.5-inch PCAP TFT display screen can operate at temperatures ranging from -20 ℃ to+70 ℃; Its storage temperature is between -30 ℃ and+80 ℃.
Whether used indoors or outdoors, this 5.5-inch TFT LCD display can meet various display requirements. It is a multifunctional and high-performance solution suitable for industrial Handheld PDA, POS machine, surveying instrument, medical control, security, education display, equipment control panel and other fields.

Product Information

Product:	5.5 Inch TFT LCD Display
Resolution:	720x1280 Dots
Interface:	MIPI
Viewing Direction:	IPS All Viewing Angle(85/85/85/85)
Touch Screen:	PCAP
PCAP Structure:	G+FF
CTP Controller:	GT911
LCD Controller:	ST7703
Cover Glass Dimension:	Customizable
Connection:	ZIF FPC
Pin Number:	25 Pins
Surface Luminance:	350 Cd/m2(nits)
LED Lifetime:	30,000 Hours
Compliance:	CE & FCC & RoHS Compliant

5.5 Inch TFT Display Manufacturer, Portrait Type 5.5 Inch PCAP TFT Display Drawing

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+60	°C
LCM Storage Temperature	T_STG	-30	+70	°C
TP Operating Temperature & Humidity(20% ~ 90%RH)	T_OPR	-20	+60	°C
TP SStorage Temperature & Humidity(20% ~ 90%RH)	T_STG	-30	+70	°C
Humidity	RH	-	90	%

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with white 14 LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	19.6	--	22.4	V	--
Forward current	I_F	--	40	--	mA	--
Luminance(With LCD+CTP)	Lv	--	TBD	--	cd/m²	--
LED life time	N/A	--	30,000	--	Hr	Note 1

Note:

(1)The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.

Module Function Description

Pin No.	Symbol	LCM Functional
1-2	LEDA	Power supply for backlight anode input terminal.
3-4	LEDK	Power supply for backlight cathode input terminal.
5	GND	Power Ground
6	IOVCC 1.8V	I/O and interface power supply (IOVCC):1.65V to 2.0V
7	VCI 2.8V	Analog power supply (VCI):2.5V to 3.3V
8	RESET	Reset signal input terminal. Active at ‘L’.
9	TE	Frame head pulse for tearing effect.
10	LCD-ID	ID read PIN for ID circuit.
11	GND	Power Ground
12	CLKP	High speed interface clock differential signal input/output pins
13	CLKN	High speed interface clock differential signal input/output pins
14	GND	Power Ground
15	D0P	High speed interface data differential signal input/output pins
16	D0N	High speed interface data differential signal input/output pins
17	GND	Power Ground
18	D1P	High speed interface data differential signal input/output pins
19	D1N	High speed interface data differential signal input/output pins
20	GND	Power Ground
21	D2P	High speed interface data differential signal input/output pins
22	D2N	High speed interface data differential signal input/output pins
23	GND	Power Ground
24	D3P	High speed interface data differential signal input/output pins
25	D3N	High speed interface data differential signal input/output pins

Pin No.	Symbol	TP Functional
1	CTP_VCC 3.3V	Touch panel Power supply 2.8~3.3V
2	CTP_RST 1.8V	Touch panel reset
3	CTP_SCL 1.8V	Touch panel I2C clock
4	CTP_SDA 1.8V	Touch panel I2C data
5	CTP_INT 1.8V	Touch panel interrupt output
6	GND	Power Ground

Reliability Test Item

No.	Test Item	Test Condition	Notes
1	High Temp. Storage	+70°C / 96H	1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 96H
3	High Tempe. Operating	+60°C / 96H
4	Low Tempe. Operating	-20°C / 96H
5	High Temperature /Humidity storage	50°C x 90%RH /96H
6	Thermal and cold shock	Static state, -20℃(30min) ~60℃ (30min),10 cycles

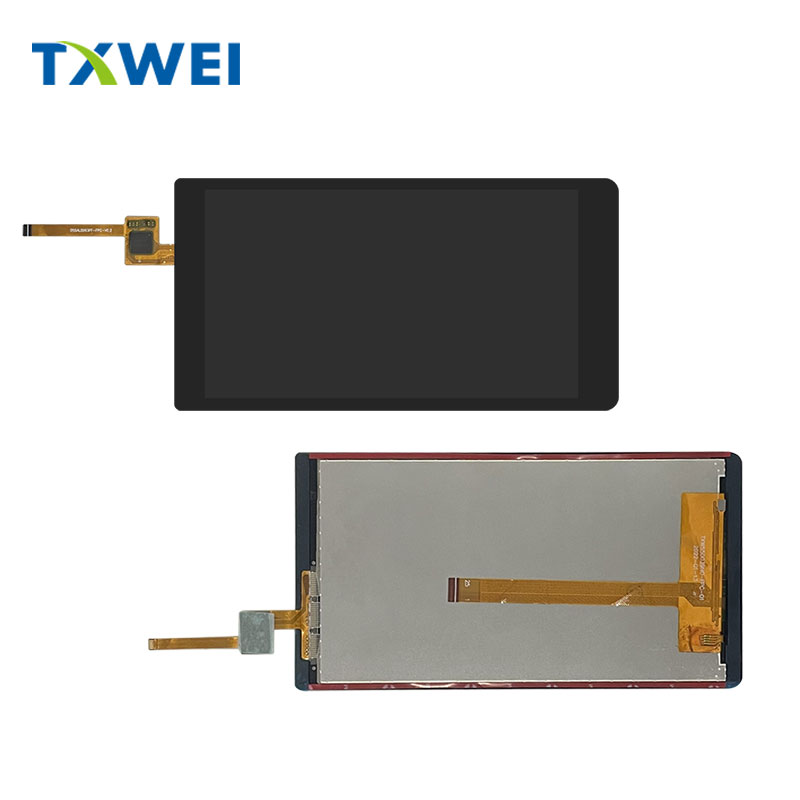

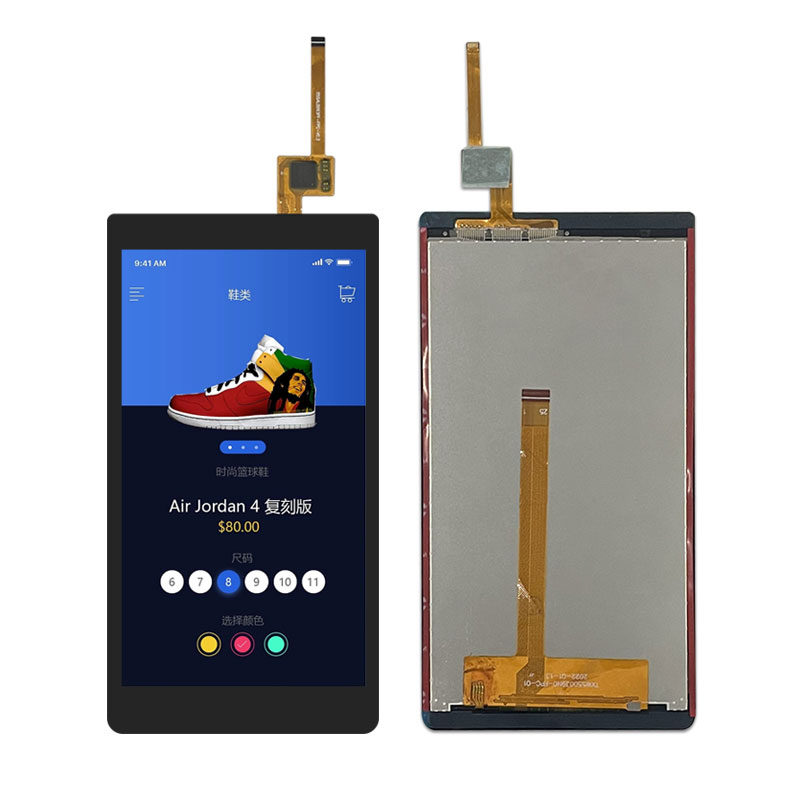

5.5 Inch TFT Display Manufacturer, Portrait Type 5.5 Inch PCAP TFT Display Image
