7-inch MIPI TFT LCD 800 * 1280 dot capacitive touch screen LCD display

Ask Lasest Price
Brand Name :	TXWEI
Model Number :	TXW700071S0-CTP
Certification :	CE ROHS FCC
Price :	negotiate
Delivery Time :	16
Payment Terms :	L/C TT D/P
Supply Ability :	10000pcs

Add to Cart

Product Details
Company Profile

7-inch MIPI TFT LCD 800 * 1280 dot capacitive touch screen LCD display

About this product 7-inch MIPI TFT LCD display TXW700071S0-CTP with 25 pins

Introducing a 7" MIPI TFT LCD with a 800*1280 resolution, capacitive touch screen,and IPS technology with 550cd/m² brightness, here's a detailed product overview:

Display specifications:

Size: 7 inches, providing a spacious screen size for detailed viewing and user interaction.
Resolution: 800 * 1280 pixels, providing full HD clarity for clear images and text, making it suitable for high-definition content

Display technology:

TFT (Thin Film Transistor): ensures fast response time and high contrast, providing vivid and realistic colors.
IPS (In Plane Switching): Provides a wide viewing angle to ensure consistent color and brightness in all directions, making it an ideal choice for collaborative environments.

Touch screen function:

Capacitive touch screen: supports multi touch gestures, achieving intuitive and responsive user interaction.

Brightness and Contrast:

Brightness: 550cd/m ², ensuring that the monitor is visible in bright environments and direct sunlight, making it suitable for outdoor or well lit indoor applications.
High contrast: Although not specified, IPS panels typically provide high contrast, enhancing the depth and clarity of displayed content.

Design and durability:

Industrial grade structure: capable of withstanding the harsh tests of continuous use, with a robust design that can withstand the requirements of professional and commercial environments.
Wide temperature range: It operates smoothly within a wide temperature range, ensuring reliability under various climatic conditions.

Application:

Very suitable for fields such as security access control, mobile payment, industrial security, instrumentation, medical equipment, smart home, Internet of Things, household appliances, etc.

This 7-inch MIPI TFT LCD display is an excellent choice for those seeking high-resolution, high brightness, touch enabled displays for various professional and commercial applications.

If you need more information or request a quote, please contact us!

Features

Characteristics	Size	7 inch
	Resolution	800*3RGB(H)X1280(V)
	Interface	MIPI Interface
	Color Depth	16.7M
	Display Spec. Pixel pitch (mm)	0.11775(H) *0.11775(V)
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	Normally Black
	TP Driver IC	GT9271
	LCD Surface Treatment	Anti-glare coating:(3H)
	Viewing Direction	U/D/L/R:85/85/85/85
	Contrast Ratio	550(TYP.)
	Color gamut	72%
	Luminance(cd/m²)	550(TYP.)
	Lcm pin n count	25pin
	LED Numbers	24 LEDS
	LCM Driver IC	ILI9881C
Mechanical	Mechanical OutlineSize(WHT)	107.8(W) ×187.67(H) ×4.45(T)mm
	Active area	94.2(H) * 150.72(V)
	With /Without CTP	With CTP

Product Drawing

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+60	°C
LCM Storage Temperature	T_STG	-30	+70	°C
TP Operating Temperature & Humidity(20% ~ 90%RH)	T_OPR	-20	+60	°C
TP SStorage Temperature & Humidity(20% ~ 90%RH)	T_STG	-30	+70	°C
Humidity	RH	-	90	%

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 24 white LEDs. The characteristics of the back-light

are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	8.4	--	9.9	V	--
Forward current	I_F	--	160	--	mA	--
Luminance(With LCD+CTP)	Lv	--	TBD	--	cd/m²	--
LED life time	N/A	--	30,000	--	Hr	Note 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED.

Module Function Description

Pin No.	Symbol	LCM Functional
1	VDD 3.3V	power supply for DC/DC circuit
2	VDD 3.3V	power supply for DC/DC circuit
3	RESET 3.3V	Reset pin. Setting either pin low initializes the LSI
4	GND	Power Ground
5	MIPI_D0N	Negative polarity of low voltage differential data 0 signal
6	MIPI_D0P	Positive polarity of low voltage differential data 0 signal
7	GND	Power Ground
8	MIPI_D1N	Negative polarity of low voltage differential data 1 signal
9	MIPI_D1P	Positive polarity of low voltage differential data 1 signal
10	GND	Power Ground
11	MIPI_CLKN	Negative polarity of low voltage differential clock signal
12	MIPI_CLKP	Positive polarity of low voltage differential clock signal
13	GND	Power Ground
14	MIPI_D2N	Negative polarity of low voltage differential data 2 signal
15	MIPI_D2P	Positive polarity of low voltage differential data 2 signal
16	GND	Power Ground
17	MIPI_D3N	Negative polarity of low voltage differential data 3 signal
18	MIPI_D3P	Positive polarity of low voltage differential data 3 signal
19	GND	Power Ground
20	PWM	LCD backlight control PWM output pin
21	GND	Power Ground
22	LEDK	Power supply for backlight cathode input terminal.
23	LEDK	Power supply for backlight cathode input terminal.
24	LEDA	Power supply for backlight anode input terminal.
25	LEDA	Power supply for backlight anode input terminal.

CTP PIN Description:

Pin No.	Symbol	TP Functional
1	CTP_RST 3.3V	Touch panel reset
2	CTP_INT 3.3V	Touch panel interrupt output
3	CTP_SDA 3.3V	Touch panel I2C data
4	CTP_SCL 3.3V	Touch panel I2C clock
5	GND	Power Ground
6	CTP_VDD 3.3V	Touch panel I/O PWR supply

Reliability Test Item

No.	Test Item	Test Condition	Notes
1	High Temp. Storage	+70°C / 96H	1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 96H
3	High Tempe. Operating	+60°C / 96H
4	Low Tempe. Operating	-20°C / 96H
5	High Temperature /Humidity storage	50°C x 90%RH /96H
6	Thermal and cold shock	Static state, -20℃(30min) ~60℃ (30min),10 cycles

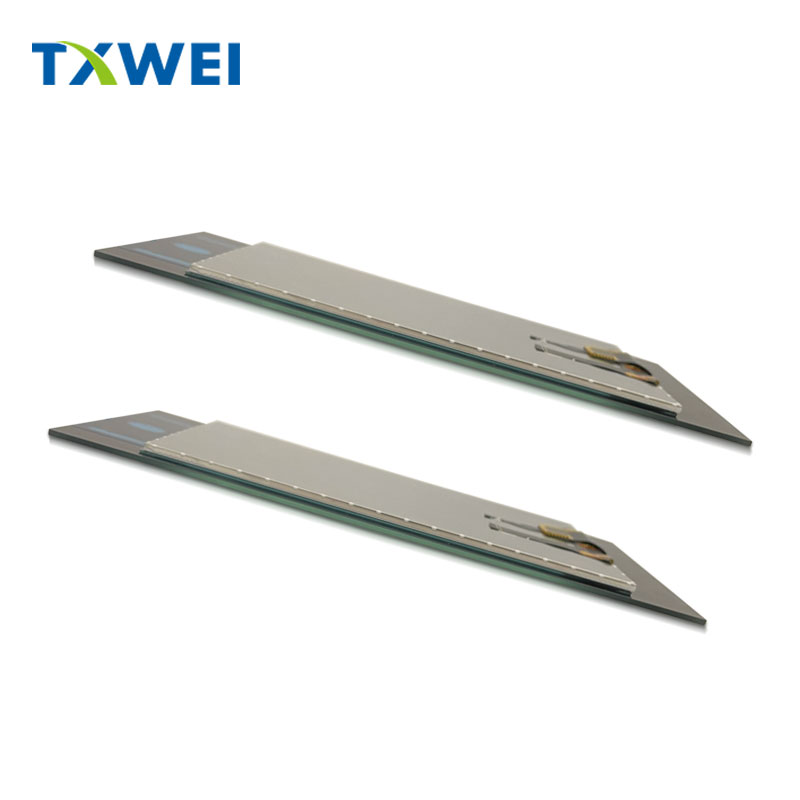

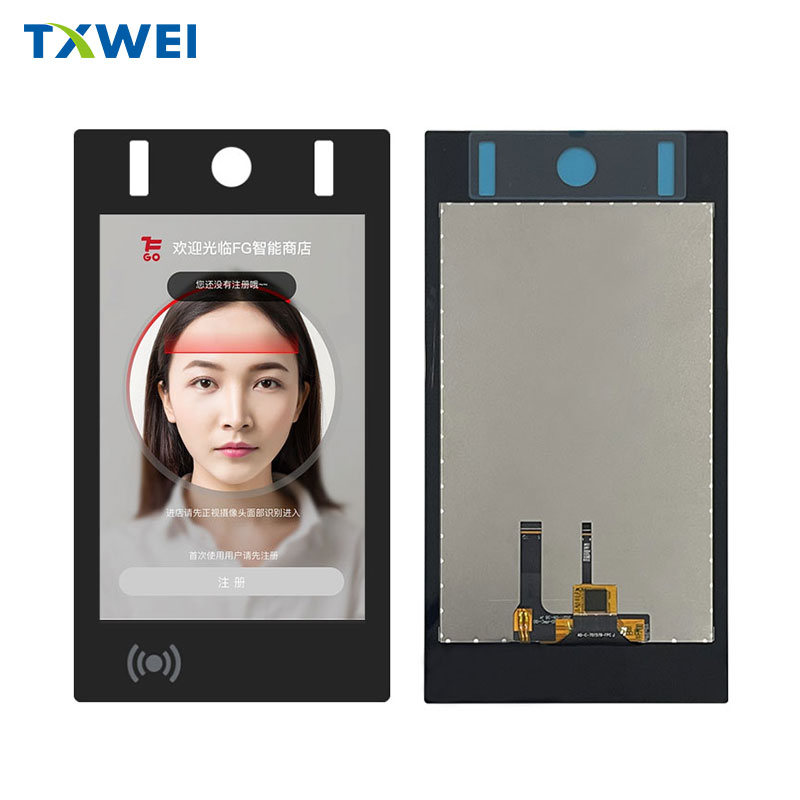

Product Image
