7-inch TFT LCD display 1024 * 600 dots 50 pin RGB interface HX8282A11 custom touch screen

7" TFT 1024*600 dots product introduction

Model No. : TXW700028N0

TXW700028N0 is a 7-inch TN transmissive color active matrix TFT LCD display with a resolution of 1024 * 600 dots. The module size is 164.9 (width) X 100 (height) X 3.5 (depth) mm; Effective area 154.21 (width) X85.92 (height) mm. This TFT monitor supports a 24 bit RGB interface. With the help of anti glare display surfaces, the screen does not reflect light and maintains better image quality.

The contrast ratio of this module is 500:1 (typical value), and the brightness is 800 nits (typical value). The power supply voltage range of LCM is 8.9-10V, with a typical value of 9.5V. This module operates within a temperature range of -30 to+85 ℃ and stores temperatures between -30 to+85 ℃.

Features

Item	Specification
LCD size	7.0 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	1024*3RGB(H)X600(V)
Display mode	Normally white, Transmissive
Dot pitch	0.1506*0.1432mm
Active area	154.21(H) * 85.92(V)mm
Module size	164.91003.5mm
Surface treatment	Anti-Glare
Color arrangement	RGB-stripe
LCM Driver IC	HX8282A11
Backlight current	200-280mA
Lumens degrees	800cd/m²

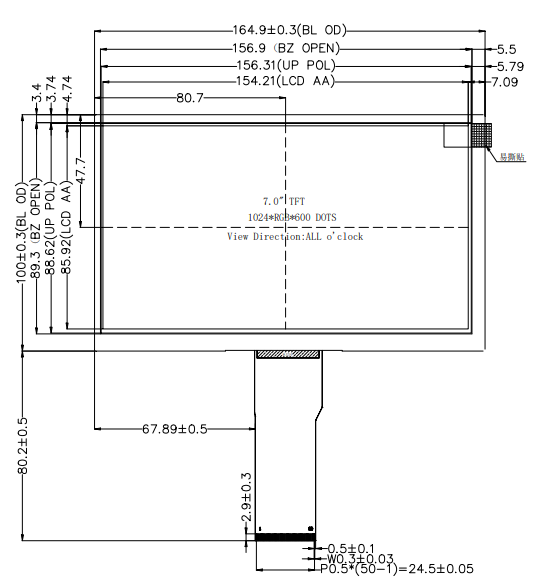

7" TFT 1024x600 dots Product Drawing

Module Function Description

Pin No.	Symbol	LCM Description
1	LEDA	Power Supply For LED Backlight Anode Input.
2	LEDA	Power Supply For LED Backlight Anode Input.
3	LEDK	Power supply for backlight cathode input terminal.
4	LEDK	Power supply for backlight cathode input terminal.
5	GND	Power ground
6	VCOM	Common Voltage
7	DVDD	Power for Digital Circuit 3.3V
8	MODE	DE/SYNC mode select. MODE=H:DE mode;MODE=L:SYNC mode
9	DE	Data enable signal in RGB I/F mode 1
10	VS	Vertical sync. Signal in RGB I/F
11	HS	Horizontal sync. Signal in RGB I/F
12~19	B7~B0	8 bit data bus display blue data
20~27	G7~G0	8 bit data bus display green data
28~35	R7~R0	8 bit data bus display red data.
36	GND	Power ground
37	DCLK	Pixel clock signal in RGB I/F
38	GND	Power ground
39	L/R	Left / right selection
40	U/D	Up/down selection
41	VGH	Gate ON Voltage
42	VGL	Gate OFF Voltage
43	AVDD	Power for Analog Circuit
44	RESET	Global reser pin
45	NC	No connection
46	VCOM	Common Voltage
47	DITHB	Dithering function. Dithering function. DITHER = H:Enable internal dithering function; DITHER = L:Disable internal dithering function
48	GND	Power ground
49	NC	No connection
50	NC	No connection

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+70	°C
LCM Storage Temperature	T_STG	-30	+80	°C
Humidity	RH	10	90	%

TFT DC Characteristics

Characteristics	Symbol	Min.	Typ.	Max.	Unit	Note
TFT OperationFrame rate	Hz	--	60	--	Hz
Supply Voltage for(DC/DC)	VDD	3.0	3.3	3.6	V
TFT Gate ON Voltage	VGH	17	18	19	V	Note 2
TFT Gate OFF Voltage	VGL	-6.5	-6	-5.5	V	Note 2
TFT Common Voltage	Vcom	3.0	3.15	3.3	V	Note 1
AVDD	Avdd	8.9	9.0	9.1	V	Note 3

Note 1: VCOM value should be adjusted by different condition to optimize Flicker Value.
Note 2: VGH and VGL are the operating voltages of TFT gate.
Note 3: Adjust the contrast, make the color bigger and darker, and make the color smaller and lighter.

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 30 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	8.8	--	10	V	-
Forward current	I_F	--	200	--	mA	-
Luminance(With LCD+CTP)	Lv	--	650	--	cd/m²	-
LED life time	N/A	--	30,000	--	Hr	Note 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED

Reliability Test Item

No.	Test Item	Test Condition	Notes
1	High Temp. Storage	+80°C / 96H	1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 96H
3	High Tempe. Operating	+70°C / 96H
4	Low Tempe. Operating	-20°C / 96H
5	High Temperature /Humidity storage	60°C x 90%RH /96H
6	Thermal and cold shock	Static state, -20℃(30min) ~70℃ (30min),50 cycles

7" TFT 1024x600 dots Product Image
