The TXW700102S0 industrial grade TFT display is a 7-inch IPS full view TFT LCD display with a resolution of 720 * 1280 pixels. No touch, customizable touch screen and cover glass sizes. The external dimensions of the LCD module are 91.44 (W) x 165.91 (H) x 2.35 mm, and the AA size is 86.94 (H) x 154.56 (V) mm. The LCM interface is a MIPI interface with 40 pins.
The surface brightness of the TXW700102S0 LCD display is 370cd/m ² (nits). Please contact our sales team for more details. This 7-inch TFT LCD display module is widely used in handheld PDAs, learning light displays, mobile payments, industrial security access control, instrumentation, medical equipment, smart homes, the Internet of Things, household appliances, and other fields.
| Keywords: | 7 Inch Industrial TFT Display |
| Resolution: | 720*1280Dots |
| TFT LCD Interface: | MIPI |
| Touch Screen: | without( customizable) |
| Pins: | 40 |
| Surface Luminance: | 370 Cd/m² |
LCM Driver IC: | ILI9881C |
| Outline Dimension: | 91.44(W) x165.91(H) x 2.35Mm |
| Active Area: | 86.94(H) × 154.56(V)Mm |
| Viewing Direction: | IPS All Viewing Angle(80/80/80/80) |
| Operating Temp.: | -20℃ To +70℃ |
| LED Lifetime: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | CE & FCC& RoHS Compliant |

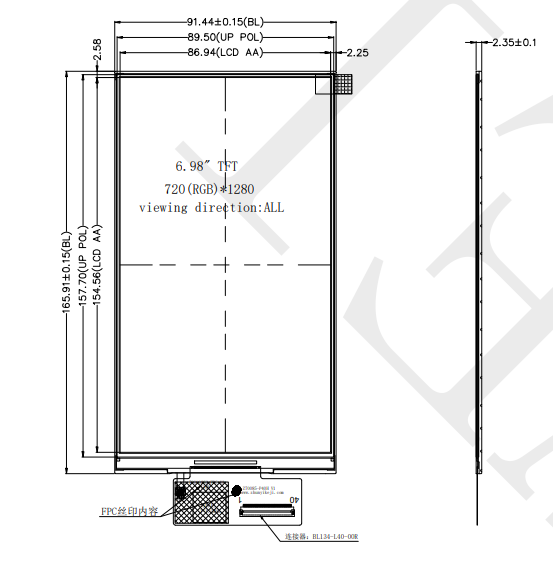

7 Inch Industrial Grade TFT Display 720*1280 Dots RGB Interface With Product Drawing
Module Function Description
| Pin No | Symbol | LCM Functional |
| 1-2 | VDD | Power Supply For LCD. |
| 3-4 | VDDIO | power supply for the I/O circuit |
| 5 | RST | Reset Signal input pin |
| 6 | TE | Frame head pulse for tearing effect |
| 7 | GND | Power Ground |
| 8 | MIPI_D0N | High speed interface data differential signal input/output pins |
| 9 | MIPI_D0P | High speed interface data differential signal input/output pins |
| 10 | GND | Power Ground |
| 11 | MIPI_D1N | High speed interface data differential signal input/output pins |
| 12 | MIPI_D1P | High speed interface data differential signal input/output pins |
| 13 | GND | Power Ground |
| 14 | MIPI_CLKN | High speed interface clock differential signal input pins/output pins |
| 15 | MIPI_CLKP | High speed interface clock differential signal input pins/output pins |
| 16 | GND | Power Ground |
| 17 | MIPI_D2N | High speed interface data differential signal input/output pins |
| 18 | MIPI_D2P | High speed interface data differential signal input/output pins |
| 19 | GND | Power Ground |
| 20 | MIPI_D3N | High speed interface data differential signal input/output pins |
| 21 | MIPI_D3P | High speed interface data differential signal input/output pins |
| 22 | GND | Power Ground |
| 23-24 | NC | NC |
| 25 | GND | Power Ground |
| 26-29 | NC | NC |
| 30 | GND | Power Ground |
| 31-32 | LEDK | Power supply for backlight cathode input terminal |
| 33-38 | NC | NC |
| 39-40 | LEDA | Power supply for backlight anode input terminal |
7 Inch Industrial Grade TFT Display 720*1280 MIPI Interface With Product Image
