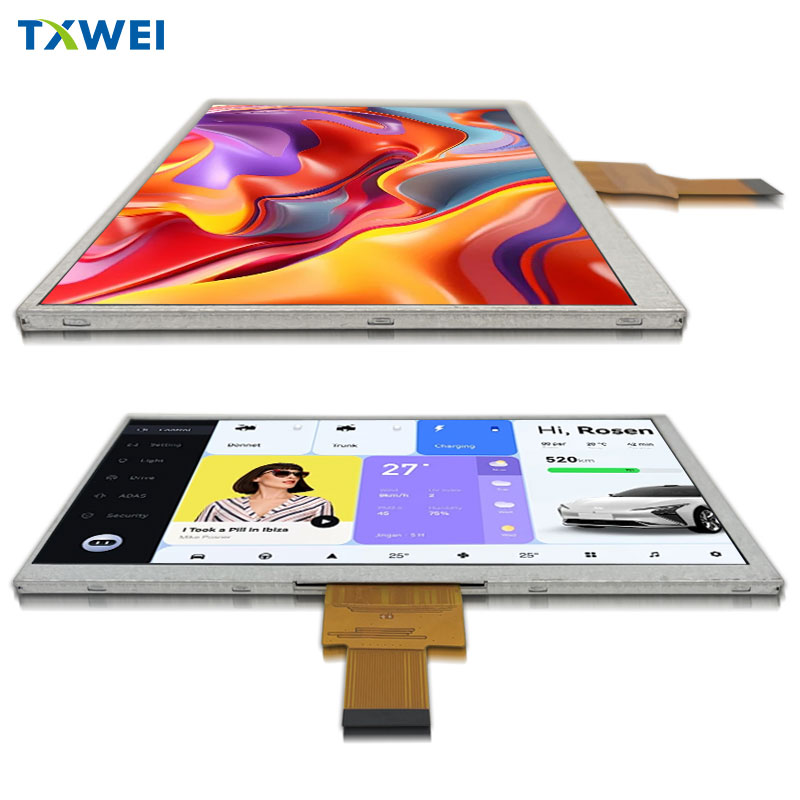

7-inch LCD screen 30 pin 1024 * 600 TFT display MIPI interface product introduction

TXW700101N0 is a 7-inch 16:9 ratio full-color TFT LCD display screen with a resolution of 1024 * 600, IPS full view high-definition high brightness display effect, wide temperature range of -30+85 working temperature, and high brightness display of 450cd/m².It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.

Features:

• Product Name: 7 Inch LCD Module
• Size: 7.0
• Storage Temperature: -30+85
• Active Area: 154.21(H) * 85.92(V)
• Number of Pixels: 1024*3RGB(H)X600(V)
• LCM Interface: MIPI Interface

7 Inch TFT LCD Monitor, 7 Inch LCD Touch Screen Monitor, 7 Inch LCD Module Screen

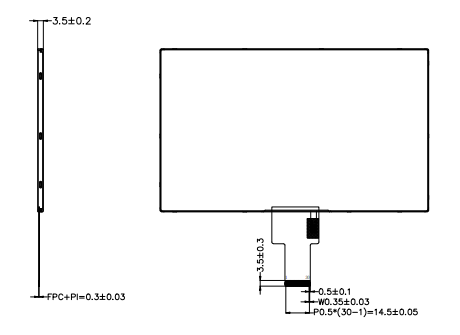

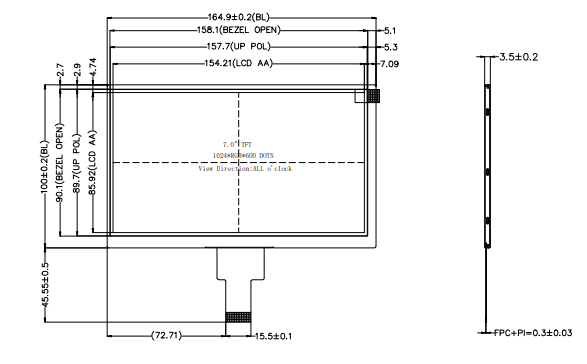

7 inch MIPI Interface TFT Display Module Drawing

TFT features:
Structure: TFT PANNEL+IC +FPC+BL

ALL O'CLOCK Type LCD

1024 dot-segment and 600 dot-common outputs

16.7M Color can be selected by software

White LED back light
4 lane MIPl interface
TP interface: 12C

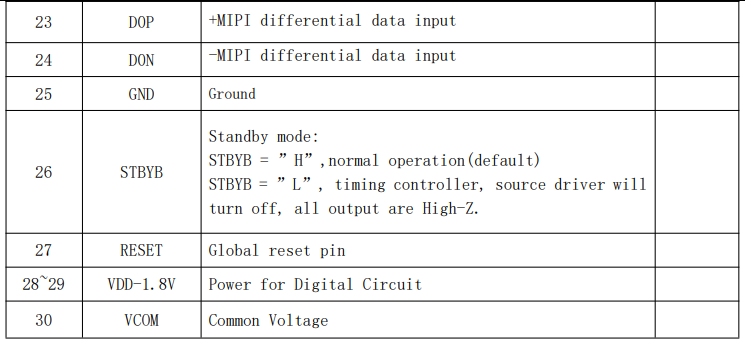

LCM PIN Description:

Optical Characteristies

*Note (1)Definition of Contrast Ratio (CR):
The contrast ratio can be calculated by the following expression.Contrast Ratio (CR)=L255/LO
L 255 : Luminance of gray level 255
L 0: Luminance of gray level 0

TFT DC Characteristics

Note: (1) Vcom must be adjusted to optimize display quality: cross-talk, contrast ratio and etc.

(2)VGH is TFT gate operating voltage

(3) VGL is TFT gate operating voltage

(4)Environmental condition:25+5

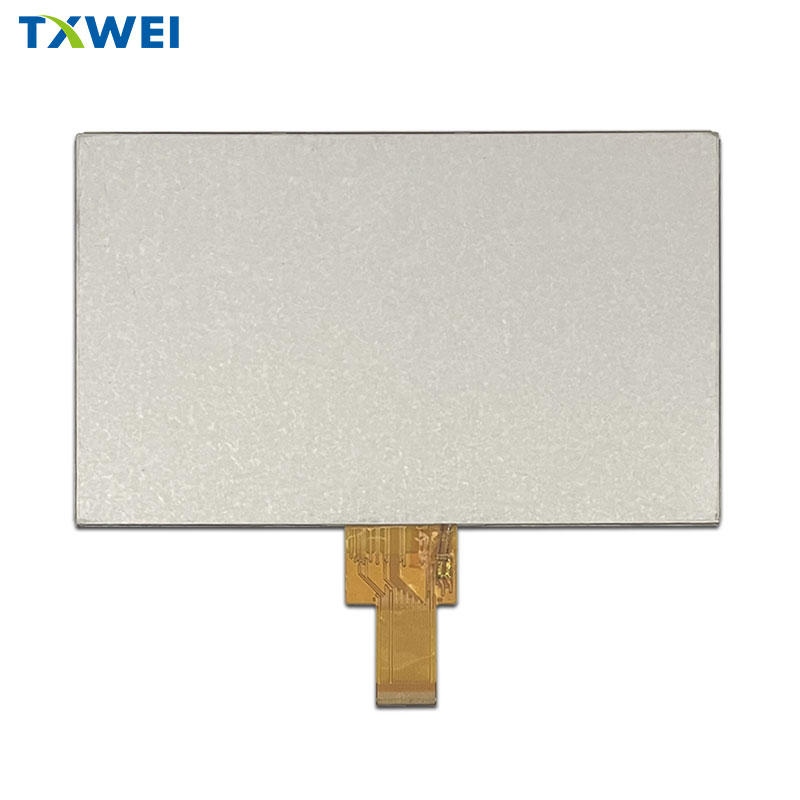

7 inch RGB TFT Display Module Product Image
