Shenzhen Tianxianwei Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | TXWEI |
| Model Number : | TXW100048N2 |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Delivery Time : | 16 |
| Payment Terms : | L/C TT D/P |
| Supply Ability : | 10000pcs |
| Product: | 10.1 Inch Industrial TFT Display |
| Resolution: | 1280*800 |
| Surface Luminance: | 350cd/m²(nits) |
| Interface: | LVDS 8 BIT Interface |
| Pin Number: | 40pins |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Outline Dim.: | 229.46*149.1*2.6(mm) |
| Active Area: | 216.96(H) * 135.6(V)(mm) |
| Surface Treatment: | Hard Coating(3H) |
| Haze: | 25% |
| Touch Screen: | With CTP Optional |
| Display Colors: | 16.7 M |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
Backlight leds: | 39pcs |
| LED Life Time: | 30,000 Hours |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | CE&FCC & RoHS Compliant |

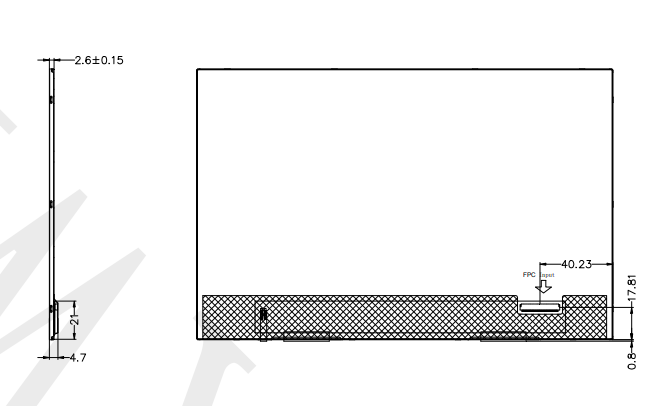

Product Drawing
LCM Pin Description:
| Pin No. | Symbol | Description |
| 1 | NC | NC |
| 2 | VDD | Power Voltage for digital circuit. |
| 3 | VDD | Power Voltage for digital circuit. |
| 4 | NC | NC |
| 5 | NC | NC |
| 6 | NC | NC |
| 7 | GND | Ground |
| 8 | RXIN0- | Negative LVDS Differential Data Input |
| 9 | RXIN0+ | Positive LVDS Differential Data Input |
| 10 | GND | Ground |
| 11 | RXIN1- | Negative LVDS Differential Data Input |
| 12 | RXIN1+ | Positive LVDS Differential Data Input |
| 13 | GND | Ground |
| 14 | RXIN2- | Negative LVDS Differential Data Input |
| 15 | RXIN2+ | Positive LVDS Differential Data Input |
| 16 | GND | Ground |
| 17 | RXCLKIN- | Negative LVDS Differential Clock Input |
| 18 | RXCLKIN+ | Positive LVDS Differential Clock Input |
| 19 | GND | Ground |
| 20 | RXIN3- | Negative LVDS Differential Data Input |
| 21 | RXIN3+ | Positive LVDS Differential Data Input |
| 22 | GND | Ground |
| 23 | NC | NC |
| 24 | NC | NC |
| 25 | GND | Ground |
| 26 | NC | NC |
| 27 | NC | NC |
| 28 | NC | NC |
| 29 | AVDD | Power for Analog Circuit |
| 30 | GND | Ground |
| 31 | LEDK | Power supply for backlight cathode input terminal. |
| 32 | LEDK | Power supply for backlight cathode input terminal. |
| 33 | NC | NC |
| 34 | NC | NC |
| 35 | VGL | Gate OFF Voltage |
| 36 | NC | NC |
| 37 | NC | NC |
| 38 | VGH | Gate ON Voltage |
| 39 | LEDA | Power Supply For LED Backlight Anode Input. |
| 40 | LEDA | Power Supply For LED Backlight Anode Input. |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 42 white LEDs. The characteristics of the back-light
are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 8.4 | -- | 10.5 | V | -- |
| Forward current | IF | -- | 280 | -- | mA | -- |
| Luminance(With LCD) | Lv | -- | 400 | -- | cd/m2 | -- |
| LED life time | N/A | -- | 30,000 | -- | Hr | Note 1 |
Note:
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +80°C / 96H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow. |
| 2 | Low Temp. Storage | -30°C / 96H | |
| 3 | High Tempe. Operating | +70°C / 96H | |
| 4 | Low Tempe. Operating | -20°C / 96H | |
| 5 | High Temperature /Humidity storage | 50°C x 90%RH /96H | |
| 6 | Thermal and cold shock | Static state, -20℃(30min) ~60℃ (30min),10 cycles |
Product Image
Factory Facilities and Certificates
Projected Capacitive (PCAP) Touch Screen
PCAP touch technology provides fast and sensitive response, as well
as professional level reliability. Tianxianwei's projected
capacitive touch screen is designed for strict industrial, medical,
and automotive applications. We can also combine the PCAP touch
screen with a liquid crystal display (LCD), which is an integrated
embedded solution that helps simplify the supply chain and
assembly.
Cover Glass:
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF
Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Why Choose us
1. We provide LCD Display custom solution
Does your product have special application requirements, electrical
specifications, optical specifications, touch features, or
mechanical dimensions that require customized displays? Tianxianwei can meet your custom LCD requirements.
2. Total solutions for Touch screen and display
Are you worried about assembling the touch screen and display
screen? Tianxianwei can provide custom and standard touch screen including Resistive
and Capacitive multi-touch solutions including air & optical
bonding service as well.
3. Commitment to quality reliability
Tianxianwei is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, CE,FCC
and other environmental rules in global markets. We ensure quality
through the manufacturing IQC,PQC and OQC management, reliability
and aging testing.
4. Long-term supply
Under normal circumstances, the products we recommend can be
supplied for more than 5 years. If there are special needs, we will
make alternative plans in advance to ensure your long-term supply
requirements.
