    7" Inch 800*1280 LVDS TFT LCD with CTP, PCAP Touch Screen 7 inch IPS

    7" Inch 800*1280 LVDS TFT LCD with CTP, PCAP Touch Screen 7 inch IPS Product Introduction


    Product Quick Details:

    1. LCD Size: 7” inch TFT
    2. Resolution:
    800*1280
    3. Viewing Angle: Free
    4. Outline Dimension:
    104.5(W) *171.5(H) *4.43(T)mm
    5. LCM Interface Type: LVDS

    6. CTP Interface Type: I2C
    7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
    8. Touch Panel: Capacitive Touch Screen(CTP)

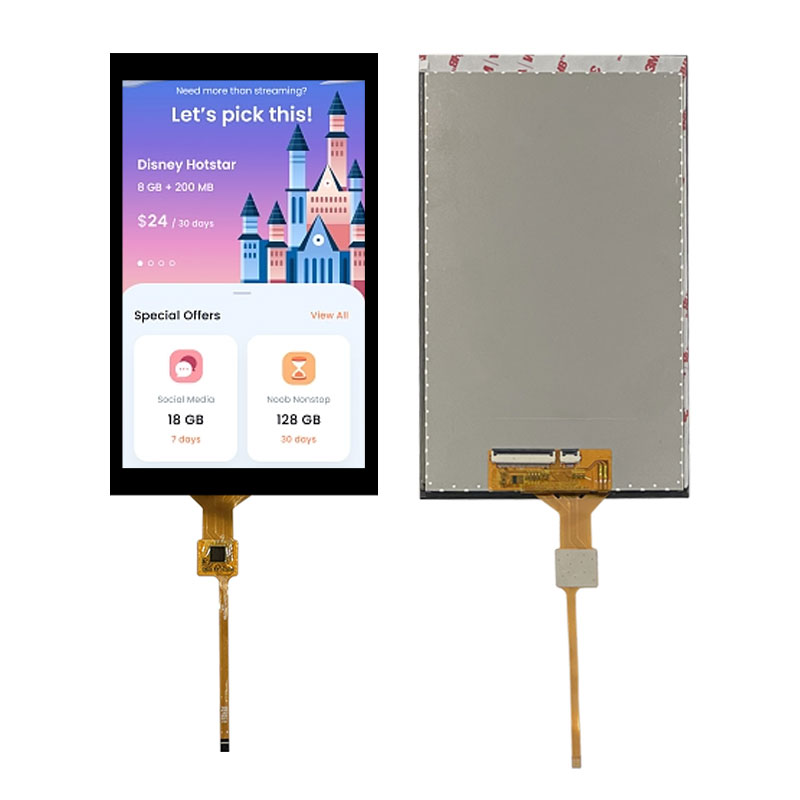

    Tianxianwei TXW700107S0-MT is a 7-inch IPS full view TFT LCD display with a resolution of 800 * 1280 pixels. It adopts a capacitive touch screen (CTP) and the cover glass can be customized.
    The external dimensions of the LCD module are 104.5 (W) * 171.5 (H) * 4.43 (T) mm, and the AA size is 94.2 (H) * 150.72 (V) mm. This 7-inch TFT LCD comes with PCAP (capacitive touch screen). TXW700107S0-MT interface with LVDS interface, 40 pins. The CTP interface is I2C. The TXW700107S0-MT has a surface brightness of 350-500cd/m ² (nits), and the LCD display module can operate at temperatures ranging from -20 ℃ to+70 ℃.
    This 7-inch TFT LCD display module is widely used in fields such as security access control, children's education, mobile payments, industrial control, instrumentation, medical equipment, smart homes, the Internet of Things, and household appliances.
    Keywords:7" Inch TFTTouch Screen:CTP(Capacitive Touch Screen)
    Resolution:1024x600 DotsCover Glass Dimension:Can Be Customized
    LCM Interface:LVDSSurface Luminance:350-500 Cd/m²
    LED Lifetime:30,000 HoursPins:40 Pins
    Viewing Direction:All Viewing Angle(85/85/85/85)CTP Interface:I2C
    Operating Temp.:–20℃ To +70℃Compliance:CE&FCC & RoHS Compliant

    7" Inch 800*1280 LVDS TFT LCD with CTP, PCAP Touch Screen 7 inch IPS Product Drawing

    Absolute Maximum Rating


    CharacteristicsSymbolMin.Max.Unit
    LCM Operating TemperatureTOPR-20+70°C
    LCM Storage TemperatureTSTG-30+80°C
    TP Operating Temperature & Humidity (20% ~ 90%RH)TOPR-20+70°C
    TP SStorage Temperature & Humidity (20% ~ 90%RH)TSTG-30+80°C
    HumidityRH--90%

    Back-Light Unit Characeristics

    The back-light system is an edge-lighting type with 20white LEDs. The characteristics of the back-light are shown in the following tables.

    CharacteristicsSymbolMin.TypeMax.UnitNotes
    Forward VoltageVF14--16V--
    Forward currentIF--80--mA--
    Luminance(With LCD+CTP)Lv--450--cd/m2--
    LED life timeN/A--30,000--HrNote 1

    Note:

    • The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.

    Module Function Description


    Pin No.SymbolLCM Functional
    1

    LED+

    Power supply for backlight anode input terminal.
    2

    LED+

    Power supply for backlight anode input terminal.
    3NCNo Connection.
    4NCNo Connection.
    5

    LED-

    Power supply for backlight cathode input terminal.
    6

    LED-

    Power supply for backlight cathode input terminal.
    7NCNo Connection.
    8GNDPower Ground
    9VGL(NC)No Connection.
    10NCNo Connection.
    11NCNo Connection.
    12VGH(NC)No Connection.
    13GNDPower Ground
    14AVDD(NC)No Connection.
    15GNDPower Ground
    16SELB(NC)No Connection.
    17GNDPower Ground
    18LVDS_D3PPositive LVDS differential data3 inputs
    19LVDS_D3NNegative LVDS differential data3 inputs
    20GND

    Power Ground

    21LVDS_D2PPositive LVDS differential data2 inputs
    22LVDS_D2NNegative LVDS differential data2 inputs
    23GNDPower Ground
    24LVDS_D1PPositive LVDS differential data1 inputs
    25LVDS_D1NNegative LVDS differential data1 inputs
    26GNDPower Ground
    27LVDS_D0PPositive LVDS differential data0 inputs
    28LVDS_D0NNegative LVDS differential data0 inputs
    29GNDPower Ground
    30LVDS_CLKPPositive LVDS differential clock inputs
    31LVDS_CLKNNegative LVDS differential clock inputs
    32GNDPower Ground
    33STBYBStandby mode, Normally pulled high.
    34LR(NC)No Connection.
    35UPDN(NC)No Connection.
    36RESET3.3VReset Signal input pin.
    37NCNo Connection.
    38VDD3.3VPower Supply For LCD.
    39VDD3.3VPower Supply For LCD.
    40VCOM(NC)No Connection.

    CTP PIN Description:


    Pin No.SymbolCTP Functional
    1CTP_RSTTouch panel reset 3.3V
    2CTP_VCCTouch panel Power supply 3.3V
    3GNDPower Ground
    4CTP_INTInterrupt signal 3.3V
    5CTP_SDATouch panel I2C data 3.3V
    6CTP_SCLTouch panel I2C clock 3.3V

    Reliability Test Item

    No.Test ItemTest ConditionNotes
    1High Temp. Storage+80°C / 96H

    1. Functional test isOK.

    Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

    2. No low

    temperature bubbles,end seal loose andfall, frame rainbow.


    2Low Temp. Storage-30°C / 96H
    3High Tempe. Operating+70°C / 96H
    4Low Tempe. Operating-20°C / 96H
    5High Temperature /Humidity storage60°C x 90%RH /96H
    6Thermal and cold shockStatic state, -20℃(30min) ~70℃ (30min),10 cycles

    7" Inch 800*1280 LVDS TFT LCD with CTP, PCAP Touch Screen 7 inch IPS Product Image

    Facilities and Certificates

    What's LVDS


    LVDS (Low Voltage Differential Signaling): It is a low-voltage differential signaling technology interface. It is a digital video signal transmission method developed by NS Corporation (National Semiconductor Corporation) in the United States to overcome the shortcomings of high power consumption and EMI electromagnetic interference when transmitting broadband and high bit rate data in TTL level.


    In recent years, with the rapid development of the electronics industry, intelligent display equipment has also made brilliant achievements, and high-definition display has been favored by consumers. At present, the high-definition display protocol interfaces include RGB, LVDS, MIPI, eDP, HDMI, miniLVDS, V-by-One, etc
