    10.1 Inch 1024*600 TFT LCD Screen With LVDS Interface For Car Navigation Display

    Ask Lasest Price
    Brand Name : TXWEI
    Model Number : TXW100015S0
    Certification : CE ROHS FCC
    Price : negotiate
    Delivery Time : 16
    Payment Terms : L/C TT D/P
    Supply Ability : 10000pcs
    • Product Details
    • Company Profile

    10.1 Inch 1024*600 TFT LCD Screen With LVDS Interface For Car Navigation Display

    TFT 10.1 Inch QVGA 1024*600 HX8282A11 LVDS Bit Interface 40 Pin LCD Screen 8.4-9.6V


    10.1" inch QVGA TFT LVDS LCD Description


    Product Quick Details:
    1. LCD Size: 10.1” inch TFT
    2. Resolution: 1024*600 dots
    3. Viewing Angle: 12 O'Clock
    4. Outline Dimension: 257*159.6*5.2 mm
    5. Driver IC: HX8282A11
    6. Interface Type: RGB
    7. Touch Panel: Without Touch Panel (Customizable)
    8. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C


    Product:10.1" QVGA RGB TFT LCDResolution:

    1024*600 Dots

    Touch Screen:Without Touch Screen ( Customizable )Viewing Direction:12 O'clock
    Interface:

    LVDS Bit

    Pin Number:40 Pins
    Connection:PluggingSurface Luminance:300 Cd/m²
    Operating Temp.:-20℃ To +70℃Compliance:CE & FCC & RoHS Compliant


    Application

    This 10.1-inch TFT LCD module is widely used in fields such as car navigation, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, and human-machine interface operation panels.


    Product Advantages

    1.Excellent display performance of background color, luminance, viewing angle, and intensity etc. surface luminance can be reach 300 nits.
    2.High quality level for industrial and medical applications.
    3.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
    4.Price competitive solution with good quality among the same kinds in the LCD industry.
    5.Easy to install and easy to maintain.


    FAQ:

    Q1. Can I have a sample order?
    A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.

    Q2. What about the lead time?
    A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.

    Q3. Do you have any MOQ limit for sample and production order?
    A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.

    Q4. How do you ship the goods and how long does it take to arrive?
    A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.

    Q5. How to proceed an order for LCD module?
    A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.

    Q6. Is it OK to print my logo on the LCD product?
    A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.

    Q7: Do you offer guarantee for the products?
    A: Yes, we offer 1 year warranty to our products.

    Q8: How to deal with the faulty?
    A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
    Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

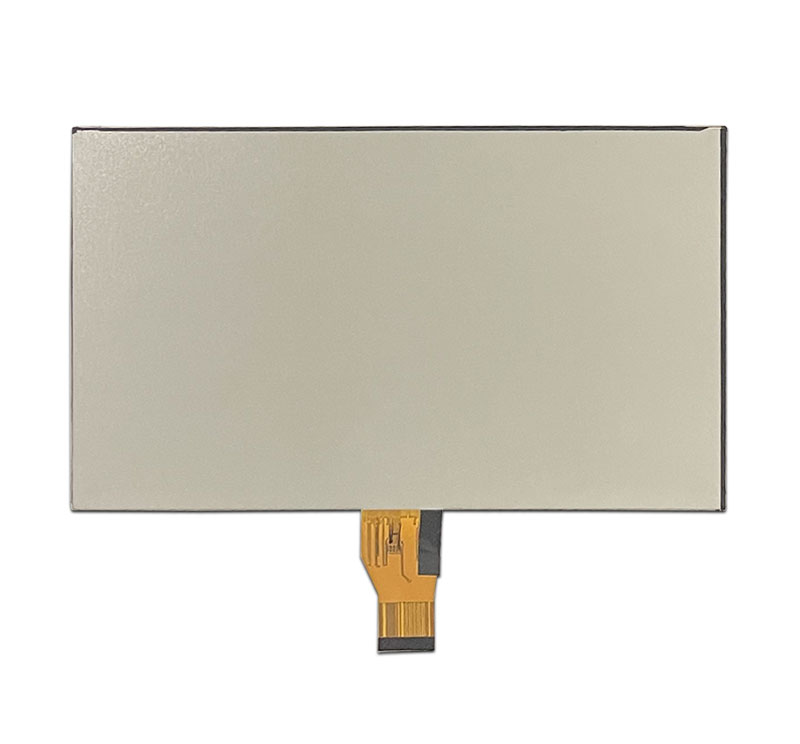

    10.1" inch QVGA TFT LVDS LCD Real Product Image



    FACTORY AND FACILITIES



    Search keyword: tft 10.1", 10.1 tft lcd, 10.1" tft lcd, 10.1 inch tft lcd, tft lcd 10.1, 10.1 tft display, 10.1" tft display, 10.1 inch tft display, tft display 10.1 inch, tft display 10.1", 10.1 inch tft lcd display, 10.1" tft screen, 10.1 inch tft screen, tft screen 10.1 inch, tft screen 10.1", 10.1 inch tft lcd screen, 10.1 inch RGB TFT, TFT 10.1 inch LVDS, 10.1 QVGA, China 10.1 inch TFT.
