10.1 Inch TFT LCD Display Wide Temperature Operation 800*1280 Screen MIPI 40 pins
Product Introduction
The TXW100035B2 TFT LCD display is a 10.1-inch IPS full view screen with a resolution of 800 * 1280 pixels. This industrial grade TFT LCD display module supports MIPI interface. The TFT screen TXW100035B2 operates at 24V (power supply voltage)
TXW100035B2 design without touch, customizable touch screen, optional IIC and USB interfaces. The brightness of this TFT LCD module TXW100035B2 is 550cd/m ². The quality condition of the TFT LCD display TXW100035B2 is good. As an industrial grade display, this product is widely used in fields such as device control panels, mobile payment products, security access control products, instruments and meters, medical equipment, smart homes, the Internet of Things, and household appliances.
| Product: | 10.1 inch TFT LCD Display |
| Surface Luminance: | 550 Cd/m²(nits) |
| Operating Temp.: | -20℃ To +70℃ |
| Storage Temp.: | -30℃ To +80℃ |
| Pin Number: | 40pins |
| Resolution: | 800*1280 |
| Interface: | MIPI |
| Viewing Direction: | IPS, All Viewing Angle (85/85/85/85) |
| Active Area: | 135.36(H) * 216.576(V)(mm) |
| Outline Dim.: | 143*228.6*2.8(mm) |
| Touch Screen: | CTP Optional |
| Display Colors: | 16.7 M |
LCM Driver IC: | JD9365DA |
Backligh voltage: | 24V |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | CE&FCC & RoHS Compliant |
Features
This 10.1 inch TFT Display is a color active matrix TFT LCD using amorphous silicon TFT's (ThinFilm Transistors) as an active switching devices.
This PCAP TFT LCD 10.1 inch display is designed with , cover glass can be customized as customer's requirement .
This 10.1 inch TFT screen is with Color Gamut Typ. 50% Min.45%.
The respond time of this 10.1 inch LCD TFT is Typ. 30ms, Max. 35ms.
This 10.1 inch MIPI TFT is operated at wide temperature ranging from -30 degee to +80 degree.

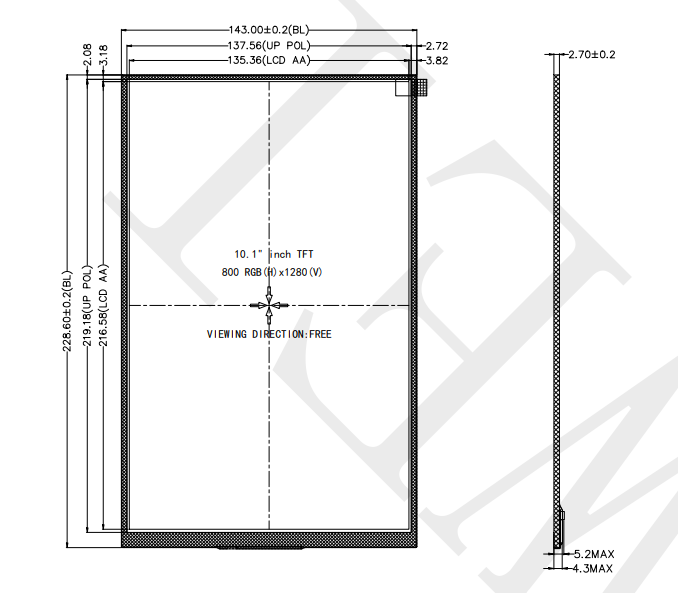

Product Drawing
Module Function Description
| Pin No. | Symbol | LCM Functional |
| 1 | NC | NC |
| 2 | VDD/3.3V | power supply for DC/DC circuit |
| 3 | VDD/3.3V | power supply for DC/DC circuit |
| 4 | GND | Power Ground |
| 5 | RESET | Reset pin. Setting either pin low initializes the LSI |
| 6 | NC | NC |
| 7 | GND | Power Ground |
| 8 | MIPI_D0N | MIPI-DSI Data differential signal input pins |
| 9 | MIPI_D0P | MIPI-DSI Data differential signal input pins |
| 10 | GND | Power Ground |
| 11 | MIPI_D1N | MIPI-DSI Data differential signal input pins |
| 12 | MIPI_D1P | MIPI-DSI Data differential signal input pins |
| 13 | GND | Power Ground |
| 14 | MIPI_CLKN | MIPI-DSI CLOCK differential signal input pins |
| 15 | MIPI_CLKP | MIPI-DSI CLOCK differential signal input pins |
| 16 | GND | Power Ground |
| 17 | MIPI_D2N | MIPI-DSI Data differential signal input pins |
| 18 | MIPI_D2P | MIPI-DSI Data differential signal input pins |
| 19 | GND | Power Ground |
| 20 | MIPI_D3N | MIPI-DSI Data differential signal input pins |
| 21 | MIPI_D3P | MIPI-DSI Data differential signal input pins |
| 22 | GND | Power Ground |
| 23~24 | NC | NC |
| 25 | GND | Power Ground |
| 26~29 | NC | NC |
| 30 | GND | Power Ground |
| 31~32 | LEDK | Power supply for backlight cathode input terminal. |
| 33~38 | NC | NC |
| 39~40 | LEDA | Power supply for backlight anode input terminal. |
Optical Characteristics
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +70°C / 96H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow. |
| 2 | Low Temp. Storage | -30°C / 96H | |
| 3 | High Tempe. Operating | +60°C / 96H | |
| 4 | Low Tempe. Operating | -20°C / 96H | |
| 5 | High Temperature /Humidity storage | 50°C x 90%RH /96H | |
| 6 | Thermal and cold shock | Static state, -20℃(30min) ~60℃ (30min),50 cycles |
Product Image
