7-inch TFT LCD Display 800*1280 Brightness 350cd/m2 Security Access Control Display Panel

Product Description:

The Tianxianwei TXW700081S0-MT touch screen glass surface treatment has multiple functional options, such as antibacterial, waterproof, anti fingerprint, anti glare, and anti reflection. We can customize according to the specific requirements of the customer. The size of the cover glass can be customized according to the customer's application. To achieve dust prevention, we will apply 3M VHB on the steps on the back of the glass, which can completely prevent dust from entering the user's device. In the design of this product, we also carried out anti-static treatment. Through contact electrostatic testing, another application option is that the product can have a perfect touch effect whether bare handed or wearing plastic gloves.

The Tianxianwei TXW700081S0-MT is currently being used by customers with a brightness of 350 nits. At the same time, we support customized brightness and resolution to meet the needs of users in different environments. Widely used in fields such as security access control, children's education, mobile payments, industrial control, instrumentation, medical equipment, smart homes, Internet of Things, household appliances, etc

Product Quick Details

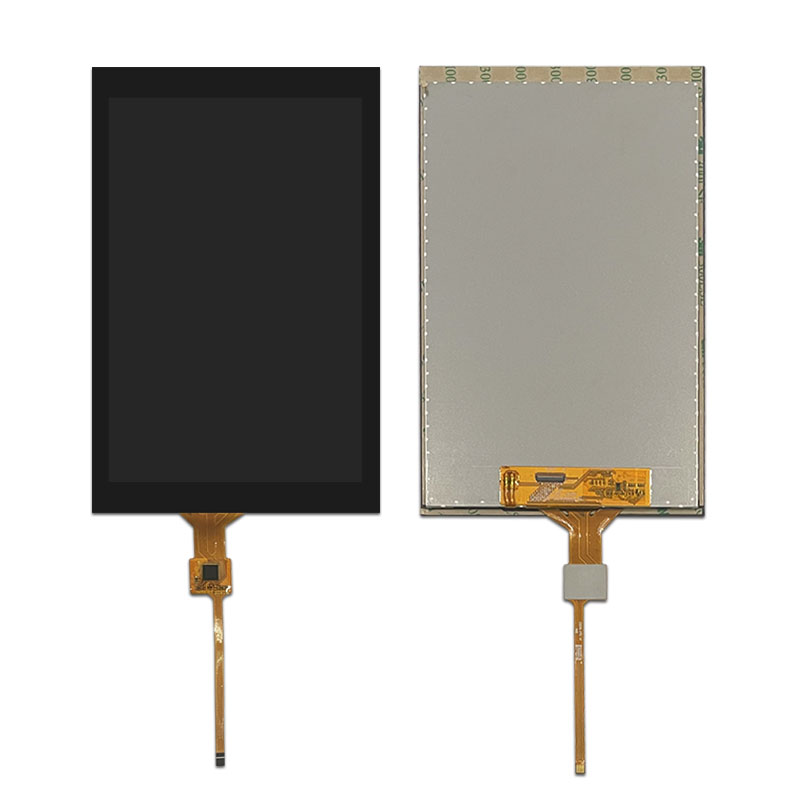

1. LCD Size: 7” inch TFT
2. Resolution: 800*1280
3. Viewing Angle: Free, All viewing angles
4. Outline Dimension: 104.5(W) *171.5(H) *4.43(T)mm
5. LCM Interface Type: MIPI

6. CTP Interface Type: I2C
7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)

Specification

Item	Contents	UNIT
LCD Type	7.0” TFT-LCD, Transmissive
Outline Dimension	104.5(W) 171.5(H) 4.43(T)	mm
Active Area	94.2(H) * 150.72(V)	mm
Viewing direction	ALL Viewing angles	---
Display Color	16.7M
Number of Dots	800*1280	Dots
Dot Pitch (H×V)	0.11775(H) *0.11775(V)	mm
Assy Type	COG+FPC+BL+CTP	---
BACKLIGHT	WHITE LED Backlight	-
Interface	MIPI INTERFACE
Lcm pin n count	31	pin

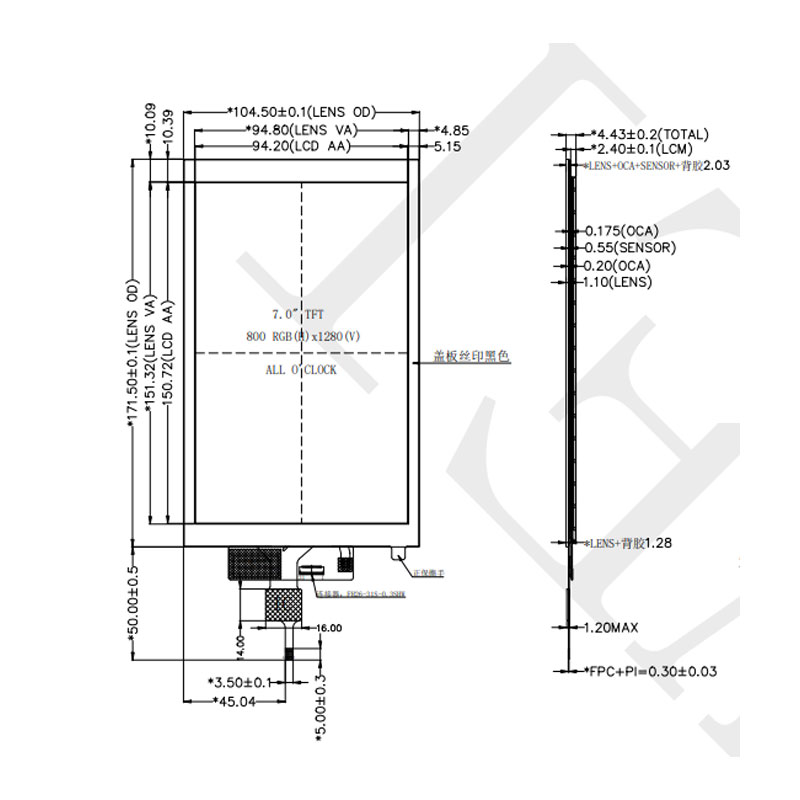

Product Drawing

Module Function Description

Pin No.	Symbol	LCM Functional
1-3	LEDA AA0DDBDB15~DB0 DB15~DB0	Power supply for backlight anode input terminal.
4	NC	NC
5-8	LEDK	Power supply for backlight cathode input terminal.
9	GND	Power Ground
10	GND	Power Ground
11	MIPI_D2+	High speed interface data differential signal input/output pins
12	MIPI_D2-	High speed interface data differential signal input/output pins
13	GND	Power Ground
14	MIPI_D1+	High speed interface data differential signal input/output pins
15	MIPI_D1-	High speed interface data differential signal input/output pins
16	GND	Power Ground
17	MIPI_CLK+	Positive polarity of low voltage differential clock signal
18	MIPI_CLK-	Negative polarity of low voltage differential clock signal
19	GND	Power Ground
20	MIPI_D0+	High speed interface data differential signal input/output pins
21	MIPI_D0-	High speed interface data differential signal input/output pins
22	GND	Power Ground
23	MIPI_D3+	High speed interface data differential signal input/output pins
24	MIPI_D3-	High speed interface data differential signal input/output pins
25	GND	Power Ground
26	TE	Serves TE (Tearing Effect) pin on MPU interface
27	RESET	Reset pin. Setting either pin low initializes the LSI
28	ID	ID read PIN for ID circuit.
29	VDDIO/1.8V	power supply for the I/O circuit
30-31	VDD/3.3V	power supply for DC/DC circuit

CTP PIN Description:

Pin No.	Symbol	CTP Functional
1	CTP_VDD 3.3V	power supply for DC/DC circuit
2	CTP_SCL 3.3V	Touch panel I2C clock
3	CTP_SDA 3.3V	Touch panel I2C data
4	CTP_INT 3.3V	Touch panel interrupt output
5	CTP_RST 3.3V	Touch panel reset
6	GND	Power Ground

Absolute Maximum Rating

Characteristics	Symbol	Min.	Max.	Unit
LCM Operating Temperature	T_OPR	-20	+70	°C
LCM Storage Temperature	T_STG	-30	+80	°C
TP Operating Temperature & Humidity (20% ~ 90%RH)	T_OPR	-20	+70	°C
TP SStorage Temperature & Humidity (20% ~ 90%RH)	T_STG	-30	+80	°C
Humidity	RH	--	90	%

Reliability Test Item

No.	Test Item	Test Condition	Notes
1	High Temp. Storage	+80°C / 96H	1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow.
2	Low Temp. Storage	-30°C / 96H
3	High Tempe. Operating	+70°C / 96H
4	Low Tempe. Operating	-20°C / 96H
5	High Temperature /Humidity storage	50°C x 90%RH /96H
6	Thermal and cold shock	Static state, -20℃(30min) ~60℃ (30min),10 cycles

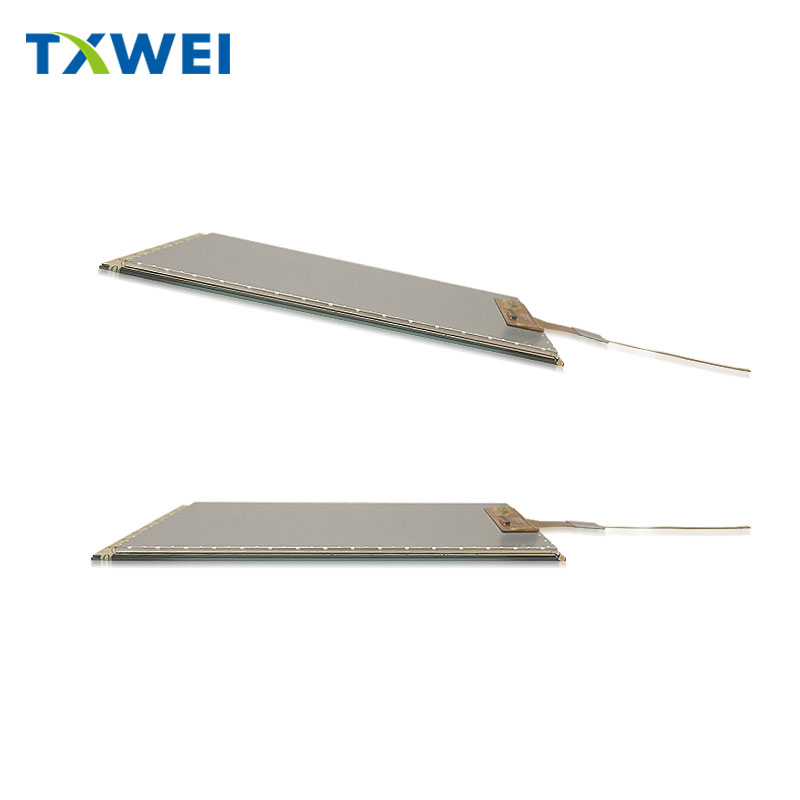

Product Image
