7-inch IPS TFT LCD Display JD9365DA Driver MIPI Interface Product Introduction
TXW700088K0-CTP TFT LCD display is a 7 inch portrait mode with capacitive touch screen (CTP) TFT LCD module, Displaying QVGA resolution 600*1024 pixels, this TFT LCD module is built-in with JD9365DA IC. it supports MIPI interface. supply voltage for analog (Vcc) range from 18V. This module is having anti-glare surface panel and all viewing angles visible.
TXW700088K0-CTP display product uses a high-brightness backlight, with a high-brightness polarizer, the surface brightness can reach 800 NITS, and the CTP surface is anti-glare, so that this product can be read in sunlight. This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.
Features:
| Product: | 7 Inch TFT LCD Display |
| Resolution: | 600*1024 |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 40 Pins |
| Surface Luminance: | 800 Cd/m² |
| LED Lifetime: | 20,000 Hours |
| Touch Screen: | Capacitive Touch Panel |
| Cover Glass Dimension: | Customizable |
| Interface: | MIPI |
Mechanical OutlineSize: | 104.36*178.67*5.28 |
| Driver IC: | JD9365DA |
| Compliance: | CE & FCC & RoHS Compliant |

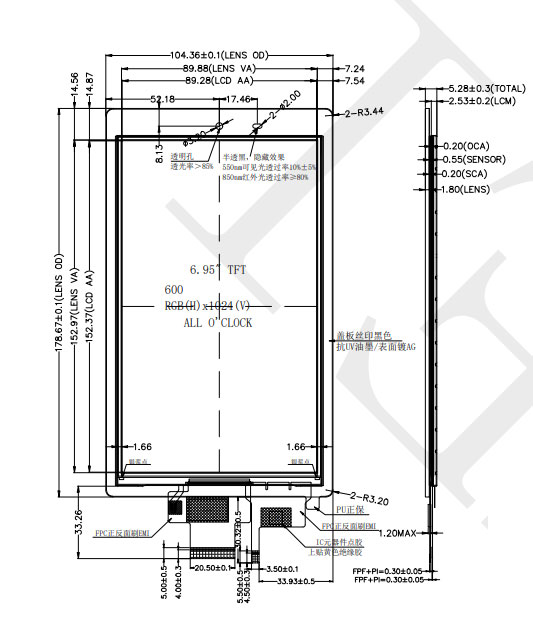

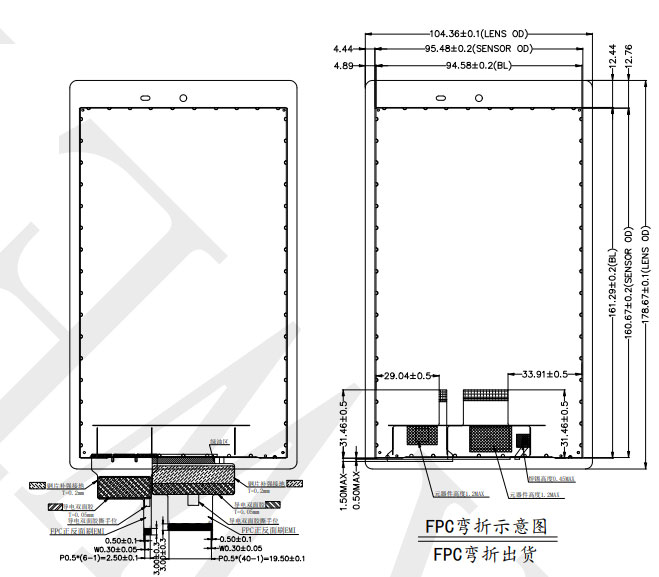

7 Inch IPS TFT LCD Display JD9365DA Driver mipi Interface Product Drawing
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -20 | +70 | °C |
| LCM Storage Temperature | TSTG | -30 | +80 | °C |
| TP Operating Temperature & Humidity (20% ~ 90%RH) | TOPR | -20 | +70 | °C |
| TP SStorage Temperature & Humidity (20% ~ 90%RH) | TSTG | -30 | +80 | °C |
| Humidity | RH | -- | 90 | % |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 18 white LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 16.8 | -- | 19.2 | V | -- |
| Forward current | IF | -- | 120 | -- | mA | -- |
| Luminance(With LCD+CTP) | Lv | -- | 800 | -- | cd/m2 | -- |
| LED life time | N/A | -- | 20,000 | -- | Hr | Note 1 |
Note:
Module Function Description
| Pin No. | Symbol | LCM Functional |
| 1 | GND | Power Ground |
| 2 | MIPI_D0+ | High speed interface data differential signal input/output pins |
| 3 | MIPI_D0- | High speed interface data differential signal input/output pins |
| 4 | GND | Power Ground |
| 5 | MIPI_D1+ | High speed interface data differential signal input/output pins |
| 6 | MIPI_D1- | High speed interface data differential signal input/output pins |
| 7 | GND | Power Ground |
| 8 | MIPI_CLK+ | High speed interface clock differential signal input/output pins |
| 9 | MIPI_CLK- | High speed interface clock differential signal input/output pins |
| 10 | GND | Power Ground |
| 11 | MIPI_D2+ | High speed interface data differential signal input/output pins |
| 12 | MIPI_D2- | High speed interface data differential signal input/output pins |
| 13 | GND | Power Ground |
| 14 | MIPI_D3+ | High speed interface data differential signal input/output pins |
| 15 | MIPI_D3- | High speed interface data differential signal input/output pins |
| 16~17 | GND | Power Ground |
| 18~19 | VCC 1.8V | power supply for the I/O circuit |
| 20~23 | NC | NC |
| 24 | RESET | Reset pin. Setting either pin low initializes the LSI |
| 25~26 | NC | NC |
| 27 | GND | Power Ground |
| 28~29 | LEDK | Power supply for backlight cathode input terminal. |
| 30 | GND | Power Ground |
| 31 | NC | NC |
| 32~33 | GND | Power Ground |
| 34 | NC | NC |
| 35~36 | LEDA | Power supply for backlight anode input terminal. |
| 37 | GND | Power Ground |
| 38~39 | VDD 3.3V | power supply for DC/DC circuit |
| 40 | NC | NC |
CTP PIN Description:
| Pin No. | Symbol | CTP Functional |
| 1 | CTP_VCC2.8V | Touch panel Power supply 2.8~3.3V |
| 2 | CTP_INT 1.8V | Touch panel interrupt output |
| 3 | CTP_RST 1.8V | Touch panel reset |
| 4 | CTP_SCL 1.8V | Touch panel I2C clock |
| 5 | CTP_SDA 1.8V | Touch panel I2C data |
| 6 | GND | Power Ground |
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +80°C / 96H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow. |
| 2 | Low Temp. Storage | -30°C / 96H | |
| 3 | High Tempe. Operating | +70°C / 96H | |
| 4 | Low Tempe. Operating | -20°C / 96H | |
| 5 | High Temperature /Humidity storage | 50°C x 90%RH /96H | |
| 6 | Thermal and cold shock | Static state, -20℃(30min) ~60℃ (30min),10 cycles |

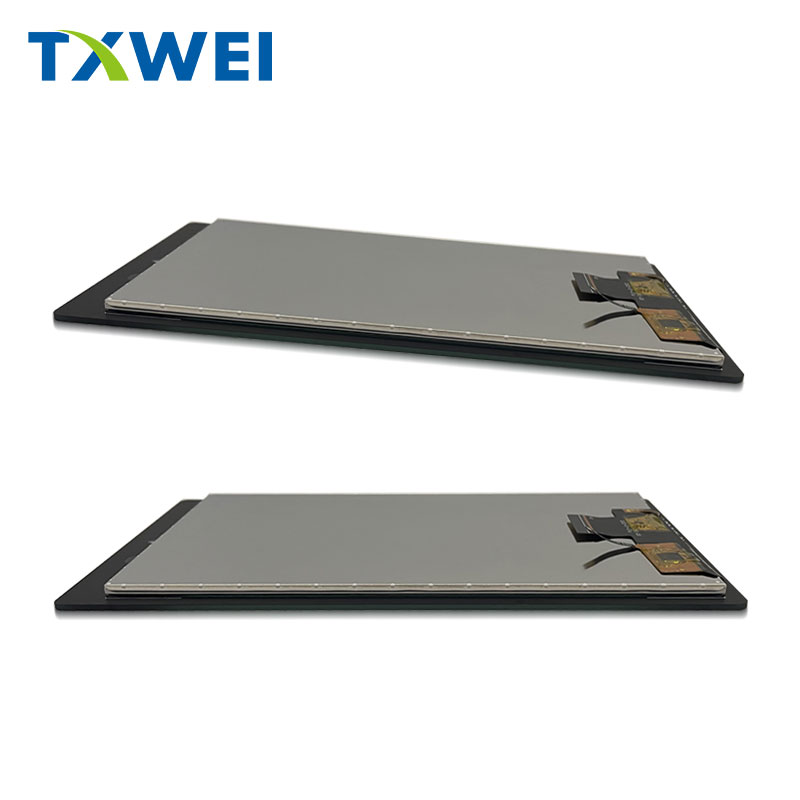

Product Images
TFT LCD Display Module Manufacturer - more than 400 TFT standard items on line
Tian Xianwei is a global leading Manufacturer of TFT LCD display based China. SAEF offers a wide product range of small to medium sizes TFT display modules in sizes ranging such as 0.96",1.28", 1.77, 2", 2.1" 2.2" 2.3", 2.4", 2.6", 2.8", 3", 3.1", 3.2", 3.4" 3.5", 3.6", 3.7", 4", 4.3", 4.6", 5", 5.5", 5.6", 5.7", 6.5", 7", 8", 9", 10.1", 10.2", 10.4", 11.6", 12.1" , 12.3", 13.3", 14", 15", 15.6", 17", 17.3" 18.4", 18.5", 19", 21.3", 21.5", 23.8", 24", 25", 27" 28" and 32" TFT (diagonal size of the active area) and so on. There are more than 200 TFT standard models listed on this website; furthermore, almost each item is acceptable to derivate from the standard items to meet the customers' requirement.
