TXW100041B0-CTP is a 10.1-inch 16:9 ratio full-color TFT LCD display screen with a resolution of 1024 * 600, IPS full view high-definition high brightness display effect, wide temperature range of -30+80 working temperature, and high brightness display of 450cd/m².
In addition, TXW100041B0-CTP offers three product features: high brightness (450 cd/m²), high contrast (800:1), and anti glare. These features improve image display in complex lighting environments, enhancing the visual experience of customer products under various conditions.
This product is widely used in fields such as car navigation, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc.
Features
| Item | Specification |
| LCD size | 10.1 inch(Diagonal) |
Lumens degrees | 450cd/m² |
| Resolution | 1024*3RGB(H)X600(V) |
| Display mode | Normally White, Transmissive |
| Dot pitch | 0.2175*0.2088mm |
| Active area | 222.72(H) *125.28(V) mm |
| Module size(with CTP) | 247.69*154.09*6.8 mm |
LCM Driver IC | HX8282A11 |
LCM interface | LVDS Bit Interface |
Lcm pin n count | 60 |
| View direction(Gray Inversion) | ALL O’CLOCK |
Touch screen structure | G+G |
Touch Driver IC | GT9271 |
Touch Interface | IIC |
| operating temperature | -20+70 |
| storage temperature | -30+80 |

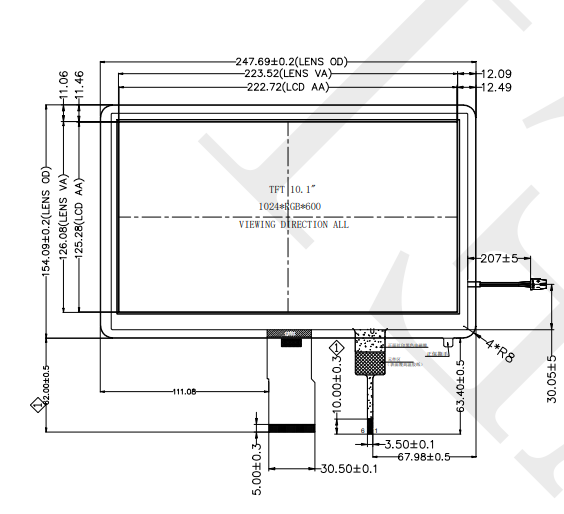

LVDS Inch TFT with CTP Product Drawing
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -20 | +70 | °C |
| LCM Storage Temperature | TSTG | -30 | +80 | °C |
| TP Operating Temperature & Humidity (20% ~ 90%RH) | TOPR | -20 | +70 | °C |
| TP SStorage Temperature & Humidity (20% ~ 90%RH) | TSTG | -30 | +80 | °C |
| Humidity | RH | -- | 90 | % |
TFT DC Characteristics
| Characteristics | Symbol | Min. | Typ. | Max. | Unit | Note |
| TFT OperationFrame rate | Hz | -- | 60 | -- | Hz | -- |
| Supply Voltage for(DC/DC) | VDD | 3.0 | 3.3 | 3.6 | V | -- |
| TFT Gate ON Voltage | VGH | -- | 18 | -- | V | -- |
| TFT Gate OFF Voltage | VGL | -- | -6 | -- | V | -- |
| TFT Common Voltage | Vcom | -- | 4.4 | -- | V | -- |
| AVDD | Avdd | -- | 9.6 | -- | V | -- |
Notes :
1. VGH is TFT Gate operating voltage.
2. VGL is TFT Gate operating voltage. The low voltage level of VGL signal must be
fluctuates with same phase as Vcom.
3. Vcom must be adjusted to optimize display quality, as Crosstalk and Contrast Ratio etc..
4. The value is just the reference value. The customer can optimize the setting value by the
different D-IC.
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with white 42 LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 16.8 | -- | 19.2 | V | - |
| Forward current | IF | -- | 140 | - | mA | - |
| Luminance(With LCD+CTP) | Lv | TBD | -- | cd/m2 | - | |
| LED life time | N/A | -- | 30000 | -- | Hr | Note 1 |
Note:
The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.
Reliability Test Item
| No. | Test Item | Test Condition | Notes |
| 1 | High Temp. Storage | +80°C / 96H | 1. Functional test isOK. Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed. 2. No low temperature bubbles,end seal loose andfall, frame rainbow. |
| 2 | Low Temp. Storage | -30°C / 96H | |
| 3 | High Tempe. Operating | +70°C / 96H | |
| 4 | Low Tempe. Operating | -20°C / 96H | |
| 5 | High Temperature /Humidity storage | 50°C x 90%RH /96H | |
| 6 | Thermal and cold shock | Static state, -20℃(30min) ~70℃ (30min),10 cycles |

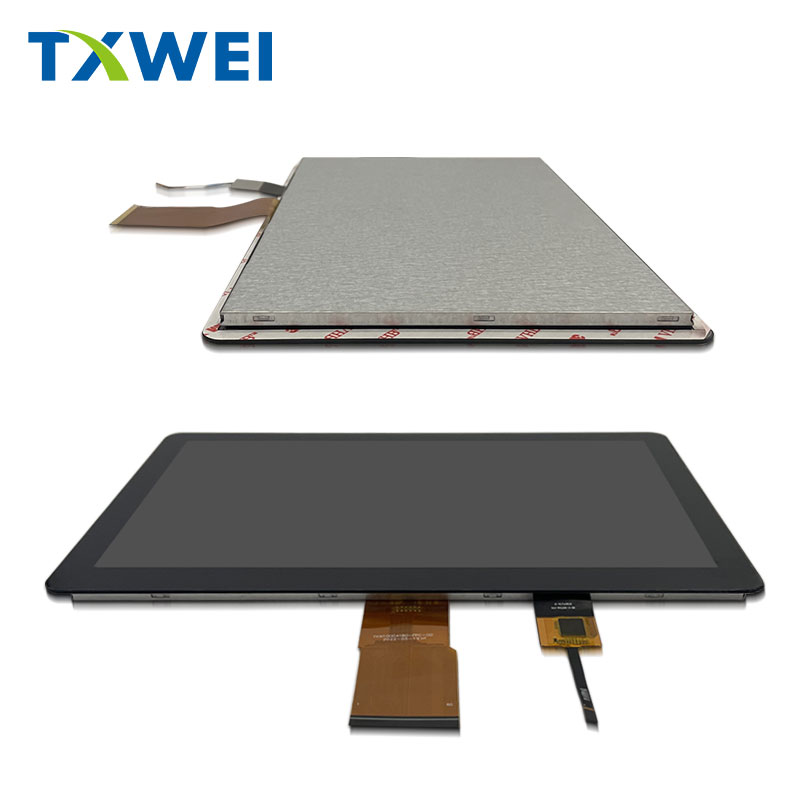

Product Image
