Shenzhen Tianxianwei Technology Co., Ltd.
2 Years
| Ask Lasest Price | |
| Brand Name : | TXWEI |
| Model Number : | TXW700098N0 |
| Certification : | CE ROHS FCC |
| Price : | negotiate |
| Delivery Time : | 16 |
| Payment Terms : | L/C TT D/P |
| Supply Ability : | 10000pcs |
Product Introduction
The 7-inch IPS TFT LCD is a 262K color display screen with a diagonal size of 7 inches and a resolution of 800 * 480 dot matrix. This product adopts EWV ultra wide viewing angle and high-definition high brightness display effect, providing ultra wide viewing angle to ensure users receive consistent visual experience from different angles. This display screen supports single point RTP and multi-point CTP touch technology, achieving intuitive human-computer interaction.
The 7-inch IPS TFT LCD is a high-definition display screen with RGB 24 bit interface. Its working logic voltage is 8.4-9.6V, with a built-in ST7283 driver IC and a working temperature of -30-80 ℃
This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc
Features
Size: 7 inches
Resolution: 800*480 pixels
Display mode: IPS
LCM interface: RGB 24 Bit Interface
Brightness: 450cd/m ²
Active area: 154.08(H) * 85.92(V)
Working temperature: -30 ℃ to 80 ℃
Storage temperature: -30 ℃ to 80 ℃
Backlight type: LED backlight, brightness and quantity vary by
model
TFT features:
Structure:TFT PANNEL+IC +FPC+BL
12 O'CLOCK Type LCD
800 dot-segment and 480 dot-common outputs
16.7M Color can be selected by software
White LED back light
24lane RGB interface

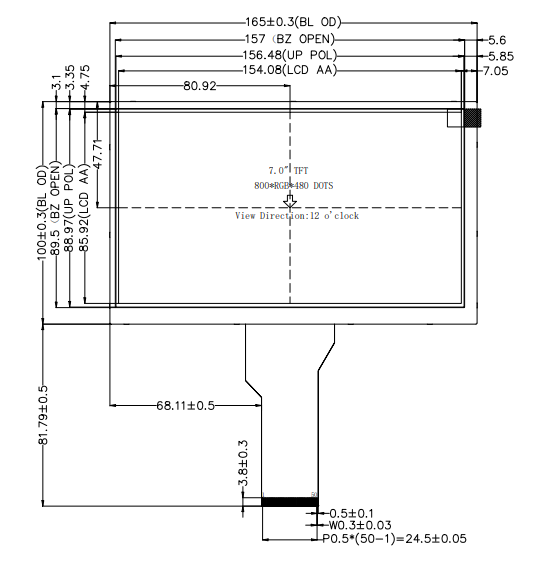

Outline Drawing
TFT DC Characteristics
Note 1: VCOM value should be adjusted by different condition to optimize Flicker Value.
Note 2: VGH and VGL are the operating voltages of TFT gate.
Note 3: Adjust the contrast, make the color bigger and darker, and make the color smaller and lighter
Back-Light Unit Characeristics
Note:
(1) The “LED life time" is defined as the module brightness
decrease to 50% of original brightness at
IL=20mA/LED. The LED life time could be decreased if operating lL
is larger than 25mA/LED.
Reliability Test Item
Product Image
The 7 Inch LCD Module Screen is designed with an RGB 24 Bit Interface, which ensures high-quality color reproduction and excellent image clarity. It provides users with a stunning visual experience, making it perfect for use in a variety of applications, including medical equipment, gaming devices, and automotive displays.
In addition to its impressive display capabilities, the 7 Inch LCD Module is also equipped with a 200mA backlight current, which ensures that the screen remains bright and visible at all times. This feature is especially important in low-light environments, where visibility can be a challenge.
Overall, the 7 Inch LCD Module (Model Number: TXW700098N0) is a versatile and reliable display screen that offers exceptional image quality and performance. Its compact size, RGB 24 Bit Interface, and 200mA backlight current make it an excellent choice for a wide range of applications.
This product is widely used in fields such as motorcycle instruments, car navigation, electric vehicle instruments, outdoor sunlight viewing equipment, industrial control equipment, medical equipment, human-machine interface operation panels, etc
This 7 Inch LCD Module is a TFT LCD touch screen monitor with a storage temperature range of -30°C to 80°C. It has a 50Pin Lcm Pin N Count and an Mechanical Outline Size of 165mm x 100mm x 5.5mm. The Active Area measures 154.08mm (H) x 85.92mm (V). This Seven Inch LCD Touch Screen Monitor has a brightness of 450 cd/m².
| Product Name | Seven-Inch Thin Film Transistor LCD Panel |
| Screen Size | 7.0 inches |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -30°C to +80°C |
| Lumens Degrees | 450cd/m² |
| Backlight Current | 200mA |
| Active Area | 154.08(H) * 85.92(V) mm |
| Number of Pixels | 800*3RGB(H)X480(V) |
| Pixel Pitch (W*H) | 0.2082*0.1790 mm |
| Mechanical Outline Size(W*H*T) | 165*100*5.5 mm |
| LCM Interface | RGB 24 Bit Interface |
This 7 Inch LCD Module Screen is perfect for use in a range of different scenarios, from industrial to consumer applications. Its Mechanical Outline Size(W*H*T) of 165*100*5.5 makes it a compact and versatile display that can be used in a wide range of different products.
One of the key features of this 7Inch TFT LCD Display is its RGB 24 Bit Interface. This makes it easy to connect to a range of different devices and ensures that it can be integrated into a wide range of different products.
Another important feature of this 7 Inch LCD Module Screen is its operating temperature range of -30+80. This makes it suitable for use in a range of different environments and ensures that it can perform reliably in even the harshest conditions.
The pixel pitch of this 7Inch TFT LCD Display is 0.2082*0.1790, making it ideal for displaying high-quality images and videos. It is also capable of displaying a wide range of different colors, ensuring that it can be used in a range of different applications.
In terms of product application occasions, this 7 Inch LCD Module Screen is suitable for use in a wide range of different products, including consumer electronics, industrial control systems, and medical devices. It can be used to display information, images, and videos, making it a versatile and useful display for a wide range of different scenarios.
When it comes to packaging, this 7 Inch TFT LCD Display is packaged in cardboard, ensuring that it is well-protected during transport. It has a minimum order quantity that can be negotiated, as well as a price that can be negotiated.
The delivery time for this 7 Inch LCD Module Screen is 16 days, and it can be paid for using a range of different payment methods, including L/C TT D/P. It also has a high supply ability, with up to 10000pcs available.
In summary, TXWEI's 7 Inch LCD Module Screen is a high-quality and versatile display that can be used in a wide range of different applications. Its compact size, wide temperature range, and high-quality display make it a popular choice for a range of different products and scenarios.
Our product customization services for the Seven Inch TFT LCD Module include:
Our Seven-Inch Thin Film Transistor LCD Panel is perfect for creating a Seven Inch TFT LCD Monitor with high-quality display capabilities. Contact us to negotiate your minimum order quantity and price.
Our packaging details include cardboard for safe transportation and delivery time is estimated at 16 days. Payment terms include L/C TT D/P and our supply ability is 10000pcs. The operating temperature range is -30+80 and the Lcm Pin N Count is 50Pin.
The Mechanical Outline Size(W*H*T) is 165*100*5.5 and the Active Area is 154.08(H) * 85.92(V) for optimal display.
|
|
