Product Description:

1. TXW350099C0-12 is a 3.5-inch 4:3 ratio full-color TFT LCD display with a resolution of 640 * 480, IPS full view high-definition high brightness display effect, wide temperature range of -20+70 working temperature, and high brightness display of 450cd/m².
2. The 3.5 Inch LCD Screen is a high-quality display module that offers an outstanding visual experience for a wide range of applications.
3. This versatile display module features an Act ive Area of 70.08*52.56 and a pixel pitch of 0.109.5*0.109.5, making it perfect for displaying detailed images and crisp text.
4. With its Backlight Voltage of 18V, this 3.5 Inch LCD Module provides bright and clear images, even in low light conditions.
5. The module is designed with a Mechanical Outline Size of 76.84*63.84*3.27, making it easy to install in a wide range of devices.

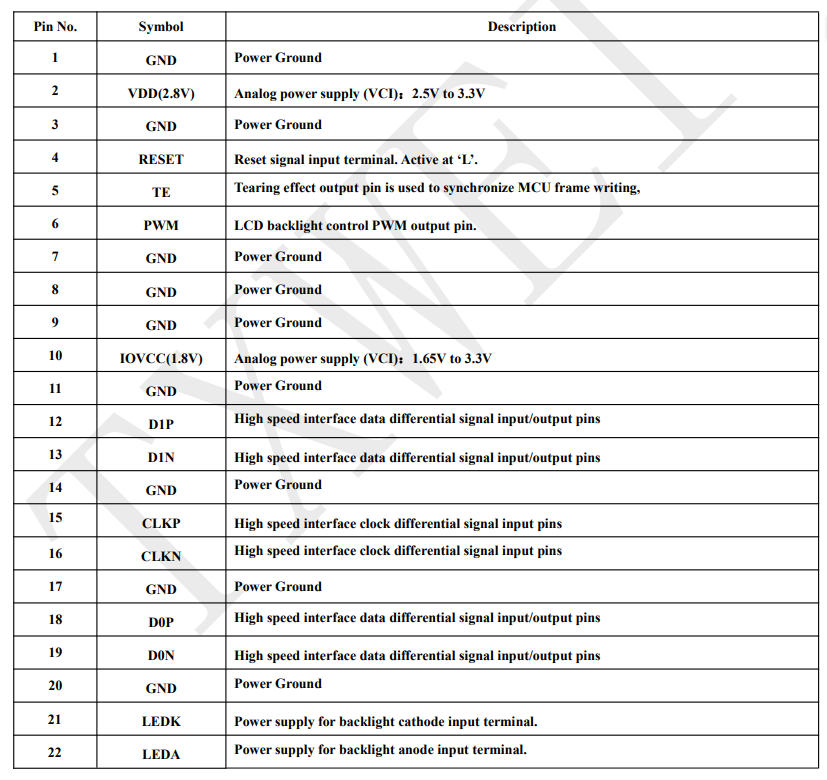

6. This 3.5 Inch LCD Touchscreen comes with a Lcm Pin N Count of 22PIN, ensuring a reliable and stable connection between the display module and your device.
7. It is an ideal choice for a range of applications, from industrial control systems to medical devices.
8. The 3.5 Inch LCD Screen is built to last, with a durable construction that can withstand the rigors of daily use.
9. Its high-quality display technology provides excellent color reproduction and a wide viewing angle, making it easy to read from any angle. Whether you're looking for a reliable display solution for your industrial control system or a high-quality display module for your medical device, the 3.5 Inch LCD Module is an excellent choice.
10. This product is widely used in game console displays, access control and security displays, intelligent switch displays, medical equipment displays, household appliance displays, industrial equipment displays, etc.

Technical Parameters:

TFT LCD 3.5 inch, 3.5" TFT Display Module Drawing

TFT features:
Structure: TFT PANNEL+IC +FPC+BL:IPS Type LCD
640dot-segment and 480 dot-common outputs;16.7M Color can be selected by software,White LED back light;
2lane MIPl interface

Back-Light Unit Characeristics

Note:
(1) The “'LED life time" is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.

Module Function Description

Reliability Test ltem

TFT LCD 3.5 inch TFT Display Module Real Product Image
