-Product Description:

• TXW430032B0 is a 4.3-inch 16:9 ratio full-color resistive touch LCD display screen with a resolution of 480 * 272, IPS full view high brightness display effect, and a wide temperature range of -30+80 working temperature High brightness display of 450cd/m².
• Featuring an RGB 24 BIT Interface LCM interface, this 4.3 Inch LCD Display delivers stunning colors and sharp details, making it an ideal choice for applications that require high-quality imaging. The display also comes with a 40PIN Lcm pin n count and an ALL O’CLOCK viewing direction, allowing for easy integration into your existing systems.
• The active area of the 4.3 Inch LCD Display measures 95.04(H) * 53.856(V), providing ample space for displaying your content. Whether you're designing a new digital signage system or developing a new medical device, this display will provide the perfect platform for showcasing your ideas.
• Designed to withstand extreme temperatures, the 4.3 Inch LCD Display has a storage temperature range of -30+85, ensuring that it can operate effectively in a variety of environments. This makes it an ideal choice for applications that require reliable performance in harsh conditions.
• This product is widely used in industrial medical equipment displays, industrial endoscopes, home appliance panel displays, handheld PDAs, access control and security equipment, attendance equipment, 3D printers, and instrumentation fields.

Features:

• Product Name: 4.3 Inch LCD Monitor
• Drive element: TFT Active Matrix
• Lumens degrees: 450cd/m²
• Active area: 95.04(H) * 53.856(V)
• Number of pixels: 480*3RGB(H)X272(V)
• Lcm pin n count: 40PIN

• Product Name: 4.3 Inch TFT Display
• Drive element: TFT Active Matrix

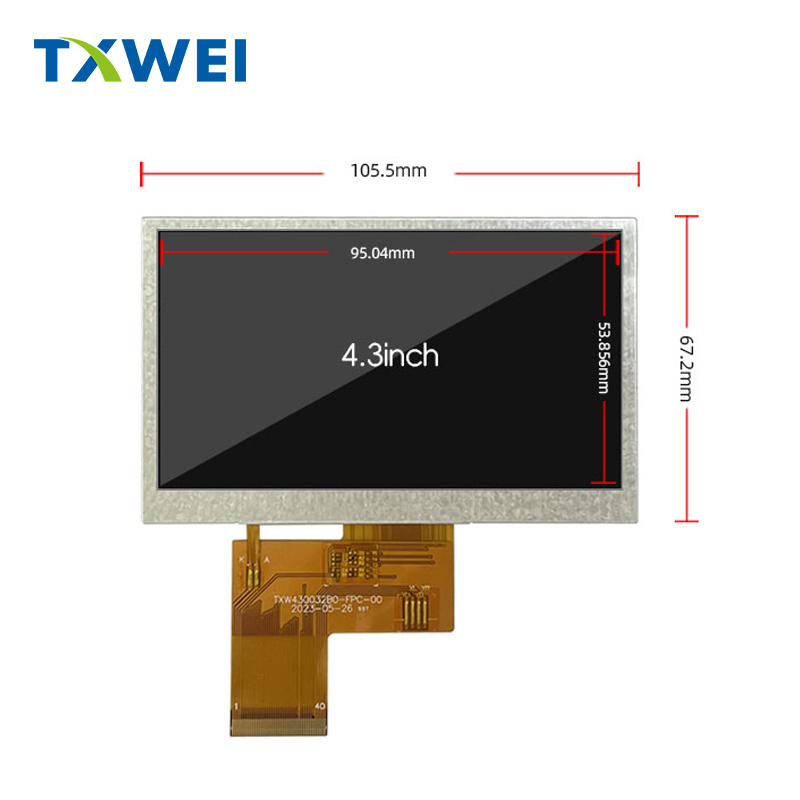

Outline Drawing

Technical Parameters:

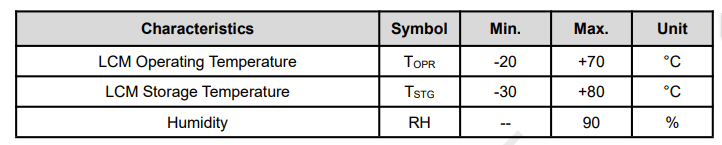

Absolute Maximum Rating

TET features:
Structure: TFT PANNEL+IC +FPC+BL

ALL O'CLOCK Type LCD

480 dot-segment and 272dot-common outputs

16.7M Color can be selected by software

White LED back light

24bit RGB Interface

Scanning mode: forward scanning

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 10 white LEDs. The characteristics of the back-light are
shown in the following tables.

Note:
(1) The “'LED life time" is defined as the module brightness decrease to 50% of original brightness atIL=20mA/LED. The LED life time could be decreased if operating l is larger than 25mA/LED

If you need customization, please contact us. Thank you
