Product Description:

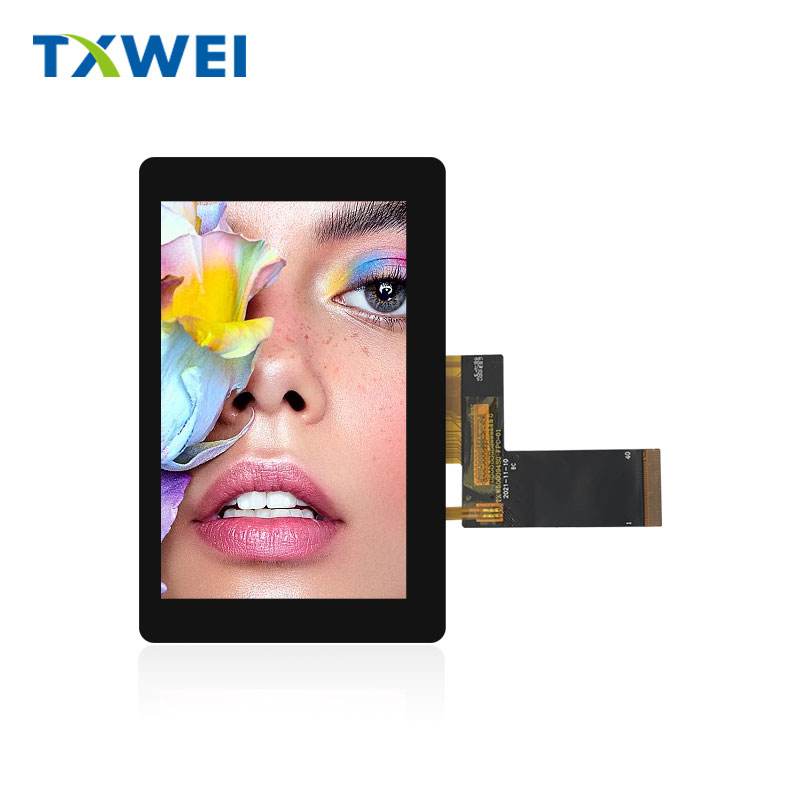

1. TXW500094S0 is a 5.0-inch 16:9 ratio full-color TFT LCD display with a resolution of up to 800 * 480, IPS full view high-definition high brightness display effect, wide temperature range of -30+85 working temperature, vibration experiment of 10G, high brightness display of 1500cd/m ².
2. This product is widely used in outdoor high brightness equipment display, electric vehicle dashboard, motorcycle dashboard display, refrigeration monitoring equipment display, etc.
3. The TFT LCD screen has a resolution of 800x480 pixels, providing you with a clear and detailed image. The mechanical outline size of the screen is 120.7x75.8x2.8 mm, making it compact and easy to integrate into any device.
4. The backlight voltage of this TFT LCD module is 16.8V, ensuring that the screen is well lit and easy to read. The backlight current is 120mA, providing a bright and clear display even in low light conditions.
5. Whether you are designing a new product or upgrading an existing one, our TFT LCD display is the perfect choice for you. With its high-quality construction and reliable performance, this 7 inch touch TFT LCD module is sure to exceed your expectations.

Features:

• Product Name: TFT LCD Module
• Number of pixels: 800*480
• Drive element: TFT Active Matrix
• Viewing direction: ALL O’CLOCK
• Backlight current: 120mA
• LCM interface: RGB 24 BIT Interface

This TFT LCD Module is a custom tft display with high resolution and TFT Active Matrix drive element. It has a viewing direction of ALL O’CLOCK and a backlight current of 120mA. The LCM interface is RGB 24 BIT Interface, making it compatible with various systems. With 800*480 pixels, this tft lcd is perfect for displaying clear and vibrant images. It can also be used as a tft touch display with the addition of a touch panel.

Technical Parameters:

Applications:

With its high resolution and brightness, TXWEI TXW500094S0 is a perfect fit for various applications such as industrial equipment, medical equipment, and gaming devices. The TFT LCD module is widely used in devices that require high-quality displays such as GPS devices, digital cameras, and handheld devices for its high color depth, contrast, and fast response time. It is also suitable for applications that require outdoor use due to its high luminance.

TXWEI TXW500094S0 is certified to be CE, ROHS, and FCC compliant, ensuring that it meets all the necessary safety and environmental standards. The product is packaged in a sturdy cardboard box and can be shipped to any location worldwide. The delivery time for this product is 16 days and the payment terms are flexible, including L/C, TT, and D/P.

The minimum order quantity for TXWEI TXW500094S0 is negotiable, and the price can also be negotiated depending on the quantity ordered. The product has a supply ability of 10000pcs to meet the demand of various industries.

In conclusion, TXWEI TXW500094S0 is a reliable TFT LCD module that is suitable for various applications. As one of the leading tft display manufacturers, TXWEI has ensured that this product meets all the necessary standards and requirements to provide customers with a high-quality display solution.

Customization:

This tft lcd has an active area of 108(H) * 64.8(V) and is of the Normally Black LCD type. The pixel pitch is 0.135*0.135, and the number of pixels is 800*480. It has an ALL O’CLOCK viewing direction.

Support and Services:

The TFT LCD Module product technical support and services may include:

• Product installation and setup assistance
• Troubleshooting and issue resolution
• Product repair and replacement services
• Technical documentation and resources
• Product updates and firmware upgrades
• Warranty and post-warranty support

Please note that the specific technical support and services offered may vary depending on the manufacturer and model of the TFT LCD Module product.
