| Brand Name : | TXWEI |
| Model Number : | TXW320023S0-RTP |
| Certification : | CE ROHS FCC |
| Delivery Time : | 16 |
| Supply Ability : | 10000pcs |

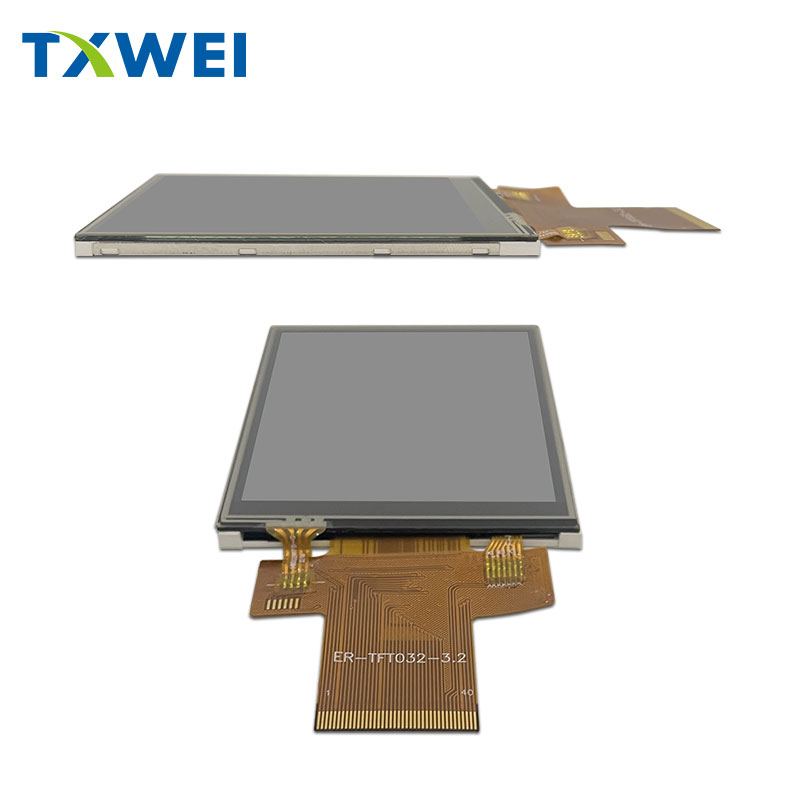

TXW320023S0-RTP is a 3.2-inch full-color TFT resistive touch LCD display screen with a resolution of 240 * 320, EWV wide-angle high-definition resistive touch screen, operating temperature of -20+70, and display brightness of 300cd/m².
This product is independently designed, developed and produced by Shenzhen Tianxianwei Technology Co., Ltd., providing professional full process technical support services, first-class production quality control, professional after-sales service guarantee, and a full set of customized development capabilities.
This product is widely used in access control door lock display, handheld display, instrument display, medical equipment display, household appliance display, industrial equipment display, etc.
The operating temperature range of -20+70 ensures that this display can withstand extreme temperatures, making it ideal for use in a variety of environments. Whether you need a display for a car, elevator, or other application, this TFT LCD Display is up to the task.
With a pixel pitch of 0.2025*0.2025, this display offers crystal-clear images and a high degree of detail. The Lumens degrees of 300cd/m² make this display easy to view even in bright lighting conditions, ensuring that your content is always visible to your audience.
Measuring 48.6*64.8 in terms of the active area, this display offers ample space for your content, allowing you to convey your message clearly and effectively. Whether you're displaying images, videos, or text, this TFT LCD Display is sure to impress.
| Product Attribute | Value |
| Model Number | TXW320023S0-RTP |
| Size | 3.2 inches |
| LCM Driver IC | ILI9341V |
| Pixel Pitch (W*H) | 0.2025*0.2025 mm |
| Active Area | 48.6*64.8 mm |
| Number of Pixels | 240*320 |
| Lcm Pin N Count | 40PIN |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Backlight Current | 120 mA |
This table provides the technical parameters for a 3.2-inch Car TFT LCD Monitor, also known as an Arduino TFT LCD Display. It has a model number of TXW320023S0-RTP and is equipped with an ILI9341V LCM Driver IC. The pixel pitch is 0.2025 x 0.2025 mm, and the active area measures 48.6 x 64.8 mm. The display has a resolution of 240 x 320 pixels and 40 Lcm pin n count. It can operate in temperatures ranging from -20°C to +70°C and can be stored in temperatures ranging from -30°C to +80°C. The backlight current is 120 mA.
1.TXWEI, a leading manufacturer of TFT LCD displays, proudly presents the TXW320023S0-RTP model. This high-quality LCD display is made in Guangdong, China, and is certified with CE, ROHS, and FCC. The minimum order quantity is only 1, and the product is packaged in sturdy cardboard to ensure safe delivery. The delivery time is 16 days, and we have a supply ability of up to 10000pcs.
2.The TXW320023S0-RTP model is perfect for various product application occasions and scenarios. For instance, it can be used as an elevator TFT LCD display. The display's mechanical outline size of 55.04*77.5*3.76mm makes it a perfect fit for elevators, and its operating temperature of -20 to +70 degrees Celsius ensures it can withstand various environmental conditions.
3.Another application scenario for the TXW320023S0-RTP model is as a car TFT LCD monitor. Its pixel pitch of 0.2025*0.2025 and drive element of TFT Active Matrix provide a clear and high-quality display for drivers and passengers. The LCM driver IC of ILI9341V ensures smooth and efficient performance.
4.Overall, the TXW320023S0-RTP model is a versatile and reliable LCD display that can be used in various settings. Whether it's as an elevator TFT LCD display or a car TFT LCD monitor, this product is sure to provide clear and efficient performance.
