2.8 inch 480x640 TFT LCD Display High Resolution IPS Type Full Viewing Angle LCM interface MIPI BIT Interface

Ask Lasest Price
Brand Name :	TXWEI
Model Number :	TXW280061B0
Certification :	CE ROHS FCC
Price :	negotiate
Delivery Time :	16
Payment Terms :	L/C TT D/P
Supply Ability :	10000pcs

Add to Cart

Product Details
Company Profile

2.8 inch 480x640 TFT LCD Display High Resolution IPS Type Full Viewing Angle LCM interface MIPI BIT Interface

2.8" TFT 480x640, TFT LCD 2.8 inch Description

This product is a high PPI resolution display screen with a diagonal size of 2.8 inches and a resolution of 480x640. The entire display screen is clearer and more refined. In addition, it adopts IPS full view display technology, making the product suitable for some high-end applications.

The TXW280061B0 TFT LCD module is a 2.8-inch diagonal portrait mode 480x640 high-resolution full-color display that supports MIPI interface. The interface is customizable. The module size of TXW280061B0 model is 55.81 (W) x83.31 (L) x 3.53 (T) mm, and the active area size is 43.20 x 57.60 mm. TXW280061B0 and ST7701 driver IC controller are integrated on the module, with a logic power supply voltage range of 2.8V to 3.3V. The typical value is 3.2V. The surface brightness is 300cd/m ² (Nits). The operating temperature of this model is -20 to 70 degrees Celsius, and the storage temperature is -30 to 80 degrees Celsius.

This product is widely used in industrial control equipment displays, instrument displays, smart home appliances, 3D printer displays, medical endoscope displays, handheld instruments, and other products.

MECHANICAL SPECIFICATIONS:

ITEM	SPECIFICATION	UNIT
DISPLAY SIZE	2.8	inch
OUTLINE DIMEMSIONS	55.8183.313.53	mm
DRIVER IC	ST7701	-
INTERFACE TYPE	MIPI	bit

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with white 6 LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics	Symbol	Min.	Type	Max.	Unit	Notes
Forward Voltage	V_F	16.8	--	19.2	V	-
Forward current	I_F	--	20	-	mA	-
Luminance(With LCD)	Lv		TBD	--	cd/m²	-
LED life time	N/A	----	30,000	--	Hr	Note 1

Note:

The “LED life time” is defined as the module brightness decrease to 50% of original brightness at I_L=20mA/LED. The LED life time could be decreased if operating I_L is larger than 25mA/LED.

Module Function Description

Pin No.	Symbol	LCM Functional
1	GND	Power Ground
2	DSI_ D0_N	MIPI-DSI Data differential signal input pins
3	DSI_ D0_P	MIPI-DSI Data differential signal input pins
4	GND	Power Ground
5	DSI_ D1_N	MIPI-DSI Data differential signal input pins
6	DSI_ D1_P	MIPI-DSI Data differential signal input pins
7	GND	Power Ground
8	DSI_CLKN	MIPI-DSI CLOCK differential signal input pins
9	DSI_CLKP	MIPI-DSI CLOCK differential signal input pins
10	GND	Power Ground
11	RESE DB15~DB0	Reset signal input terminal. Active at ‘L’.
12	TE	Tearing effect signal is used to synchronize MCU to frame memory
13	NC	NC
14	IOVCC	I/O Voltage : 1.65V ~ 3.3V
15	VCI	Power supply: 2.5V ~ 3.3V
16	TP_VDD	TP VDD PIN
17	TP_SDA	TP SDA PIN
18	TP_SCL	TP SCL PIN
19	TP_INT	TP INT PIN
20	TP_RST	TP RST PIN
21	LEDK	Power supply for backlight cathode input terminal.
22	LEDA	Power supply for backlight anode input terminal.

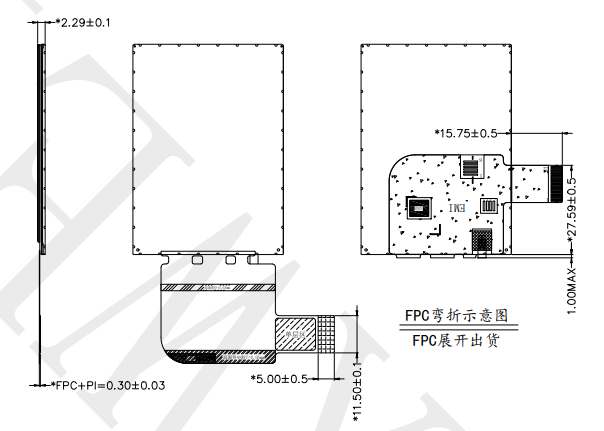

2.8" TFT 480x640, TFT LCD 2.8 inch Drawing

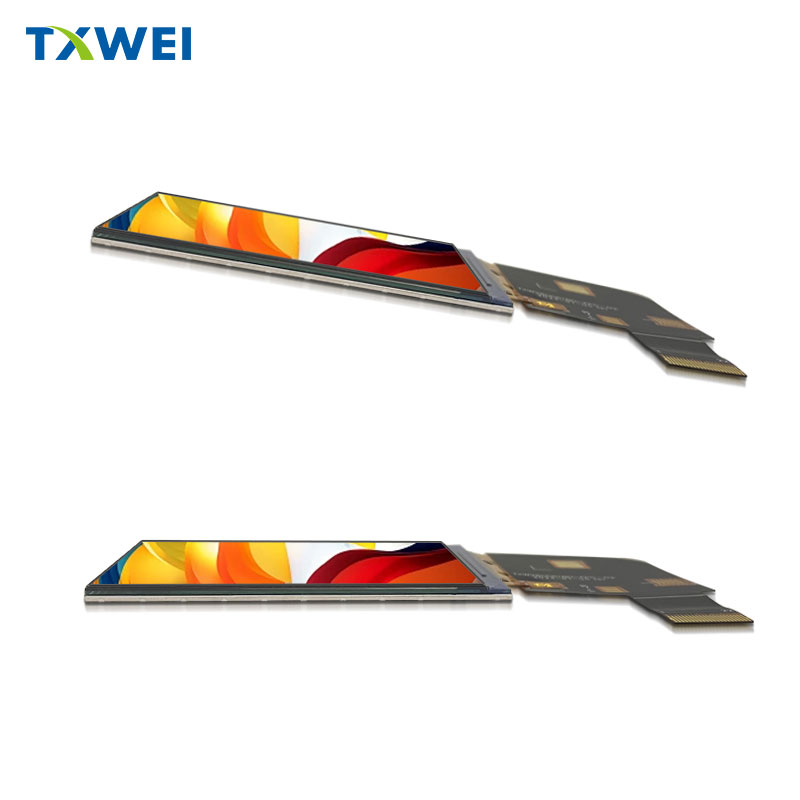

2.8" TFT 480x640, TFT LCD 2.8 inch Product Image
