Tian Xianwei TXW280085C0-CTP is a diagonal size 2.8”inch IPS type TFT LCD Display with resolution 240*320 pixels.
| Product: | 2.8"inch PCAP TFT Display |
| Resolution: | 240*320 |
| Driver IC: | ST7789V |
| Connection: | Plugging |
| Interface: | MCU 8/16 BIT Interface |
| Touch Screen: | With Capacitive Touch Screen |
| Viewing Direction: | IPS All Viewing Angles |
| Pin Number: | 39 Pins |
| Surface Luminance: | 300 Cd/m² (nits) |
| LED Lifetime: | 30,000 Hours |
| Operating Temperature: | -20 To 70 °C |
| Storage Temperature: | -30 To 80 °C |
| Backlight Supply Current: | 80 MA |
| Backlight Color: | White |
| Backlight Supply Voltage: | 2.8-3.3V |
| Certificate: | ISO9001:2015 / ISO1400:2015 |
| Compliance: | Rohs & CE &FCC Reach Compliant |

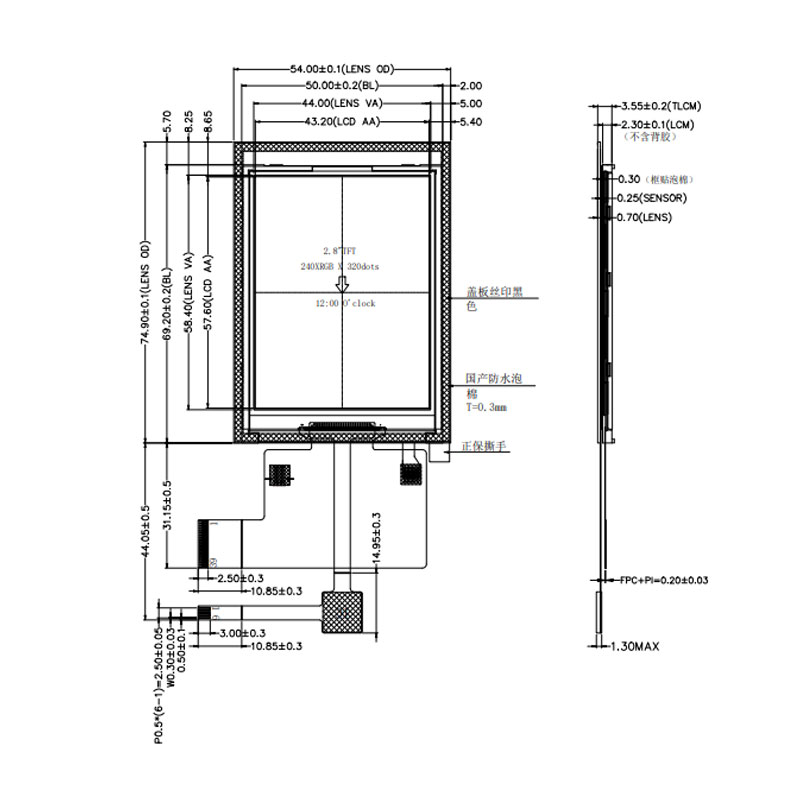

PCAP TFT Display 2.8 Inch, 2.8 Inch TFT LCD MCU 8/16 Interface IPS Capacitive Touch Screen Product Drawing
Absolute Maximum Rating
| Characteristics | Symbol | Min. | Max. | Unit |
| LCM Operating Temperature | TOPR | -10 | +60 | °C |
| LCM Storage Temperature | TSTG | -20 | +70 | °C |
| TP Operating Temperature & Humidity (20% ~ 90%RH) | TOPR | -10 | +60 | °C |
| TP SStorage Temperature & Humidity (20% ~ 90%RH) | TSTG | -20 | +70 | °C |
| Humidity | RH | - | 90 | % |
Back-Light Unit Characeristics
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 2.8 | - | 3.2 | V | - |
| Forward current | IF | -- | 80 | - | mA | - |
| Luminance(With LCD+CTP) | Lv | TBD | -- | cd/m2 | - | |
| LED life time | N/A | ---- | 30,000 | -- | Hr | Note 1 |
Product Image
Product Advantages
1. IPS full viewing angle(80/80/80/80). Very good viewing angle.
Perfect for different kinds of applications, regardless of putting
on top, or on the table, or used handheld, etc.
2. Excellent display performance of background color, luminance,
viewing angle, and intensity, etc.
3. Wide Temperature of Top of -20℃ to +70℃ for industrial
applications.
4. Flexible to have with or without resistive touch screen. We can
support to design customized CTP(capacitive touch panel) for
customers as well. FPC is customizable too.
5. Low-cost solution among the same kinds in the LCD industry.
6. Easy to install and easy to maintain.
