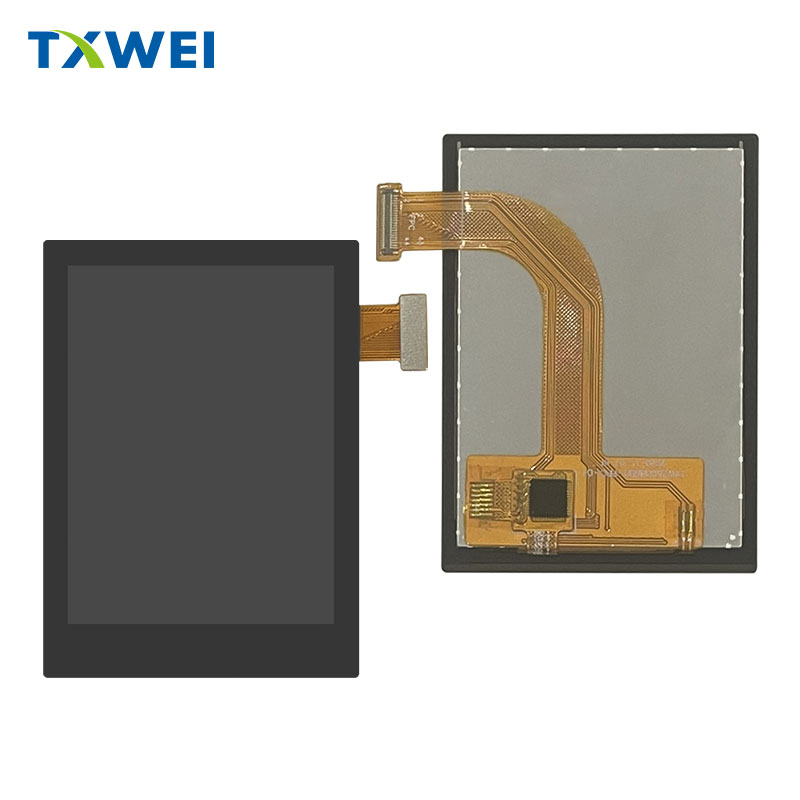

Touch Screen PCAP TFT Display 2.8" 480*640 RGB 24 BIT Interface 44 Pin
| Product: | 2.8" Inch IPS TFT Touch Screen | Resolution: | 480*640Pixels |
|---|---|---|---|
| Viewing Direction: | IPS All Viewing Angles | Touch Screen: | With PCAP Touch Screen |
| Interface: | RGB 24 BIT | Pin Number: | 44 Pins |
| Connection: | Plugging | Surface Luminance: | 400 Cd/m² |
| Operating Temp.: | -20℃ To +70℃ | Compliance: | CE&FCC & RoHS Compliant |
2.8 inch IPS TFT PCAP Touch Screen 480*640 Resolution Product Drawing
LCM Pin Descriptions
| Pin No. | Symbol | Functional |
| 1 | LEDK | POWER SUPPLY- FOR BACKLIGHT CATHODE |
| 2 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
| 3 | GND | Power Ground |
| 4 | IOVCC | Power Supply For I/O. |
| 5 | VCC | Power Supply For LCD. |
| 6 | SDI | Serial data input pin. |
| 7 | PCLK | Pixel clock signal in RGB I/F. |
| 8 | SCL | This pin is used to be serial interface clock |
| 9 | DE | Data enable signal in RGB I/F mode 1. |
| 10 | RESET | Reset signal input terminal. Active at ‘L’. |
| 11 | HSYNC | Horizontal sync. Signal in RGB I/F. |
| 12 | CS | A chip select signal |
| 13 | VSYNC | Vertical sync. Signal in RGB I/F. |
| 14-21 | B0-B7 | RGB interface data bus. |
| 22-29 | G0-G7 | RGB interface data bus. |
| 30-37 | R0-R7 | RGB interface data bus. |
| 38 | CTP_VCI | Touch panel Power supply 2.8~3.3V |
| 39 | CTP_IOVCC | Touch power Supply For I/O. |
| 40 | CTP_SDA | Touch panel I2C data |
| 41 | CTP_SCL | Touch panel I2C clock |
| 42 | CTP_INT | Touch panel interrupt output |
| 43 | CTP_RST | Touch panel reset |
| 44 | GND | Power Ground |
Real Product Demonstration
