TFT LCD Display Module 2.8" Inch 240x320 RGB MCU SPI Interface With RTP Product Introduction
| Product: | 2.8 Inch TFT LCD Display |
| Resolution: | 240*320 |
| Driver IC: | ST7789V |
| Viewing Direction: | 12:00 |
| Pin Number: | 50 Pins |
| Surface Luminance: | 400 Cd/m² |
| LED Lifetime: | 30,000 Hours |
| Touch Screen: | without Touch Panel |
| Cover Glass Dimension: | Customizable |
| Interface: | Mcu 8/16/18bit RGB 16/18bit 3/4 LINE SPI |
| Connection: | Soldering |
| Compliance: | CE&FCC & RoHS Compliant |

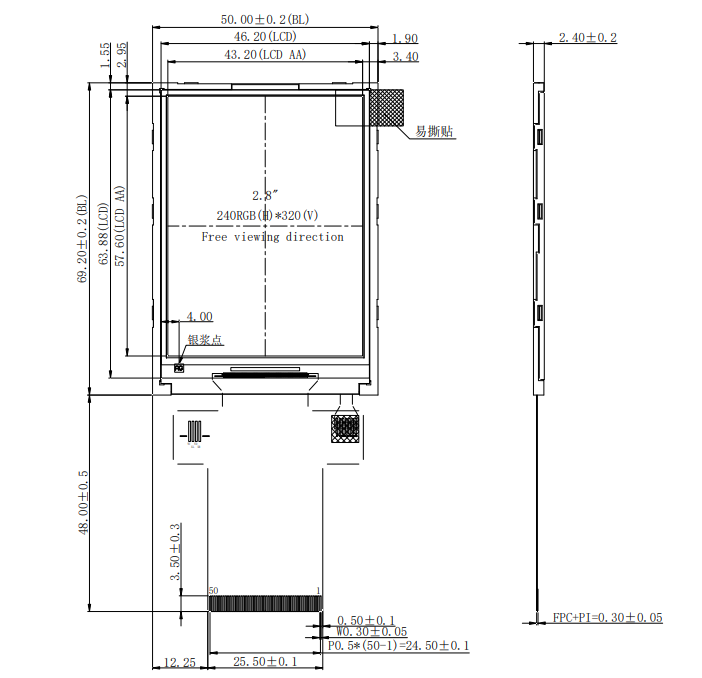

TFT LCD Display Module 2.8" Inch 240x320 RGB MCU SPI Interface Product Drawing
LCM Pin Descriptions
| Pin No. | Symbol | Functional |
| 1 | GND | Power Ground |
| 2 | XR | Touch panel coordinate in the Right |
| 3 | YD | Touch panel coordinate in the Down |
| 4 | XL | Touch panel coordinate in the Left |
| 5 | YU | Touch panel coordinate in the Up |
| 6~7 | IOVCC(1.8V) | I/O Voltage (VDDI to DGND): 1.65V ~ 3.3V |
| 8~9 | VDD(2.8V) | Power supply 2.5V ~ 3.3V |
| 10 | IM2 | The MCU interface mode select |
| 11 | IM1 | The MCU interface mode select |
| 12 | IM0 | The MCU interface mode select |
| 13 | RESET | Reset signal input terminal. Active at ‘L’. |
| 14 | CSX | A chip select signal |
| 15 | RS/SCL | Data / Command Selection pin. |
| 16 | WR/RS | Write strobe signal. |
| 17 | RD | Read data at the rising edge. |
| 18 | VSYNC | Vertical sync. Signal in RGB I/F. |
| 19 | HSYNC | Horizontal sync. Signal in RGB I/F. |
| 20 | ENABLE | Data enable signal in RGB I/F mode 1. |
| 21 | PCLK | Pixel clock signal in RGB I/F |
| 22 | SDA | SPI interface input pin. |
| 23~40 | DB0~DB17 | RGB interface or MCU parallel interface data bus. |
| 41 | SDO | SPI interface output pin. |
| 42 | GND | Power Ground |
| 43 | LEDA | POWER SUPPLY+ FOR BACKLIGHT ANODE |
| 44~49 | LEDK1~LEDK6 | POWER SUPPLY- FOR BACKLIGHT CATHODE |
| 50 | GND | Power Ground |
Back-Light Unit Characeristics
The back-light system is an edge-lighting type with 6 white LEDs. The characteristics of the back-light are shown in the following tables.
| Characteristics | Symbol | Min. | Type | Max. | Unit | Notes |
| Forward Voltage | VF | 2.8 | - | 3.2 | V | - |
| Forward current | IF | -- | 120 | - | mA | - |
| Luminance(With LCD) | Lv | TBD | -- | cd/m2 | - | |
| LED life time | N/A | ---- | 30,000 | -- | Hr | Note 1 |
Note:
The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.
TFT LCD Display Module 2.8" Inch 240x320 RGB MCU SPI Interface Product Images
